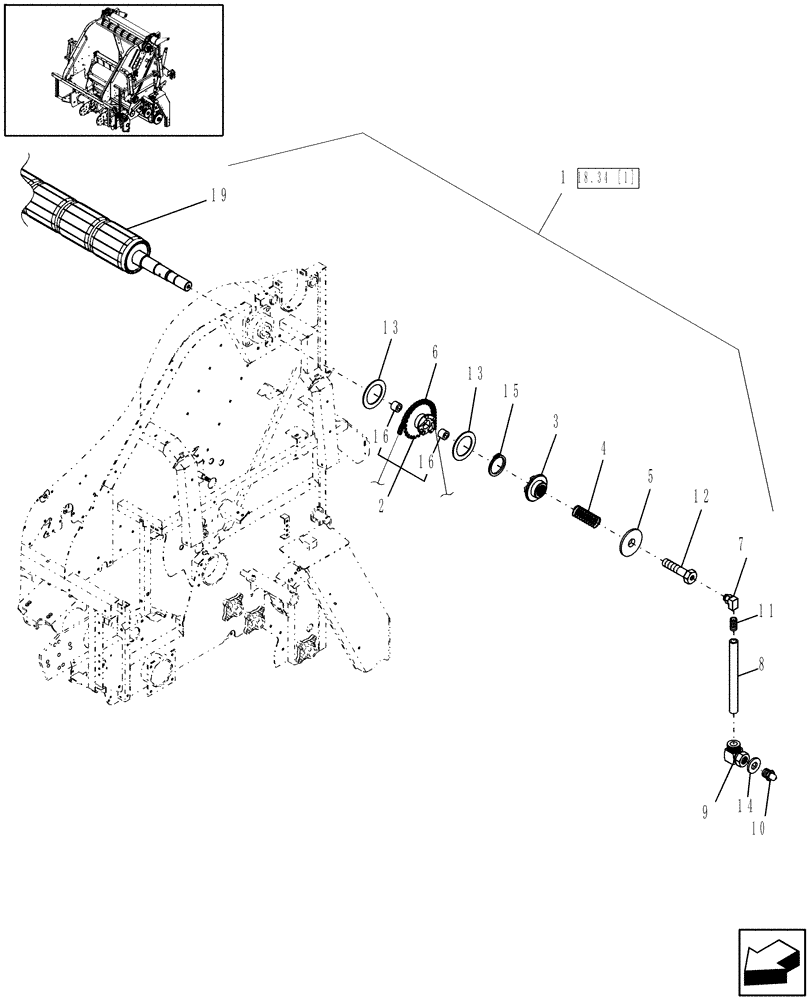

Запчасти Case IH RBX463 (18.34[2]) - DECLUTCH & DRIVE ROLL KIT, REQUIRED FOR BALERS P.I.N. Y6N016871 & AFTER (18) - ACCESSORIES

1

87397688

DIA KIT, HARVESTER

Declutch & Drive Roll, Includes: Parts Shown in Figs. 18.34-1, 18.34-2 & Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

For Europe & Australia, When Ordering 87397688 Declutch Kit, Also Order 87043956 Shield.

1шт.

2

87032323

SPROCKET

Incl 16

1шт.

3

87028608

CLUTCH

1шт.

4

86640119

SPRING,Compression, 2.438" OD x 4.5" L

1шт.

5

9829364

CAP COVER

1шт.

6

87032323

SPROCKET

1шт.

7

691873

ELBOW,90 Degree Elbow, 1/8" Male NPT x 1/8" Female NPT

Swivel, 90°

1шт.

8

86629566

PLASTIC-RUBBER TUBE,2.8mm ID x 4.8mm OD

1шт.

9

48564

90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT

1шт.

10

84303

LUBE NIPPLE,1/8"-27 NPT x 1" lg, Fem

1шт.

11

11787

FITTING,3/8"-24 Fem x 1/8" NPT

1шт.

12

86618213

SPECIAL BOLT,M12 x 40mm, Drilled

1шт.

13

9808110

WASHER,46mm ID x 60mm OD x 1.64mm Thk

3шт.

14

87016

WASHER,0.41" ID x 0.81" OD x 0.07" Thk

1шт.

15

45440

SNAP RING,#162, Ext

1шт.

16

86977429

BUSHING,44.62mm ID x 50.93mm OD x 22.2mm L

2шт.

19

87027869

ROLLER

Drive

1шт.
