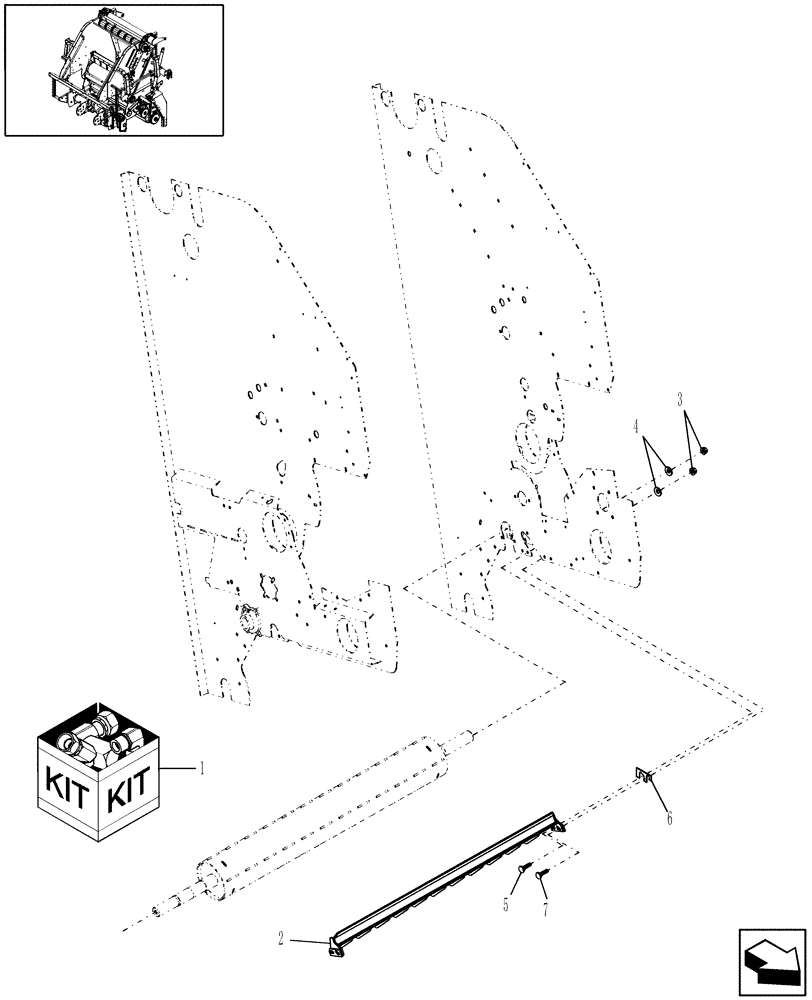

Запчасти Case IH RBX463 (18.68) - STARTER ROLL RAKE KIT (18) - ACCESSORIES

1

86978948

DIA KIT, HARVESTER

Starter Roll Rake, Includes: Ref. 2 - 6 & Installations Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

86640870

RAKE

1шт.

3

825-1410

NUT,M10, Cl 8

4шт.

4

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

5

811-10040

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8

2шт.

6

87020987

SHIM

4шт.

7

338949

CARRIAGE BOLT,M10 x 1.5 x 25mm, Cl 8.8

2шт.
