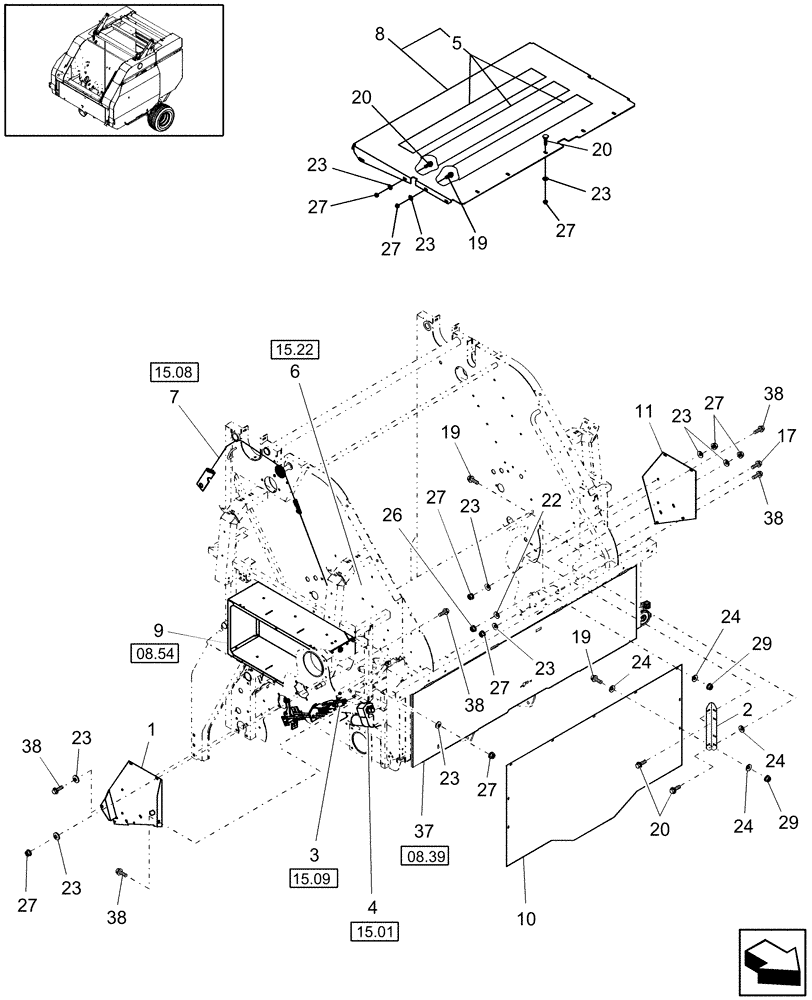

Запчасти Case IH RBX463 (15.04) - ELECTRIC TWINE WRAP, SHIELDS (15) - KNOTTER /WRAPPER

1

87054697

SHEET ASSY.

RH

1шт.

2

87046080

ANGLE

2шт.

3

0C

ORDER COMPONENTS

Counter, Electric Wrap

1шт.

4

0C

ORDER COMPONENTS

Electric Twine Wrap

1шт.

5

86643977

ANTI-SKID STRIP,4” x 40”, Black

3шт.

6

0C

ORDER COMPONENTS

Bale Size Indicator

1шт.

7

0C

ORDER COMPONENTS

Trip, Electric Wrap

1шт.

8

87017062

FLOOR

1шт.

9

0C

ORDER COMPONENTS

Twine Box

1шт.

10

87041094

SHIELD

Rubber

1шт.

11

87054696

SHEET ASSY.

LH

1шт.

17

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

19

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

12шт.

20

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

9шт.

22

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

23шт.

24

80664

WASHER,0.38" ID x 0.88" OD x 0.08" Thk

14шт.

26

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

1шт.

27

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

23шт.

29

832-46408

NUT,M8 x 1.25, Cl 8

8шт.

37

87014355

DOOR ASSY.

Electric Wrap, North America, Includes: Decals

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

37

87638744

DOOR

Electric Wrap, Europe, No Decals Included.

1шт.

38

86511841

BOLT,Flng, M8 x 1.25 x 16mm, Full Thd, Cl 8.8

6шт.
