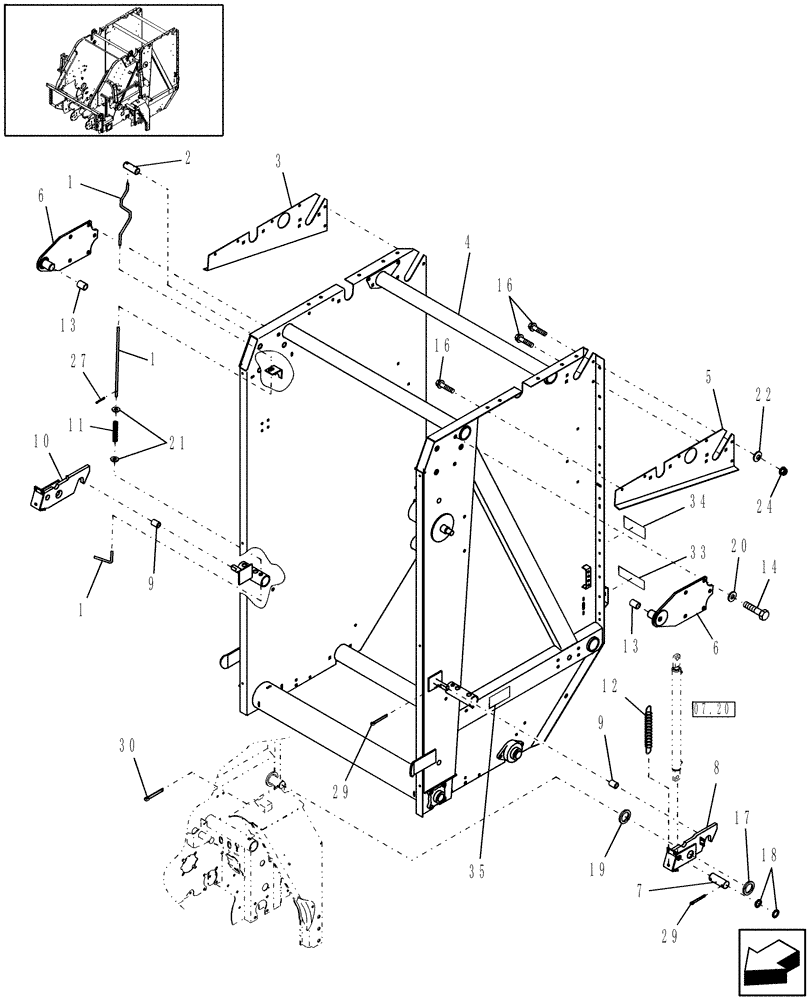

Запчасти Case IH RBX463 (14.38) - TAILGATE & TAILGATE LATCH (14) - BALE CHAMBER

1

86637214

ROD

1шт.

2

9845448

PIN,31.7mm OD x 83.7mm L

1шт.

3

86624701

SUPPORT

RH

1шт.

4

87019779

TAILGATE

North America

1шт.

4

86624584

TAILGATE

Europe & R.O.W.

1шт.

5

86624699

SUPPORT

LH

1шт.

6

86637243

PLATE ASSY.

2шт.

7

166065

PIN,25.4mm OD x 66.5mm L

Clevis, 1" x 2-5/8"

2шт.

8

86613584

LATCH

LH

1шт.

9

9829271

SPACER

2шт.

10

86624248

LATCH

RH

1шт.

11

86628108

SPRING

Compression

1шт.

12

86572215

SPRING,Extension, 25.58mm OD x 240.18mm L

Extension

2шт.

13

86514470

BUSHING,35.13mm ID x 41.38mm OD x 50.04mm L

2шт.

14

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

10шт.

15

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

8шт.

16

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

12шт.

17

86636633

WASHER,42.86mm ID x 57.15mm OD x 1.52mm Thk

1шт.

18

495-11106

WASHER,1", SAE

2шт.

19

86603125

WASHER,40.54mm ID x 60.33mm OD x 4.8mm Thk

2-3/8" OD

4шт.

20

273127

WASHER,16.67mm ID x 28.57mm OD x 7.37mm Thk

Special, 1-1/8" OD

10шт.

21

495-21044

WASHER,3/8"

2шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

24

825-1410

NUT,M10, Cl 8

12шт.

27

432-812

COTTER PIN,3/4" OAL x 1/8" W

1шт.

29

432-1228

COTTER PIN,3/16" x 1 3/4"

6шт.

30

88182

COTTER PIN,1/4" OD x 2" L

2шт.

33

86547781

REFLECTOR,RED

Red Retroreflective

2шт.

34

86631516

WARNING DECAL

English

1шт.

34

86632799

DANGER DECAL

WARNING, French

1шт.

35

86631519

DANGER DECAL

English

3шт.

35

86632802

DECAL

DANGER, French

3шт.
