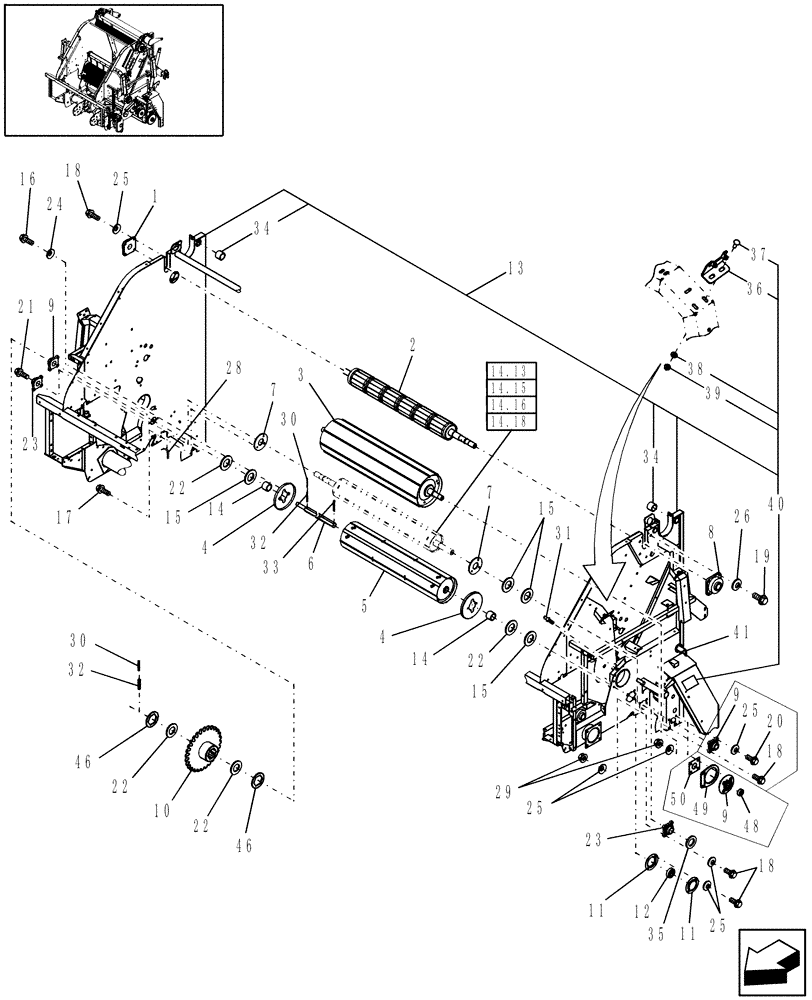

Запчасти Case IH RBX463 (14.11[2]) - MAIN FRAME & ROLLS, STUFFER FEEDER (14) - BALE CHAMBER

1

86609558

BEARING ASSY,45mm ID

1шт.

2

87027869

ROLLER

Drive

1шт.

Prior to P.I.N. Y6N016413

1шт.

2

86635441

ROLL

Drive

1шт.

P.I.N. Y6N016414 & After

1шт.

3

87660299

FEED ROLLER

Floor, Includes: Round Rods

1шт.

Prior to P.I.N. Y6N016413

1шт.

3

87398372

ROLLER ASSY.,304.5mm OD x 1293mm L

Floor, Includes: Square Rods

1шт.

P.I.N. Y6N016414 & After

1шт.

4

86628106

SHIELD

14mm Flange

2шт.

4

87025815

SHIELD

18mm Flange

2шт.

5

87374660

FEED ROLLER

Fixed Dimple, Includes: Square Rods

1шт.

6

86611130

SHAFT

1шт.

Prior to P.I.N. Y6N016413

1шт.

6

87056540

SHAFT

1шт.

P.I.N. Y6N016414 & After

1шт.

7

86636760

RING

2шт.

8

86590752

BEARING ASSY

1шт.

9

86590753

BEARING ASSY

2шт.

Prior to P.I.N. Y6N016413

1шт.

9

87027838

BEARING ASSY

40mm ID, Round

2шт.

Bearing & Housing are Select-Fit. Bearing is Not Serviced Separately

1шт.

P.I.N. Y6N016414 & After

1шт.

10

87056511

SPROCKET

28T, RC60

1шт.

11

86837676

FLANGED BEARING

4шт.

12

286909

BALL BEARING,38.11mm Hex x 84.99mm OD x 30mm W

1-1/2" Hex Bore

2шт.

13

87016738

FRAME ASSY

Main, North America, Includes: Decals

1шт.

13

87016740

FRAME ASSY

Main, Europe & R.O.W., Includes: Decals

1шт.

14

86622263

HUB

2шт.

15

86619043

WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk

Plated

5шт.

16

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

17

274247

BOLT,Hex Flg, M10 x 16mm, Stainless

4шт.

18

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

26шт.

19

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

4шт.

20

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

8шт.

21

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

22

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

.060" Thk

1шт.

23

86610638

BEARING ASSY,45mm ID

2шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

25

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

28шт.

26

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

27

87056525

WASHER

2шт.

P.I.N. Y6N016414 & After

1шт.

28

87039466

STRIPPER

2шт.

Welding Required

1шт.

29

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

4шт.

30

84024216

LOCK PIN,5mm OD x 50mm L, Slotted

1шт.

Install Ref. 30 Inside Ref. 32

1шт.

31

219-417

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

32

412689

LOCK PIN,8mm OD x 50mm L, Slotted

1шт.

33

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

35

86976003

SPACER

, Serial Range: -35

1шт.

P.I.N. Y6N016414 & After

1шт.

36

87037410

HINGE

Lower, Square-Shaped

4шт.

37

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

8шт.

38

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

39

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

8шт.

40

86631518

DANGER DECAL

English

2шт.

40

86632801

DECAL

DANGER, French

2шт.

41

86636753

PIN

Tailgate Latch Pivot

1шт.

Welding Required

1шт.

46

87056525

WASHER

2шт.

48

87384472

COLLAR

2шт.

P.I.N. Y6N016414 & After

1шт.

49

86602047

PIVOT PLATE

2шт.

P.I.N. Y6N016414 & After

1шт.

50

86602143

WEAR PLATE

2шт.

P.I.N. Y6N016414 & After

1шт.
