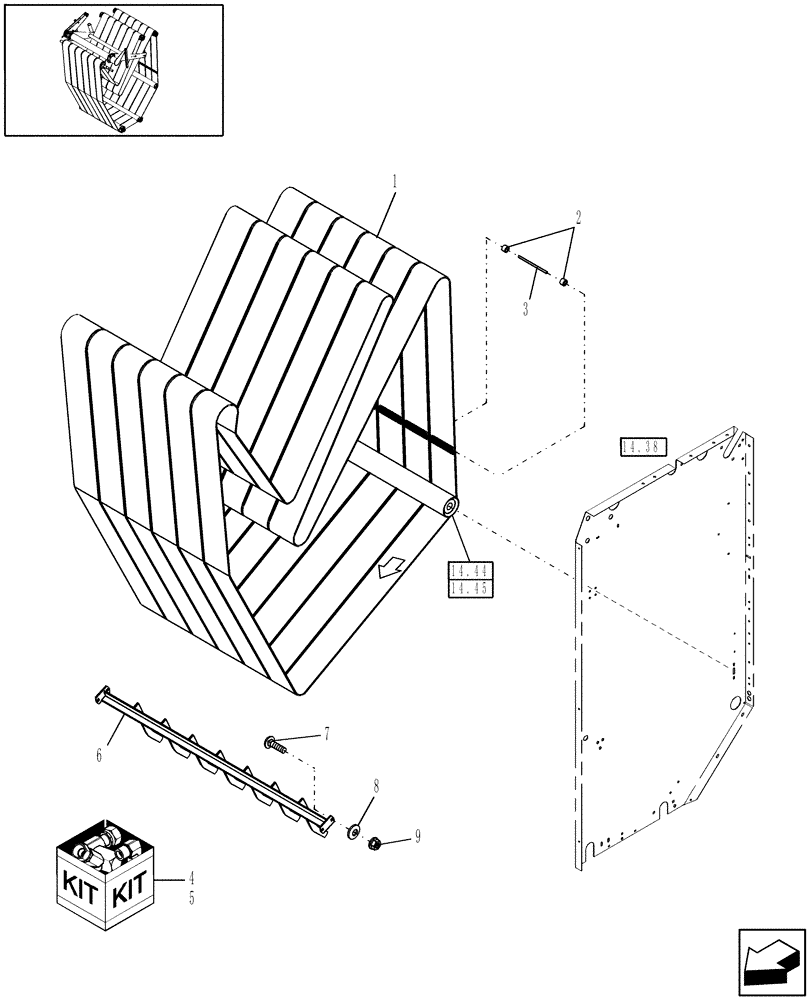

Запчасти Case IH RBX463 (14.05) - LACED CHEVRON BELT (14) - BALE CHAMBER

1

87056535

BELT,177.80 mm W x 10681.00 mm L

Laced Chevron

6шт.

2

9843258

TUBE

12шт.

3

9843257

CABLE

6шт.

4

86625980

DIA KIT, HARVESTER

Lacing Cable, Standard Duty, Includes: (18) Cable Tubes, (8) Lacing Cables & Instructions

1шт.

5

9847138

REPAIR KIT

Lacing, Includes: Box of 18 Cards, 45 Hooks per Card

1шт.

6

86637506

GUIDE

Belt, Optional

1шт.

7

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

4шт.

8

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

9

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.
