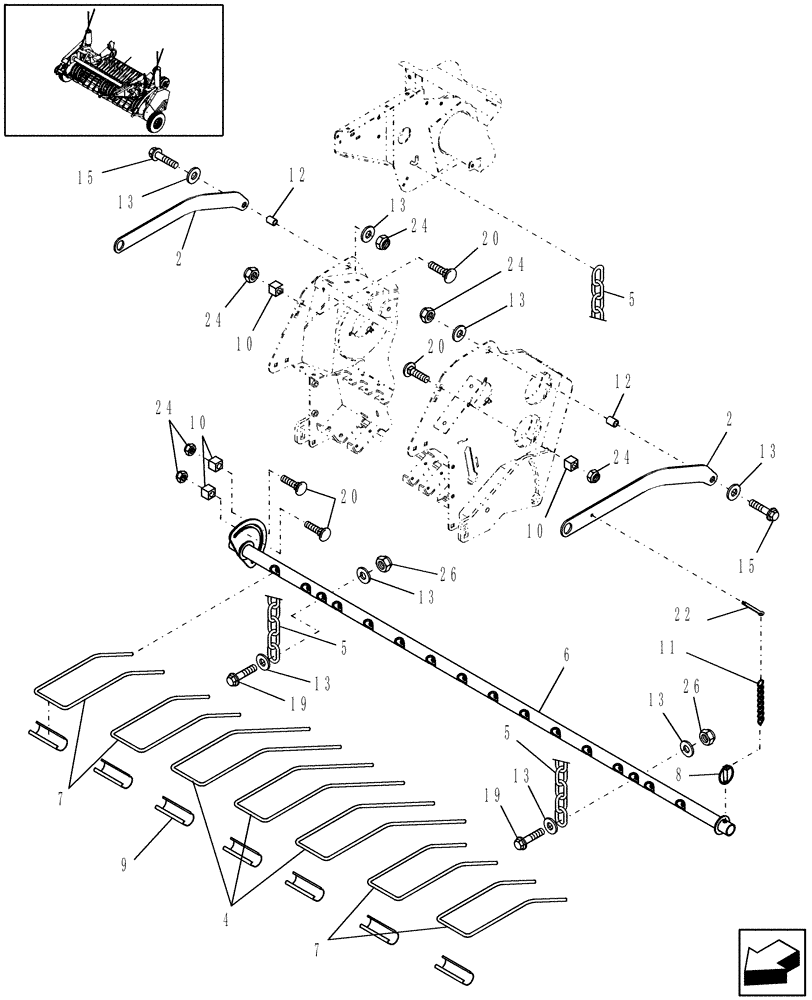

Запчасти Case IH RBX463 (13.910) - 1.8M WIDE PICKUP, WINDGUARD, ONE-PIECE, NORTH AMERICA (13) - FEEDER

2

87057818

ARM

2шт.

4

86599418

FINGER

Middle

3шт.

5

86631509

CHAIN

26-3/4"

2шт.

6

87054239

WINDGUARD

1шт.

7

86599424

FINGER

Outside

4шт.

8

87056822

PIN

2шт.

9

86621502

CLIP

7шт.

10

86603107

NUT

Square

4шт.

12

133095

SPACER,10.32mm ID x 15.85mm OD x 7.9mm L

2шт.

13

80702

WASHER,0.44" ID x 1" OD x 0.08" Thk

8шт.

15

9804262

BOLT,M10 x 39.2mm, Cl 8.8

2шт.

19

88546

BOLT,Hex, 3/8" - 16 x 2 1/4", Gr 5

2шт.

20

374892

CARRIAGE BOLT,M10 x 1.5 x 40mm, Cl 8.8

4шт.

22

80756

COTTER PIN,1/8" x 3/4"

2шт.

24

100037

LOCK NUT,M10 x 1.5, Cl 8

6шт.

26

88902

NUT,3/8"-16

2шт.
