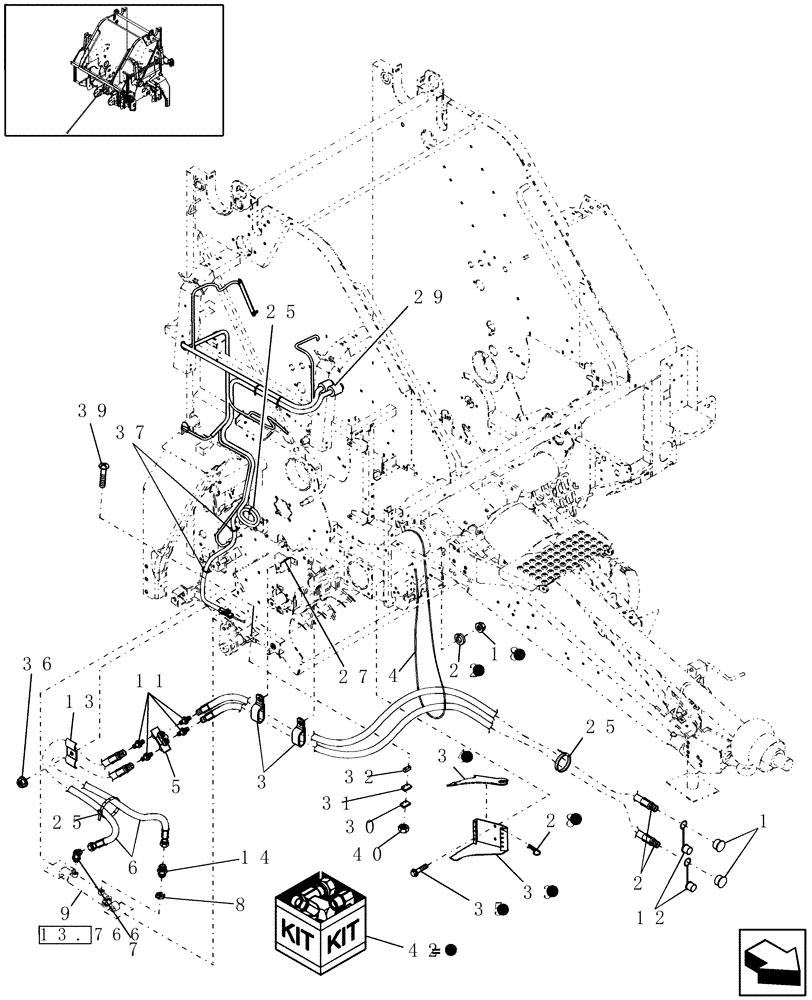

Запчасти Case IH RBX463 (13.765) - ROTOR KNIFE HYDRAULIC & ELECTRIC (13) - FEEDER

1

9801618

QUICK MALE COUPLING,1/2" - 14

Male, 1/2"-14 NPTF

2шт.

2

86643512

HOSE,9.53mm ID x 4699mm L, SAE 100R17

2шт.

3

620019

CLAMP

Double, 11/16" Dia.

2шт.

4

594116

CABLE TIE,5/16" W x 21.5" L

CABLE STRAP 5/16" x 21-1/2"

1шт.

5

85006175

HYDRAULIC VALVE

1шт.

6

86643513

HOSE,0.38" ID x 24.00", SAE 100R17

2шт.

7

330346

45 ELBOW,45 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

3/8" Tube, Includes: Ref. 10

1шт.

8

261066

ORIFICE,9/16" - 18, 0.813" Orifice

.032"

1шт.

9

87029395

CYLINDER ASSY.,Double Acting, 19.05mm Rod, 119.89mm Stroke

Rotor Knife

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Not Illustrated

1шт.

11

86900514

ADAPTER

4шт.

12

87017807

DUST CAP

Red

2шт.

13

207705

CLAMP,15.8mm ID

1шт.

14

76350

HYD CONNECTOR,9/16" - 18 ORB x 9/16" - 18 JIC

Incl Ref 10

1шт.

18

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

25

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

6шт.

27

86516805

SOFT TRIM,31-3/4" L

Edge Protector

1шт.

28

86511448

COTTER PIN,0.148" Dia x 3.31" L

9/64" x 3-5/16"

2шт.

29

86628039

WIRE HARNESS

Rotary Cutter

1шт.

30

86594422

SENSOR

1шт.

31

86642946

BAR

1шт.

32

86624468

SPACER,1.65" L x 5/16” Thk

Switch

1шт.

33

86616730

HOLDER

1шт.

34

87036001

KNIFE

Blank

15шт.

35

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

2шт.

36

832-46410

NUT,M10 x 1.5, Cl 8

1шт.

37

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

39

86900322

SCREW,Phillips Drive, Truss HD, #10 - 24 x 1-1/4", SST

Truss Hd, Stainless Steel, #10-24 x 1-1/4"

2шт.

40

86900323

NUT,#10 - 24

Lock, Washer Hd, Stainless Steel, #10-24

2шт.

42

87389729

REPAIR KIT

Dummy Knife

1шт.
