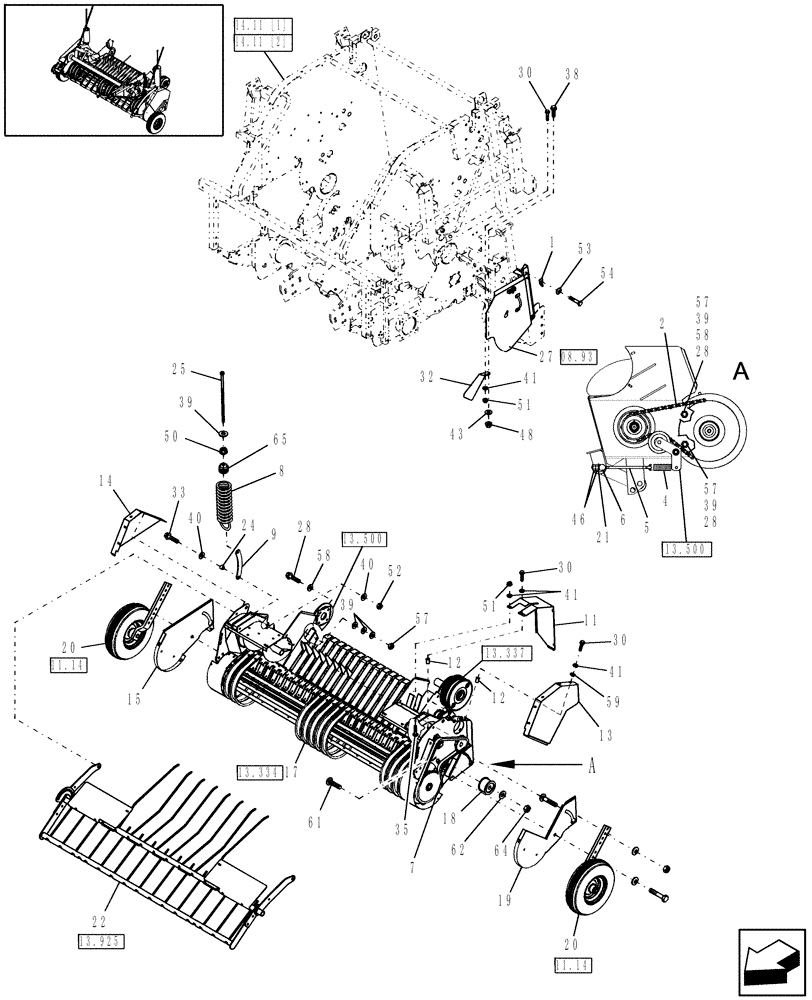

Запчасти Case IH RBX463 (13.350) - 1.8M DUAL CAM WIDE PICKUP & STUFFER FEEDER, NORTH AMERICA (13) - FEEDER

1

47325

CLIP

Snap

1шт.

2

854233

KIT,60-HE, 62 Links x 19.05mm = 1181.1mm

Roller, 60HE, 62 Pitches

1шт.

4

86566303

SPRING

1шт.

5

183356

EYEBOLT,3/8" - 16 x 10" L

G2, 3/8"-16 x 10-1/8"

1шт.

6

87050048

ROCKER

1шт.

7

80027406

CHAIN,50, 100 Links x 15.88mm = 1587.5mm

Roller, RC50, 100 Pitches

1шт.

7

86552479

CHAIN,RC50, 100 Links x 15.88mm = 1587.5mm

Roller, Standard Duty, Chrome, RC50, 100 Pitches, Includes: Connector Link 86537460

1шт.

8

86630851

SPRING

2шт.

9

87040006

LINK ASSY.

2шт.

11

87055817

SHIELD

1шт.

12

86610198

INSERT,M6 x 1

Threaded, M6

11шт.

13

86626278

SHIELD

Upper, LH

1шт.

14

87055752

SHIELD

Upper, RH

1шт.

15

86625649

SHIELD

Lower, RH

1шт.

17

0C

ORDER COMPONENTS

1.8M Dual Cam Wide Pickup

1шт.

18

86613200

IDLER,89mm OD x 47.7mm W

Eccentric, Nylon

1шт.

19

86626383

SHIELD

Lower, LH

1шт.

20

0C

ORDER COMPONENTS

Pickup Tire & Arm

2шт.

21

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

22

0C

ORDER COMPONENTS

Windguard, 1.8M

1шт.

23

86610200

THREADED INSERT,M8 x 1.25

M8

4шт.

24

705996

BUSHING

7/8" L

2шт.

25

86632865

BOLT,444.50mm

1/2"-13 x 17-1/2" L

2шт.

27

0C

ORDER COMPONENTS

Shield, Stuffer Feeder

1шт.

28

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

30

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

20шт.

31

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

32

87017232

SHIELD

1шт.

33

844-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 8.8

2шт.

35

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

38

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

1шт.

39

65319

WASHER,13.1mm ID x 25.4mm OD x 3.68mm Thk

15шт.

40

495-21044

WASHER,3/8"

4шт.

41

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

21шт.

43

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

1шт.

45

495-21038

WASHER,5/16"

10шт.

46

425-106

NUT,3/8"-16, Cl 5

2шт.

48

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

1шт.

50

425-288

FLANGE NUT,Flg, 1/2"-13, G5

2шт.

51

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

52

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

53

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

1шт.

54

493-21020

LOCK WASHER,Int Tooth, #10

1шт.

56

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

4шт.

57

832-46412

NUT,M12 x 1.75, Cl 8

4шт.

58

703960

WASHER

1-1/4" OD, Hardened

3шт.

59

495-21031

WASHER,1/4"

8шт.

60

165109

DECAL

Lube Fitting

2шт.

61

811-16050

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 50mm, Cl 8.8

1шт.

62

495-11066

WASHER,5/8", SAE

1шт.

64

832-46416

NUT,M16 x 2, Cl 8

1шт.

65

86631096

SPRING NUT

Spring

2шт.
