Запчасти Case IH RBX463 (13.345) - 1.8M DUAL CAM WIDE PICKUP & STUFFER FEEDER, NORTH AMERICA, DRY HAY (13) - FEEDER

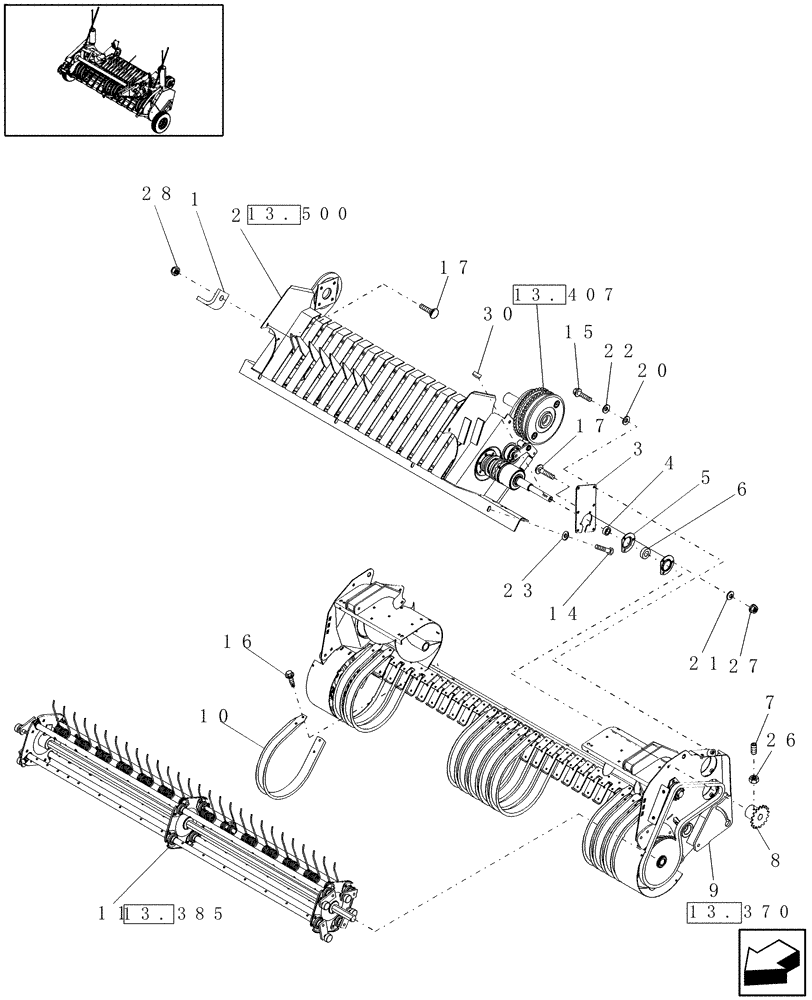

Схема запчастей Case IH RBX463 - (13.345) - 1.8M DUAL CAM WIDE PICKUP & STUFFER FEEDER, NORTH AMERICA, DRY HAY (13) - FEEDER
5
17
23
4
9
7
30
28
17
13.500
13.385
13.370
13.407
26
2
6
8
22
14
10
15
1
16
27
11
20
3
21

Артикул

Название

Примечание

Количество

1

66463

BRACKET

4шт.

2

0C

ORDER COMPONENTS

Stuffer Feeder, Dry Hay

1шт.

3

86597579

PLATE

1шт.

4

455102R21

COLLAR

Locking, Includes: Set Screw

1шт.

5

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

2шт.

6

214366C91

BALL BEARING,25.40mm ID x 52mm OD

Ball

1шт.

7

300483

SET SCREW,M10 x 25mm

2шт.

8

86624711

SPROCKET

1шт.

9

0C

ORDER COMPONENTS

1.8M Wide Pickup

1шт.

10

86643381

GUARD

7шт.

11

0C

ORDER COMPONENTS

1.8M Spider

1шт.

14

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

8шт.

15

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

6шт.

16

86545825

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 5/8"

28шт.

17

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

11шт.

20

495-21044

WASHER,3/8"

6шт.

21

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

22

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

6шт.

23

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

8шт.

26

825-1410

NUT,M10, Cl 8

2шт.

27

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

28

832-46408

NUT,M8 x 1.25, Cl 8

8шт.

31

126-24

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

Выбрано товаров: 23
