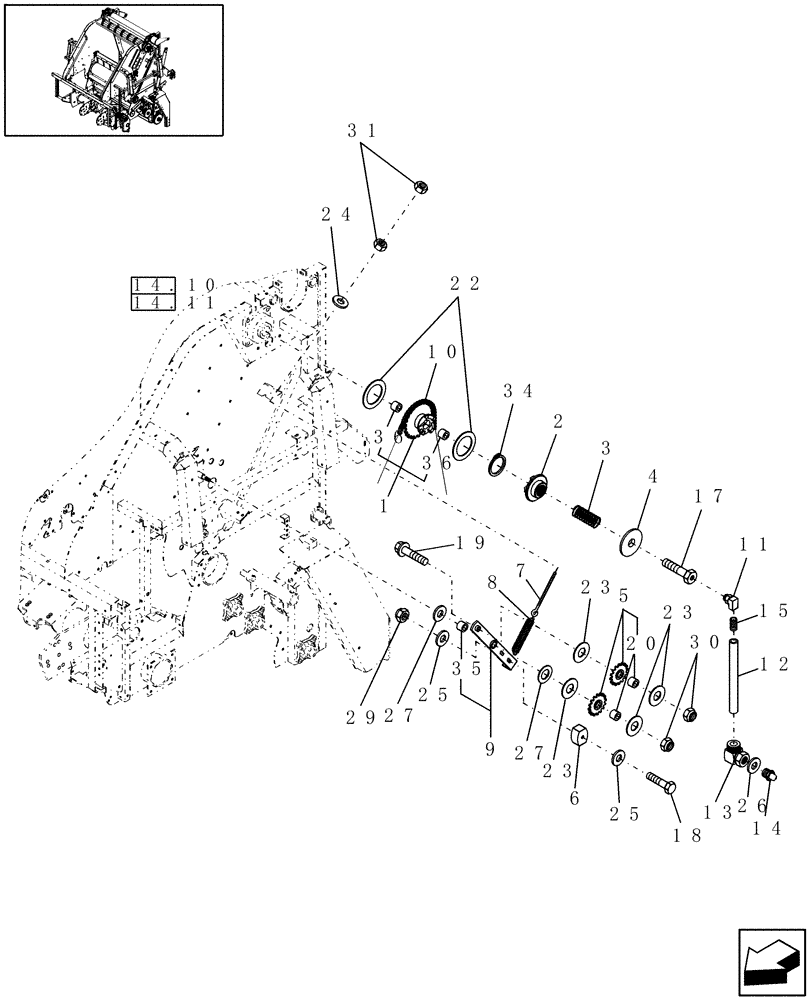

Запчасти Case IH RBX463 (12.14[1]) - APRON & CLUTCH DRIVE, LH, NORTH AMERICA, PRIOR TO P.I.N. Y6N016413 (RBX463) & ALL RBX563 (12) - MAIN FRAME

1

86601369

SPROCKET

& Sprocket, 22T

1шт.

2

9621888

CLUTCH

Half

1шт.

3

86640119

SPRING,Compression, 2.438" OD x 4.5" L

1шт.

3

86640119

SPRING,Compression, 2.438" OD x 4.5" L

RBX563

1шт.

P.I.N. Y6N016414 & After

1шт.

4

9829364

CAP COVER

1шт.

5

NS

NOT SERVICED

SPROCKET 13T, Plastic, Production Only {87050058}

2шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

5

66614

SPROCKET,RC80, 13T

13T, Steel, Service Only

2шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

6

86584050

IDLER

Plastic

2шт.

7

183356

EYEBOLT,3/8" - 16 x 10" L

G2, 3/8"-16 x 10-1/8"

1шт.

8

86512547

SPRING,Extension, 1.94" OD x 13 - 1/8" L

Extension

1шт.

9

86582659

ARM

1шт.

10

9804060

CHAIN,80, 158 Links x 25.4mm = 4013.2mm

RC80, 1"-pitch, 158 Pitches, Includes: Ref. 16

1шт.

11

691873

ELBOW,90 Degree Elbow, 1/8" Male NPT x 1/8" Female NPT

90°, Swivel

1шт.

12

87014413

TUBE,4.80 mm OD x 1850 mm L

Plastic

1шт.

Cut to Size Required

1шт.

13

48564

90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT

Male, Includes: Ref. 37 & 38

1шт.

14

219-60

LUBE NIPPLE,1/8" - 27 Female NPTF

1шт.

15

11787

FITTING,3/8"-24 Fem x 1/8" NPT

Includes: Ref. 37 & 38

1шт.

16

9620569

CONNECTING LINK,RC80, 1 Link x 25.4mm = 25.4mm L

1шт.

Not Illustrated

1шт.

17

86618213

SPECIAL BOLT,M12 x 40mm, Drilled

Cap, HH, M12 x 1.75 x 40, W/ Hole Drilled Lenghwise

1шт.

18

814-12080

BOLT,Hex, M12 x 1.75 x 80mm, Cl 8.8

2шт.

19

814-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

1шт.

20

144819C91

BEARING

2шт.

22

9808110

WASHER,46mm ID x 60mm OD x 1.64mm Thk

Hardened, M45

1шт.

23

495-21069

WASHER,5/8"

4шт.

24

495-21044

WASHER,3/8"

1шт.

25

495-21056

WASHER,1/2"

4шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

1шт.

27

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

(.060" Thk, 1-1/2" OD)

1шт.

29

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

30

832-46416

NUT,M16 x 2, Cl 8

2шт.

31

425-106

NUT,3/8"-16, Cl 5

2шт.

34

100-11162

SNAP RING,#162, Ext

1шт.

35

84019797

SLEEVE,25mm ID x 28mm OD x 25mm L

1шт.

36

86601368

BUSHING

2шт.

37

13362

SLEEVE,Compression, 3/16" Tube

1шт.

38

13367

NUT,3/8" - 24

1шт.
