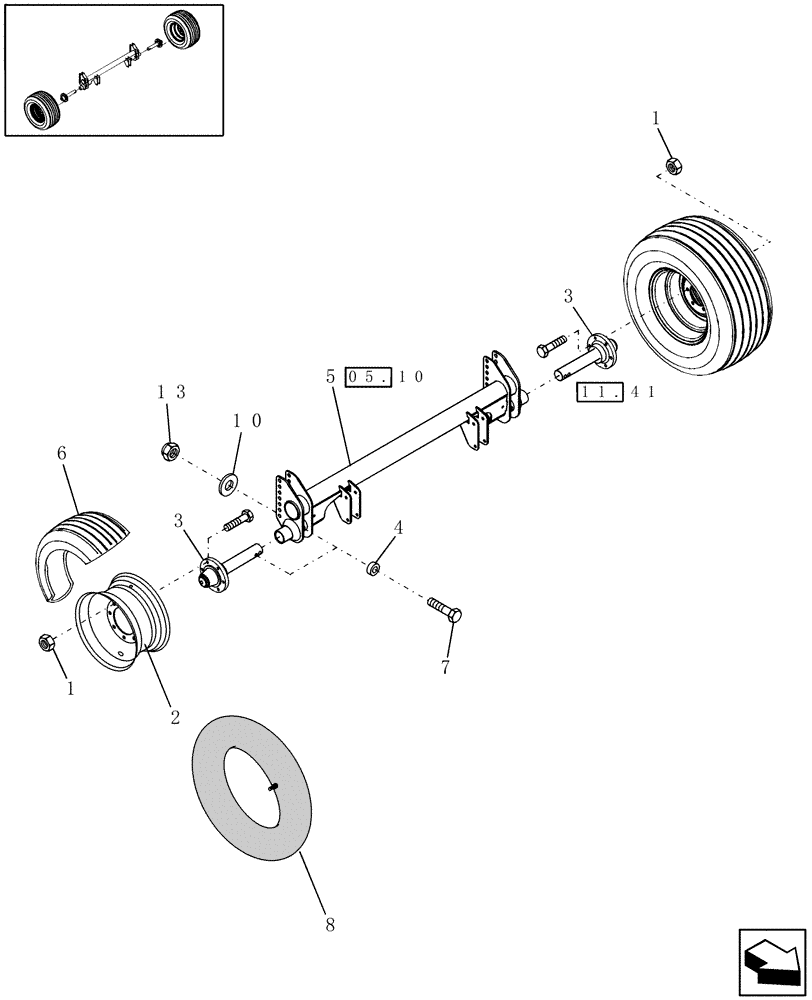

Запчасти Case IH RBX462 (11.18) - WHEELS, 10 PLY 16", NORTH AMERICA (11) - WHEELS

1

86625632

WHEEL NUT,Hex, M18 x 1.5

Wheel, M18 x 1.5 UNF

12шт.

2

87018701

WHEEL

16.00 x 17

2шт.

3

86631642

HUB

2шт.

4

86641937

SPACER,16.6mm ID x 31.75mm OD x 12.7mm Thk

2шт.

5

0C

ORDER COMPONENTS

Axle

2шт.

6

86570141

TYRE/TIRE

19.0/45 - 17, 10 Ply

2шт.

7

374889

BOLT,Hex, M16 x 100mm, Cl 8.8

2шт.

8

PL

PROCURE LOCALLY

Inner Tube for 19.00/45 - 17 Tire

2шт.

10

122432

WASHER,17mm ID x 41mm OD x 6mm Thk

Hardened, 5/8"

2шт.

13

832-46416

NUT,M16 x 2, Cl 8

2шт.
