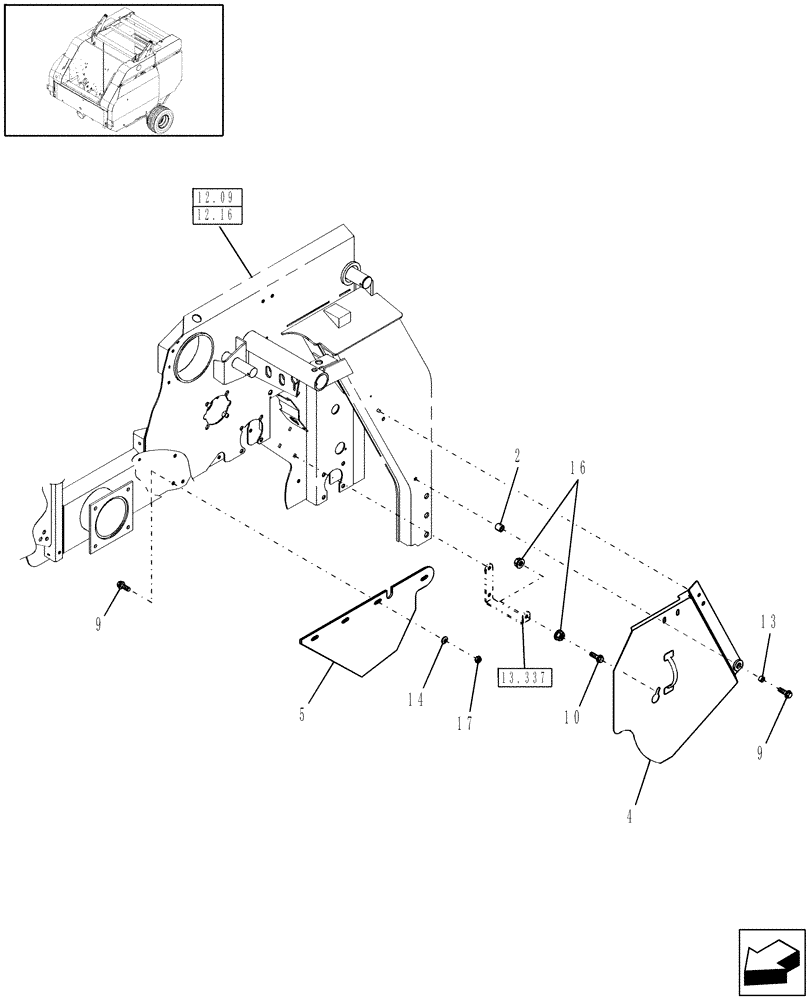

Запчасти Case IH RBX462 (08.93) - SHIELDS, STUFFER FEEDER (08) - SHEET METAL/DECALS

2

698748

BUSHING,10.3mm ID x 15.88mm OD x 9.53mm L

1шт.

4

86630176

SHIELD

LH

1шт.

5

86628547

SHIELD

Europe & R.O.W.

2шт.

Use Existing Hardware

1шт.

9

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

3шт.

10

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

1шт.

13

495-21044

WASHER,3/8"

1шт.

14

235126

WASHER,10.3mm ID x 38mm OD x 1.7mm Thk

Special

8шт.

16

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

17

832-46410

NUT,M10 x 1.5, Cl 8

8шт.
