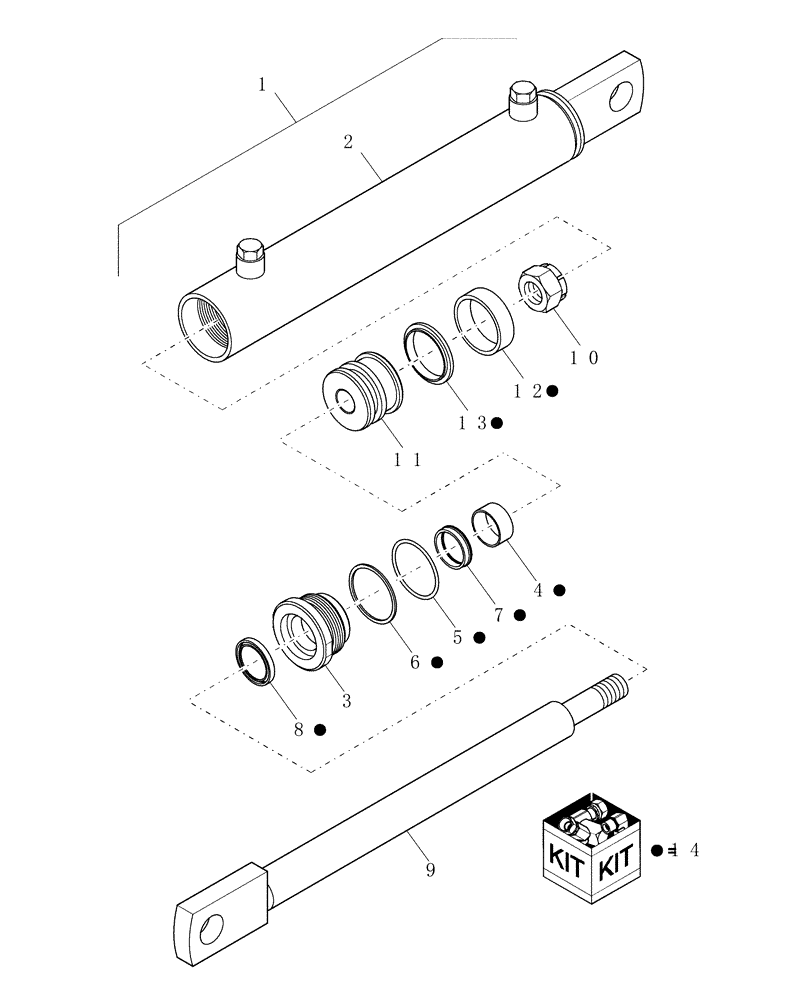

Запчасти Case IH RBX462 (07.41[2]) - HYDRAULIC CYLINDER, TAILGATE LIFT, NEW STYLE (07) - HYDRAULIC SYSTEM

1

87019624

CYLINDER ASSY.,Double Acting, 31.75mm Rod, 685.8mm Stroke

Hydraulic, Tailgate Lift

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

2

NSS

NOT SOLD SEPARAT

Cylinder Barrel

1шт.

3

87025449

HEAD

1шт.

4

9843627

WEAR RING,Split, 31.75mm ID x 34.8mm OD x 12.7mm Thk

1.250" ID x .50" Thk

1шт.

5

238-6224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 6, 90 Duro

1шт.

6

270103

BACK-UP RING,45.01mm ID x 51mm OD x 1.27mm Thk

Backup, 1.772" ID x .043" Thk

1шт.

7

86513307

SEAL,31.75mm ID x 37.85mm OD x 6.35mm Thk

1.250" ID x 1.500" OD

1шт.

8

529340

SEAL,31.75mm ID x 43.05mm OD x 4.76mm Thk

Rod Wiper

1шт.

9

87025447

PISTON ROD

1шт.

10

280724

LOCK NUT,3/4" - 16

1шт.

11

87025448

PISTON

1шт.

12

771705

RING

Wear, 2.004" ID x .50" Thk

1шт.

13

86553483

SEAL

3 Piece, Piston

1шт.

14

87025443

SEAL KIT

1шт.
