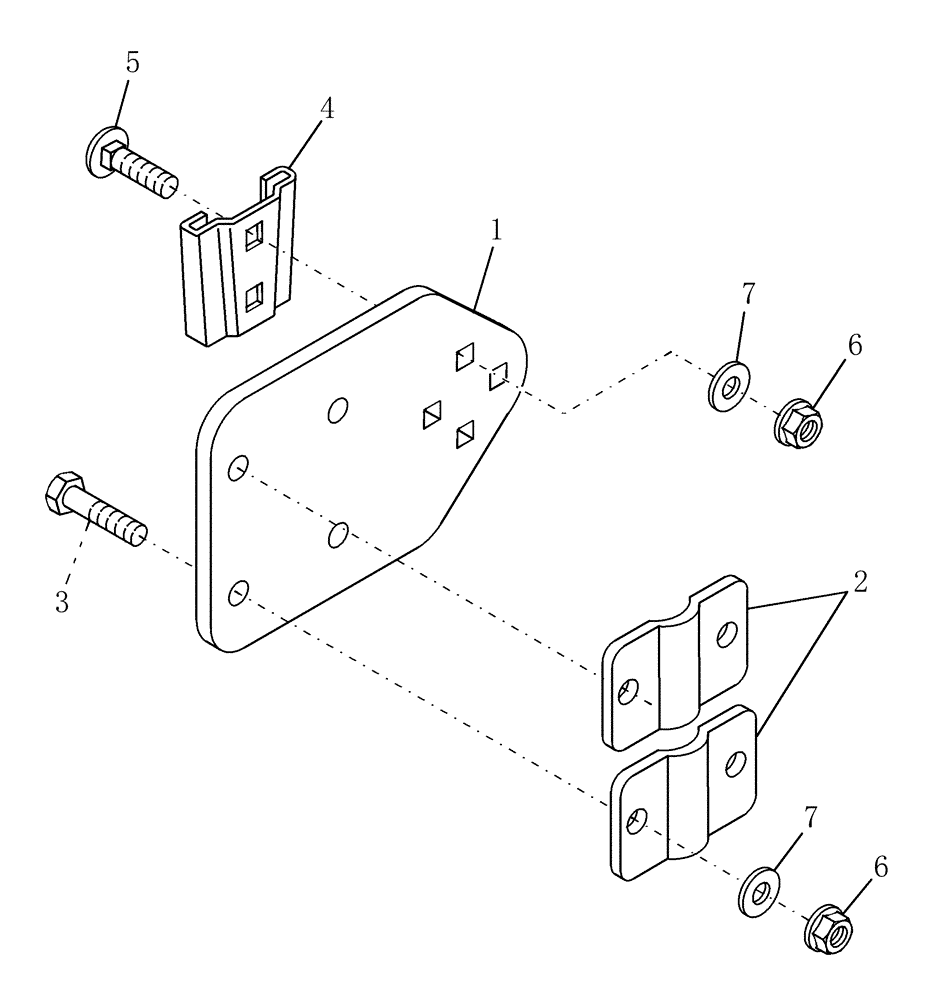

Запчасти Case IH RBX462 (06.40) - ELECTRICAL CONTROL BOX MOUNTING BRACKET (06) - ELECTRICAL SYSTEMS

1

86634706

BRACKET

1шт.

2

86635445

CLAMP

2шт.

3

844-8040

BOLT,Hvy Hex, M8 x 40mm, Cl 8.8

4шт.

4

847590

BRACKET

1шт.

5

86512420

CARRIAGE BOLT,Rnd Head, M8 x 1.25 x 20mm, Full Thd, Cl 8.8

2шт.

6

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

6шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.
