Запчасти Case IH RBX462 (06.12) - LIGHTING, EUROPE & R.O.W. (06) - ELECTRICAL SYSTEMS

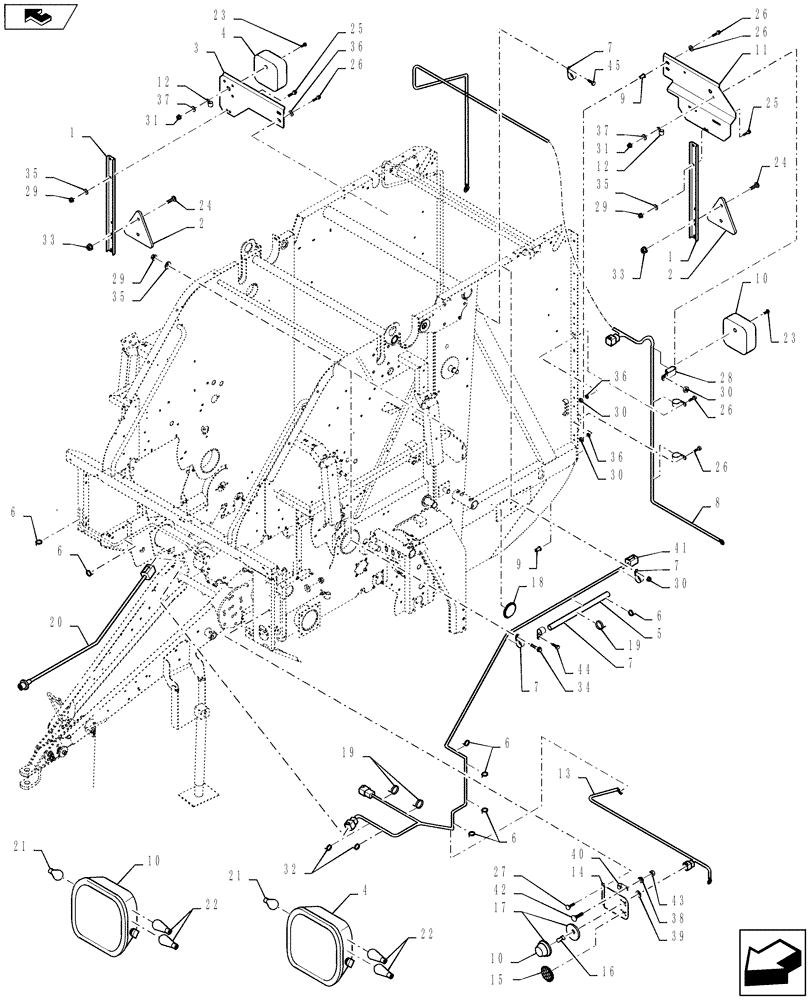

Схема запчастей Case IH RBX462 - (06.12) - LIGHTING, EUROPE & R.O.W. (06) - ELECTRICAL SYSTEMS
20
30
11
6
35
42
7
41
3
10
9
27
25
1
9
40
26
17
30
36
12
26
2
16
23
24
29
19
32
28
44
26
30
6
39
12
22
4
4
29
36
7
26
2
45
10
7
14
33
34
6
37
10
35
31
36
24
19
6
home
8
38
29
13
23
25
18
21
31
7
43
22
35
15
37
30
5
6
33
21
1
26

Артикул

Название

Примечание

Количество

1

86631464

BRACKET

2шт.

2

746294

LAMP REFLECTOR

Red

2шт.

3

86631462

BRACKET

1шт.

4

84037090

TAIL LAMP,12V, 21W, Amber/Red

Red

1шт.

5

258985

GROMMET

Plastic Tube

1шт.

6

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

13шт.

7

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

9шт.

8

86618111

WIRE HARNESS

Lighting

1шт.

9

86610201

INSERT,M8

Threaded, M8

4шт.

10

84037093

TAIL LAMP,12V, 21W, Amber/Red

Clear

1шт.

11

86631486

BRACKET

1шт.

12

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

4шт.

13

86618112

WIRE HARNESS

LH Extension

1шт.

14

86615932

BRACKET

2шт.

15

799266

LAMP REFLECTOR

White

2шт.

16

470016

BULB

12V, 10W

2шт.

17

336483

POSITION LAMP

LIGHT, TAIL

2шт.

18

435895

REFLECTOR,80mm OD, Orange

Yellow, Pickup LH & RH

4шт.

Not Illustrated

1шт.

19

529070

CABLE TIE,368.3mm L

CABLE STRAP

2шт.

20

86614960

WIRE HARNESS

Main

1шт.

21

418870

BULB,12V, 10W

12V, 10W

2шт.

22

398877

BULB,12V, 21W

4шт.

23

86614960

WIRE HARNESS

1шт.

24

84461

SCREW,Slotted Truss Hd, #10 - 24 x 5/8"

4шт.

25

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

6шт.

26

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

8шт.

27

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

4шт.

28

577927

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

3/4", 13/32" Bolt

2шт.

29

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

7шт.

30

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

9шт.

31

825-1404

NUT,M4, Cl 8

4шт.

32

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

4шт.

33

88826

LOCK NUT,#10-24, GA

4шт.

34

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

35

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

7шт.

36

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

10шт.

37

492-11008

LOCK WASHER,#8

4шт.

38

492-11010

LOCK WASHER,#10

2шт.

39

495-31022

WASHER,#10

6шт.

40

86979734

CLIP

2шт.

41

86618113

WIRE HARNESS

1шт.

42

84821

SCREW,Truss HD, #10 - 24 x 1/2"

2шт.

43

225-14110

NUT,#10-24

2шт.

44

677808

SELF-TAP SCREW,Hex Flng, 1/4" - 20 x 5/8"

HWH, 1/4"-20 x 5/8"

1шт.

45

570821

SELF-TAP SCREW,Hex Flng, 5/16" - 18 x 5/8"

Flg, USR, 5/16"-18 x 5/8"

2шт.

Выбрано товаров: 46
