Запчасти Case IH RBX462 (06.03) - ELECTRONICS, BALE SLICE™ & ROTOR CUTTER (06) - ELECTRICAL SYSTEMS

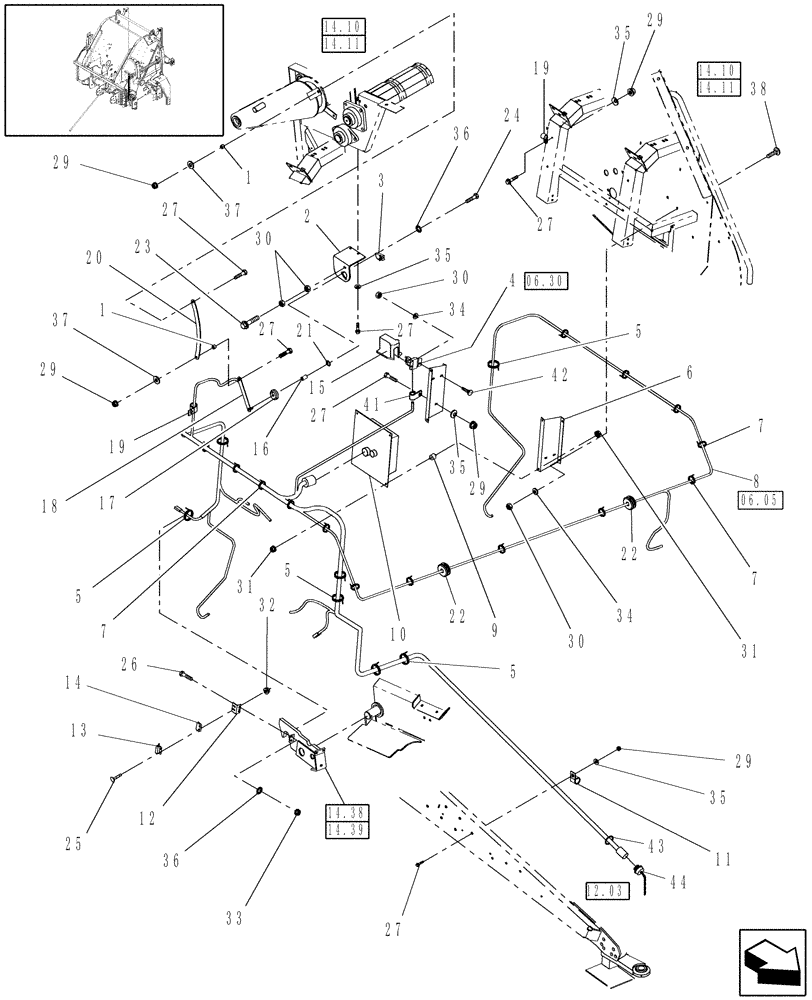

Схема запчастей Case IH RBX462 - (06.03) - ELECTRONICS, BALE SLICE™ & ROTOR CUTTER (06) - ELECTRICAL SYSTEMS
35
27
35
30
14.10
34
11
35
29
24
14.39
5
38
34
27
30
1
29
5
41
32
7
12.03
5
06.30
36
37
21
37
13
20
27
14.38
35
16
29
9
5
22
17
18
19
06.05
6
2
31
7
33
44
14.11
14
30
29
14.11
3
23
27
1
10
25
27
36
42
14.10
15
8
22
29
12
4
7
43
19
31
27
26

Артикул

Название

Примечание

Количество

1

177822

SPACER,8.33mm ID x 12.7mm OD x 4.32mm Thk

21/64" ID x .500" OD x .170" Lg.

2шт.

2

84176297

ANGLE

1шт.

3

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

1шт.

4

84226853

KIT

Relay Conversion

1шт.

5

529070

CABLE TIE,368.3mm L

CABLE STRAP

7шт.

6

86618546

SUPPORT

2шт.

7

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

18шт.

8

86622152

WIRE HARNESS

Main

1шт.

9

264795

ELECTRIC INSULATION

4шт.

10

86629248

ECU

Includes: Ref. 39

1шт.

10

87035276R

REMAN ELECT CONTROL

ECU - Bale Slice & Rotor Cutter

1шт.

10

87035276C

CORE-ELECTRONIC CONT

ECU - Bale Slice & Rotor Cutter

1шт.

11

86628564

CLAMP,31.7mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

12

86611813

ANGLE

1шт.

13

86594422

SENSOR

1шт.

14

86624468

SPACER,1.65" L x 5/16” Thk

Switch, Nylon

1шт.

15

9612631

COVER

1шт.

17

86643172

ASSEMBLY

Pivot Mount

1шт.

18

86614361

ARM

1шт.

19

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

20

86617869

LINK

1шт.

21

86613601

WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk

Urethane

1шт.

22

173011

GROMMET,1” ID x 1.750” OD x .500” Tk

1-3/4" OD x 1" ID

2шт.

23

844-6030

BOLT,Hvy Hex, M6 x 30mm, Cl 8.8

1шт.

24

10445221

SCREW,Hex, M4 x 25mm, Cl 8.8

2шт.

25

87310126

SCREW,Phillips Drive, Pan HD, #10 - 24 x 3/4", SST

Pan HD, Stainless Steel, #10-24 x 3/4"

2шт.

26

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

2шт.

27

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

6шт.

29

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

30

825-1406

NUT,M6, Cl 8

8шт.

31

231-5144

SERRATED NUT,Flg, USR, 1/4"-20

8шт.

32

86900323

NUT,#10 - 24

Lock, Washer Hd, Stainless, #10-24

2шт.

33

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

34

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

8шт.

35

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

36

493-41020

LOCK WASHER,Ext Tooth, #10

2шт.

37

495-21038

WASHER,5/16"

2шт.

38

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

4шт.

39

86529089

RELAY

1шт.

Not Illustrated

1шт.

41

86010402

CLAMP,12.7mm, Coat, 10.3mm Bolt Hole, P Type

1шт.

42

412327

CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8

2шт.

43

792026

LOCKING RING,1.06" ID x 1.25" OD x 0.13" Thk

Split, Int, 1.00"

1шт.

44

788614

PROTECTING COVER,2" OD x 1.7" Long

1шт.

Выбрано товаров: 44
