Запчасти Case IH RBX462 (01.40) - POWER TAKE OFF, 540 RPM, CUT-OUT CLUTCH, EUROPE & R.O.W. (01) - POWER TAKE OFF

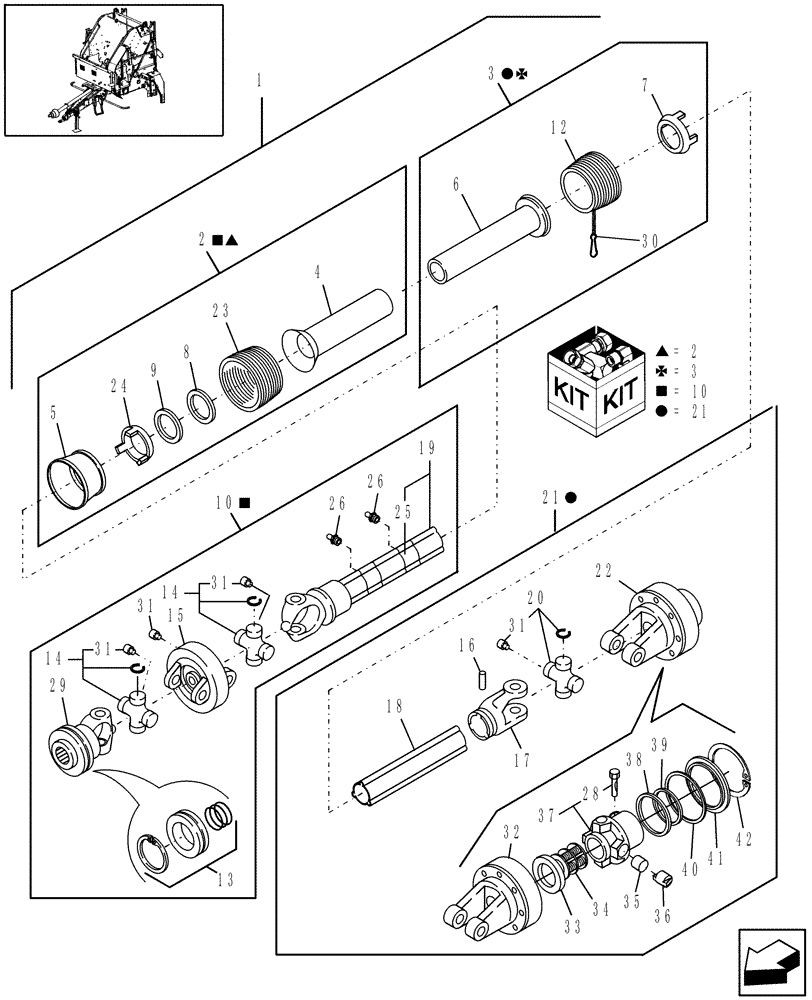

Схема запчастей Case IH RBX462 - (01.40) - POWER TAKE OFF, 540 RPM, CUT-OUT CLUTCH, EUROPE & R.O.W. (01) - POWER TAKE OFF
25
35
6
5
14
12
26
14
31
32
41
20
16
36
31
3
31
34
26
4
9
13
17
18
15
7
30
1
29
28
2
23
24
39
19
42
38
40
21
37
22
8
33
31
10

Артикул

Название

Примечание

Количество

1

86598182

SHAFT ASSY.

PTO, 540 RPM, W/ Cut-Out Clutch

1шт.

2

86979213

KIT

Front

1шт.

3

86979214

KIT

Rear

1шт.

4

NSS

NOT SOLD SEPARAT

Cone, Outer

1шт.

5

NSS

NOT SOLD SEPARAT

Shield

1шт.

6

NSS

NOT SOLD SEPARAT

Cone, Inner

1шт.

7

86979196

BEARING,86mm ID x 132mm OD x 12mm H

1шт.

8

86979199

BEARING,95.5 mm ID x 115.5 mm OD x 33 mm

1шт.

9

NSS

NOT SOLD SEPARAT

Cone

1шт.

10

86979209

PTO SHAFT

Front

1шт.

11

NSS

NOT SOLD SEPARAT

Screw

17шт.

12

NSS

NOT SOLD SEPARAT

Cover Band

1шт.

13

87018800

KIT

Ball Collar

1шт.

14

86979188

SPIDER,30.2mm Cap Dia, 92mm L, Grease-able

2шт.

15

86979189

BODY

1шт.

16

86979202

PIN

Spring

1шт.

17

86979192

YOKE

1шт.

18

86979190

TUBE,1070 mm L

Drive

1шт.

19

86979191

YOKE,1110.50 mm L

1шт.

20

86979193

SPIDER

1шт.

21

86979210

PTO SHAFT

Rear

1шт.

22

86979195

CLUTCH

Slip

1шт.

23

NSS

NOT SOLD SEPARAT

Cover

1шт.

24

86979197

SHIELD

1шт.

25

86520950

DECAL

WARNING, PTO

1шт.

Decals are Not Illustrated in this Figure. Refer to Decal Figure for Proper Decal Location.

1шт.

26

87012758

LUBE NIPPLE

LUBRICATOR

1шт.

28

86625865

KIT

Tapered

1шт.

29

86979187

YOKE

Universal Joint, 1-3/8", 6 Tooth Spline, 540 RPM

1шт.

30

86979198

CHAIN,229mm L

1шт.

31

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

4шт.

32

NSS

NOT SOLD SEPARAT

Flange Yoke

1шт.

33

NSS

NOT SOLD SEPARAT

Bushing

1шт.

34

87039013

SPRING

Pack, 1100 Nm

1шт.

34

87051166

SPRING KIT

Pack, 1700 Nm

1шт.

35

87039015

SLEEVE

3шт.

36

87039014

PLUG

3шт.

37

NSS

NOT SOLD SEPARAT

Flange Hub

1шт.

38

NSS

NOT SOLD SEPARAT

Ring

1шт.

39

NSS

NOT SOLD SEPARAT

Oil Seal

1шт.

40

NSS

NOT SOLD SEPARAT

Oil Seal

1шт.

41

NSS

NOT SOLD SEPARAT

Cover

1шт.

42

87039016

SNAP RING,M138

1шт.

Выбрано товаров: 43
