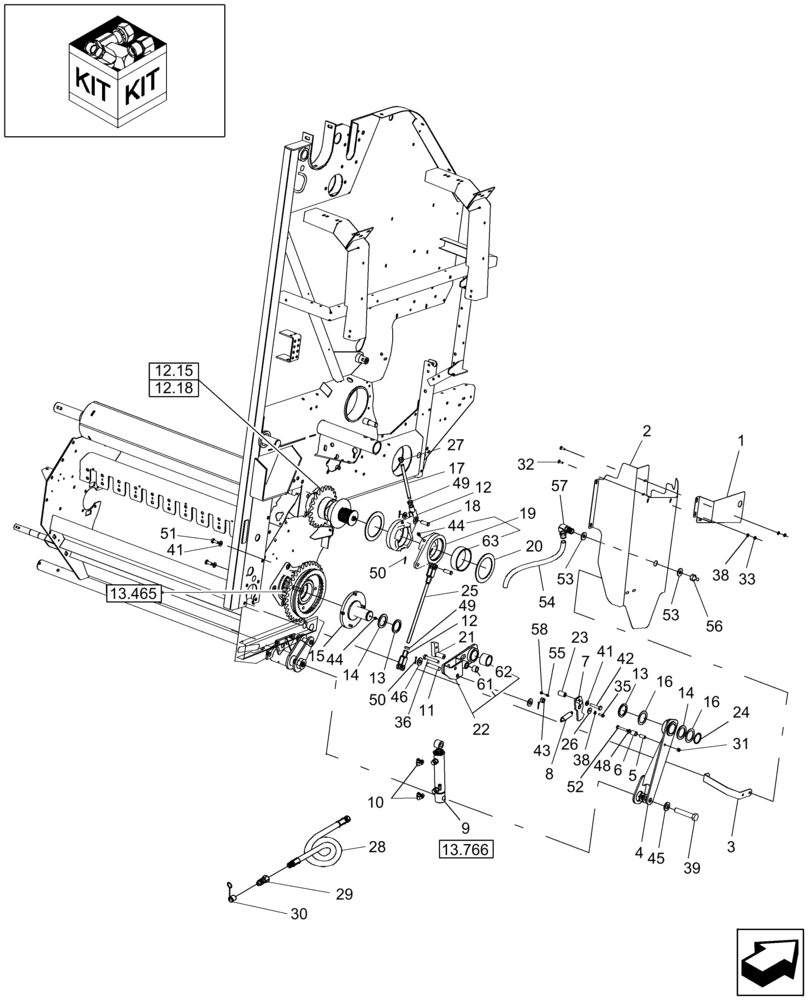

Запчасти Case IH RBX462 (18.99) - HYDRAULIC ROTOR CUTTER REVERSE KIT (18) - ACCESSORIES

87016206

DIA KIT, HARVESTER

Hydaulic Rotor Cutter Reverse, Includes: Ref. 1 - 54 & Installation Instructions

1шт.

This Kit is Required for Units with "Humped" Rotor Floor

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

87042038

DIA KIT, HARVESTER

Hydaulic Rotor Cutter Reverse, Includes: Ref. 1 - 54 & Instructions

1шт.

This Kit is Required for Units with "Flat" Rotor Floor

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

1

87026972

CAP

Starter Roll, RH

1шт.

2

87028473

SHIELD

RH Rotor

1шт.

3

87010865

STRAP

1шт.

4

87012903

SUPPORT

Includes: Bushing 65553

1шт.

Prior to P.I.N. HBJ039376, This Part is Required for Units with "Humped" Rotor Floor

1шт.

4

87039703

SUPPORT ASSY.

1шт.

P.I.N. HBJ039377 & After. This Part is Required for Units with "Flat" Rotor Floor

1шт.

5

86634543

SPACER

1шт.

6

87023405

SPACER,13.64mm ID x 19.18mm OD x 22.9mm L

1шт.

7

87014389

TRIP ARM

1шт.

8

32306

SPRING

1шт.

9

87023411

HYDRAULIC CYLINDER

1шт.

Manufacturer's Production Date Stamp - (ex. 02 03 = week / year )

1шт.

9

87029395

CYLINDER ASSY.,Double Acting, 19.05mm Rod, 119.89mm Stroke

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

10

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: O-Ring, 3/8" Tube

2шт.

11

142823

CLEVIS PIN

1шт.

12

86627455

CLEVIS,1/2" - 20

3шт.

13

72022

WASHER

2шт.

14

762217

WASHER

2шт.

15

87013009

HUB

1шт.

16

26224

WASHER

1шт.

17

86705722

THREADED ROD

1/2"-20 x 7-7/8"

1шт.

18

76877

CLEVIS PIN,12.6mm OD x 34.52mm L

2шт.

19

86705574

HUB

Outer

2шт.

20

86630617

WASHER

2шт.

21

87013010

DOG

1шт.

22

87012838

ARM

1шт.

Prior to P.I.N. HBJ039376, This Part is Required for Units with "Humped" Rotor Floor

1шт.

22

87039706

ARM ASSY.

1шт.

P.I.N. HBJ039377 & After. This Part is Required for Units with "Flat" Rotor Floor

1шт.

23

87013172

SPACER

1шт.

24

100-11175

SNAP RING,#175, Ext

1шт.

25

86705723

THREADED ROD

1/2"-20 x 11"

1шт.

26

213137

WASHER,6.76mm ID x 25.4mm OD x 3.17mm Thk

1шт.

27

29790

NUT,1/2" - 20

1шт.

28

86635085

HOSE

2шт.

29

9801618

QUICK MALE COUPLING,1/2" - 14

Male, 1/2"-14 NPTF

2шт.

30

87017808

DUST CAP

2шт.

31

832-46408

NUT,M8 x 1.25, Cl 8

Shearbolt, Floor Roll, Rotor Units

1шт.

32

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

4шт.

33

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

4шт.

35

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

1шт.

36

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

1шт.

38

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.

39

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

1шт.

41

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

5шт.

42

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

43

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

44

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

45

495-11081

WASHER,3/4", SAE

4шт.

46

495-11066

WASHER,5/8", SAE

2шт.

48

495-11034

WASHER,5/16", SAE

1шт.

49

87309

JAM NUT,Jam, 1/2"-20, G2

3шт.

50

432-816

COTTER PIN,1/8" x 1"

6шт.

51

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

52

814-8050

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

53

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

4шт.

54

87014413

TUBE,4.80 mm OD x 1850 mm L

Plastic, 3/16" x 4.9', Lube Line

4шт.

55

11787

FITTING,3/8"-24 Fem x 1/8" NPT

Includes: Ref. 59 & 60

1шт.

56

219-60

LUBE NIPPLE,1/8" - 27 Female NPTF

1шт.

57

48564

90 ELBOW,90 Degree, 11/16" x 5/8", 1/8" NPT

Male, Includes: Ref. 59 & 60

1шт.

58

86580291

ADAPTER,1/8" - 27 x 1/4" - 28

Straight

1шт.

59

13362

SLEEVE,Compression, 3/16" Tube

1шт.

Not Illustrated

1шт.

60

13367

NUT,3/8" - 24

1шт.

Not Illustrated

1шт.

61

619248

BUSHING

1шт.

62

65553

BUSHING,44.53mm ID x 47.65mm OD x 31.75mm L

1шт.

63

86577603

BUSHING,98.6mm ID x 103.18mm OD x 25.4mm L

1шт.
