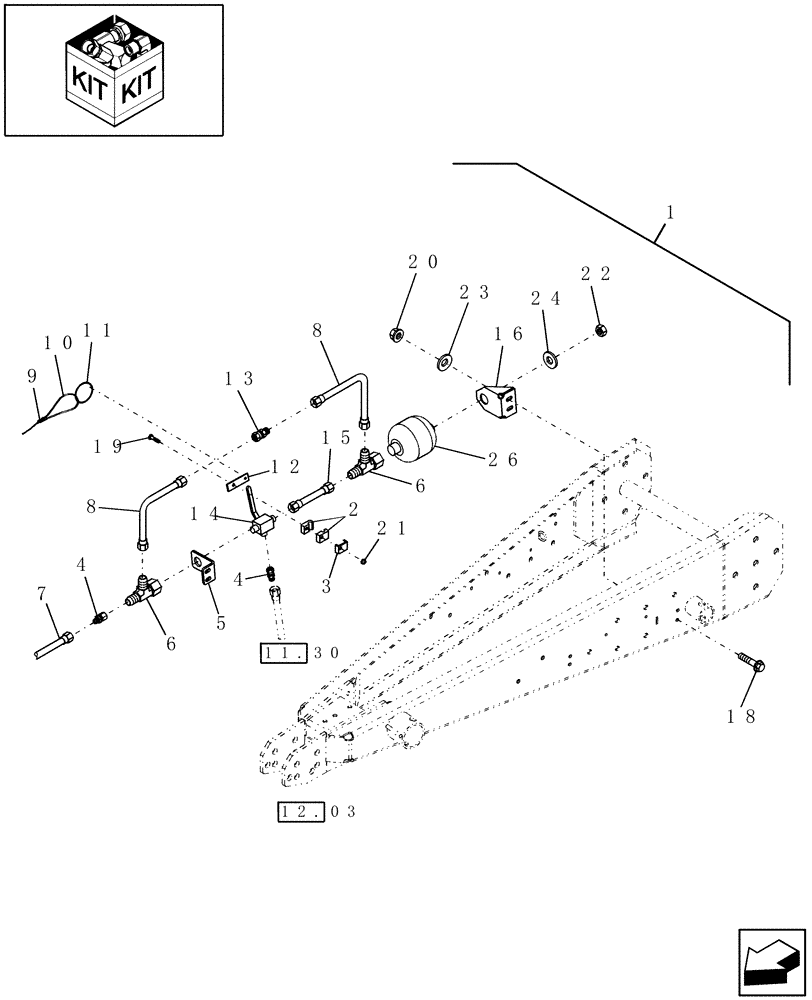

Запчасти Case IH RBX462 (18.63) - EMERGENCY BRAKE KIT (18) - ACCESSORIES

1

87013240

DIA KIT, HARVESTER

Emergency Brake, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

433008

CLAMP

2шт.

3

433101

SUPPORT

1шт.

4

84078124

HYD CONNECTOR,9/16" - 18 JIC x M16 x 1.5

3шт.

5

87018976

ANGLE

1шт.

6

734031

HYD CONNECTOR,M16 x 1.5 Male x M16 x 1.5 Male x M16 x 1.5 Female

Swivel Tee

2шт.

7

87019858

HOSE,0.38" ID x 67.00", SAE 100R1, SAE 100R17

1шт.

8

87026853

HYD TUBE,9.52 mm DIA x 69, 69 mm L

2шт.

9

84607248

WIRE CLAMP

2шт.

10

9839198

CABLE

1шт.

11

84078105

RING

1шт.

12

921153

PLATE

1шт.

13

84078038

VALVE,M16 x 1.5 x M16 x 1.5

Non Return

1шт.

14

84320121

DRAINCOCK/TAP SUPPLY,M16 x 1.5 x M16 x 1.5

1шт.

15

PL

PROCURE LOCALLY

Tube, Hydraulic

1шт.

16

87020352

SUPPORT

1шт.

18

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

4шт.

19

814-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 8.8

1шт.

20

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

21

832-46406

NUT,M6 x 1, Cl 8

1шт.

22

308823

NUT,M28 x 1.5, Cl 8

1шт.

23

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

24

140110

WASHER,31mm ID x 40mm OD x 3mm Thk

1шт.
