Запчасти Case IH RBX462 (18.57) - HYDRAULIC PICKUP LIFT KIT (18) - ACCESSORIES

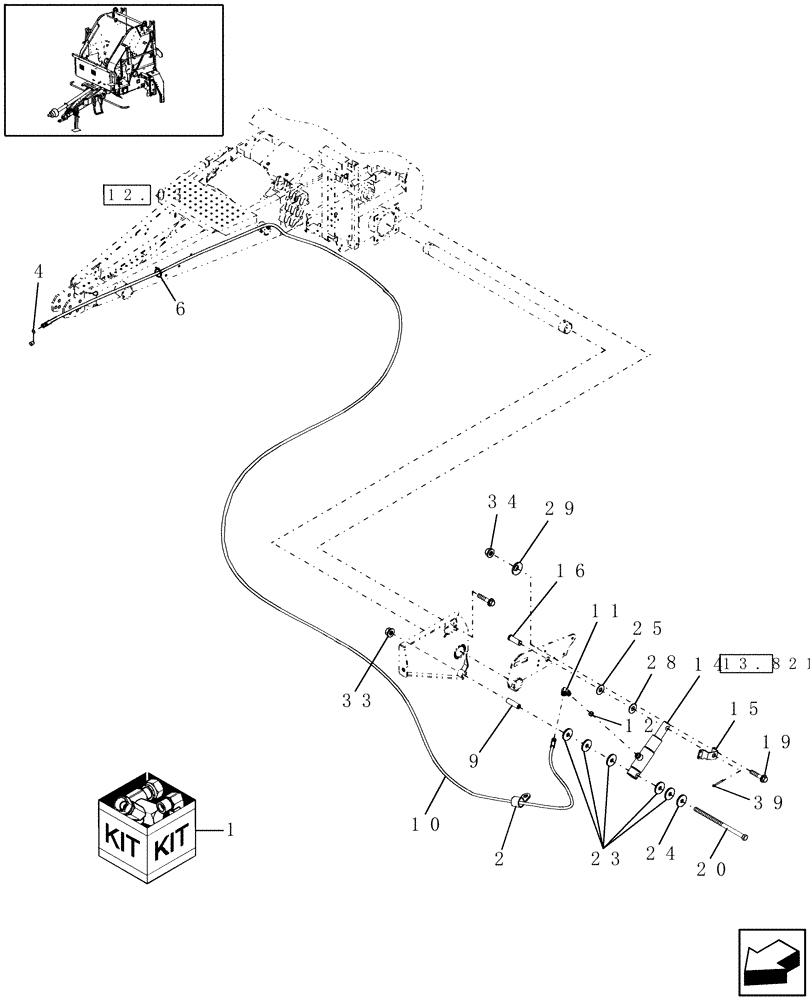

Схема запчастей Case IH RBX462 - (18.57) - HYDRAULIC PICKUP LIFT KIT (18) - ACCESSORIES
14
13.821
15
24
6
29
4
28
39
20
23
33
9
11
34
16
12
2
19
10
1
25
12.03

Артикул

Название

Примечание

Количество

1

86643770

DIA KIT, HARVESTER

Hydraulic Lift, Pickup, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

515-22159

CLAMP,5/8", Insul, 5/16" Bolt

1шт.

3

173011

GROMMET,1” ID x 1.750” OD x .500” Tk

1-3/4" OD x 1" ID

1шт.

4

87017806

DUST CAP,Green

Green

1шт.

6

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

6шт.

9

87016310

SPACER

1шт.

10

86836356

HOSE,9.53mm ID x 4673.6mm L, SAE 100R17

1шт.

11

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

Includes: Ref. 40

1шт.

12

261066

ORIFICE,9/16" - 18, 0.813" Orifice

.032"

1шт.

14

87019166

HYDRAULIC CYLINDER

Pickup Lift

1шт.

Manufacturer's Production Date Stamp - (ex. M 02 2003 = M / week / year )

1шт.

15

86705824

CHANNEL

1шт.

16

514112

PIN

1" x 2-3/4"

1шт.

19

844-8025

BOLT,Hvy Hex, M8 x 25mm, Cl 8.8

3шт.

20

814-12120

BOLT,Hex, M12 x 1.75 x 120mm, Cl 8.8

1шт.

23

86611401

WASHER,25.53mm ID x 31.24mm OD x 1.65mm Thk

1шт.

24

9511052

WASHER,13.5mm ID x 44mm OD x 4mm Thk

1шт.

25

27318

WASHER,26mm ID x 51mm OD x 1.5mm Thk

.060" Thick

1шт.

28

495-11106

WASHER,1", SAE

1шт.

29

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

3шт.

33

832-46412

NUT,M12 x 1.75, Cl 8

1шт.

34

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

3шт.

39

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

40

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

Not Illustrated

1шт.

Выбрано товаров: 26
