(18.49) - SCRAPER KIT, SERPENTINE ROLL

Запчасти Case IH RBX462 (18.49) - SCRAPER KIT, SERPENTINE ROLL (18) - ACCESSORIES

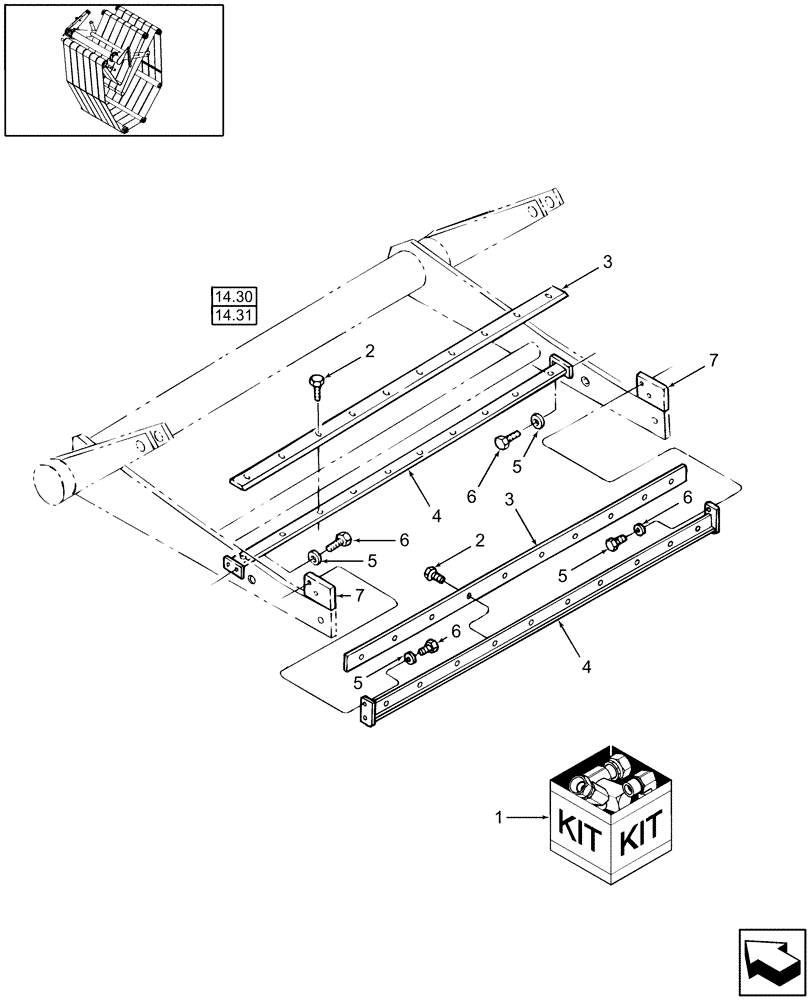

Схема запчастей Case IH RBX462 - (18.49) - SCRAPER KIT, SERPENTINE ROLL (18) - ACCESSORIES
5
6
7
4
14.31
6
1
2
14.30
5
3
5
2
7
5
6
3
6
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

86643782

DIA KIT, HARVESTER

Serpentine Scraper, Includes: Ref. 2 - 7 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

905-8020

BOLT,Hex Flg, M8 x 20mm

16шт.

3

9845575

SCRAPER BLADE

2шт.

4

87010760

ANGLE

2шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

8шт.

6

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

8шт.

7

86637019

SUPPORT

2шт.
