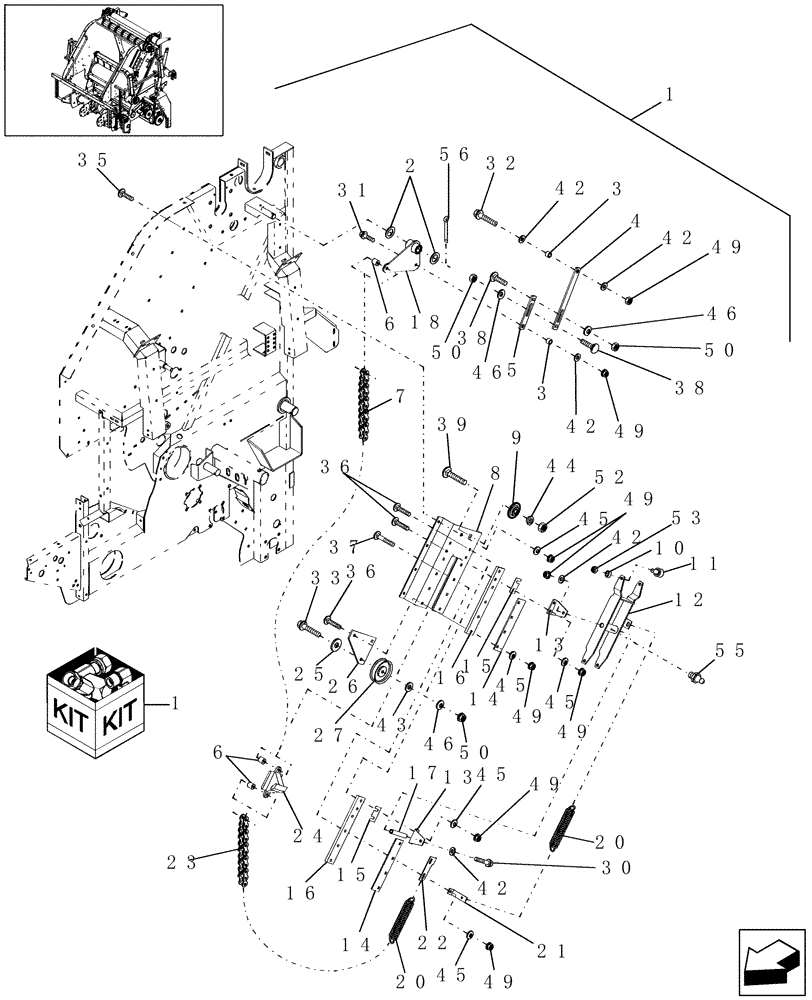

Запчасти Case IH RBX462 (18.36) - DECLUTCH KIT (18) - ACCESSORIES

1

86900310

DIA KIT, HARVESTER

Declutch, Includes: Ref. 2 - 56 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

134463

WASHER,.030" Thk

2шт.

3

768703

BUSHING,10.31mm ID x 15.88mm OD x 11.13mm L

2шт.

4

86636884

BAR

1шт.

5

86636886

BAR

1шт.

6

86636763

HUB

3шт.

7

9617629

CHAIN,41 Links x 12.7mm Pitch = 520.7mm L

ISO 1275, Riveted-Type, 41 Pitches, Includes: (2) Connector, 40 ASA

1шт.

8

87020601

CHANNEL

1шт.

9

103243

DRIVEN SPROCKET

1шт.

10

86636890

SPACER

4шт.

11

86617019

CAM FOLLOWER

Cam Follower

4шт.

12

86636981

FORK

1шт.

13

86636785

ANGLE

2шт.

14

86636784

BAR

2шт.

15

86636889

SHIM

1шт.

16

86636874

BAR

2шт.

17

86636660

TUBE,0.75" OD x 4.50" L

1шт.

18

87020603

CRANK

1шт.

20

86559592

SPRING,Extension, 0.99" OD x 6-1/4" L

Extension

2шт.

21

86636797

ANGLE

1шт.

22

86636875

BRACKET

1шт.

23

9803024

CHAIN

1шт.

24

86636998

BLOCK

1шт.

25

26312

WASHER

1шт.

26

87020602

PLATE

1шт.

27

86636724

IDLER,101.6mm Idler Dia x 115.49mm OD x 37.31mm W

1шт.

30

814-10140

BOLT,Hex, M10 x 1.5 x 140mm, Cl 8.8

1шт.

31

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

1шт.

32

844-10040

BOLT,Hvy Hex, M10 x 40mm, Cl 8.8

1шт.

33

844-12060

BOLT,Hvy Hex, M12 x 60mm, Cl 8.8

1шт.

35

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

8шт.

36

811-10040

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8

3шт.

37

811-10050

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

1шт.

38

811-12030

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 30mm, Cl 8.8

2шт.

39

280667

CARRIAGE BOLT,Sht Sq Nk, 5/8" - 11 x 2 1/4", Gr 5

1шт.

42

86511323

WASHER,10.5mm ID x 20mm OD x 2mm Thk

5шт.

43

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

1шт.

44

492-11062

BEARING WASHER,5/8"

1шт.

45

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

20шт.

46

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

3шт.

49

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

23шт.

50

9804279

FLANGE NUT,Hex, M12, Cl 8

3шт.

52

425-1010

NUT,5/8"-11, G5

1шт.

53

280474

NUT,7/16"-20, GC

4шт.

55

219-87

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

56

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

57

9828102

CONNECTING LINK

1шт.

Not Illustrated

1шт.
