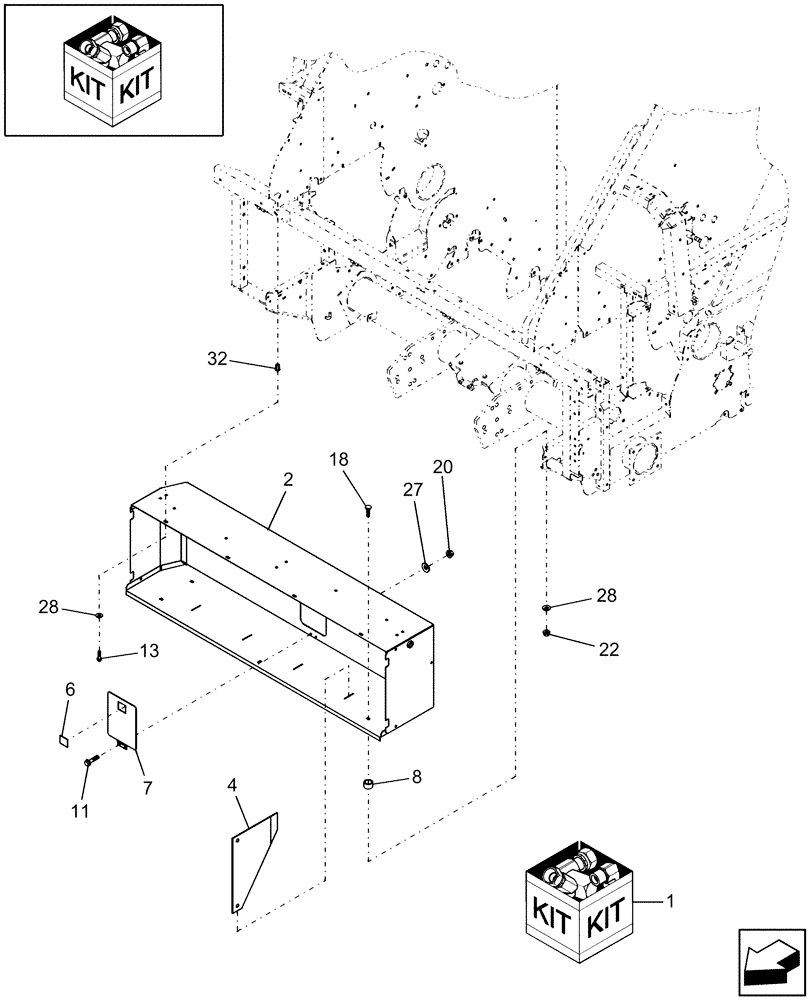

Запчасти Case IH RBX462 (18.16) - FRONT TWINE BOX KIT (18) - ACCESSORIES

1

87012396

DIA KIT, HARVESTER

Front Twine Box, Includes: Ref. 2 - 32 & Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

86979343

BOX

1шт.

4

86551339

DIVIDER

4шт.

6

632732

LATCH

1шт.

7

86643221

DOOR ASSY.

1шт.

8

86977986

WASHER

15/32" ID x 1-3/16" OD

4шт.

11

844-6016

BOLT,Hvy Hex, M6 x 16mm, Cl 8.8

2шт.

13

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

4шт.

18

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

4шт.

20

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

2шт.

22

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

4шт.

27

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

28

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

32

86610200

THREADED INSERT,M8 x 1.25

M8

4шт.
