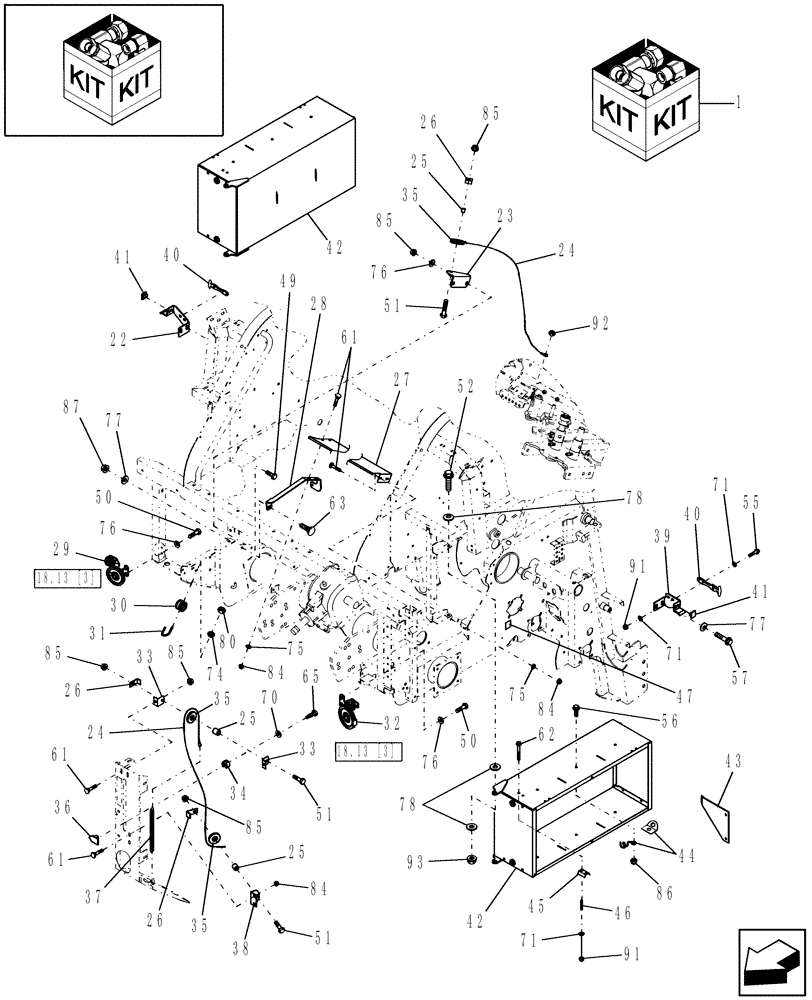

Запчасти Case IH RBX462 (18.13[2]) - TWINE CONVERSION KIT (18) - ACCESSORIES

1

87608707

CONVERSION KIT

Twine, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

22

87025227

BRACKET

RH

1шт.

23

87023414

ANGLE

1шт.

24

86629760

CABLE,1772mm L

1шт.

25

696365

SPACER

3шт.

26

689987

ANGLE

3шт.

27

86632759

SHIELD

1шт.

28

87015063

BRACKET

1шт.

29

0C

ORDER COMPONENTS

Spinner Plate, RH

1шт.

30

86543545

GUIDE

2шт.

31

28114

U-BOLT

#10-24 x 1-15/16"

2шт.

32

0C

ORDER COMPONENTS

Spinner Plate, LH

1шт.

33

689986

ANGLE

2шт.

34

9619090

CAP COVER

1шт.

35

510932

PULLEY,50.01mm OD

3шт.

36

9612212

INDICATOR

1шт.

37

86509848

SPRING

Extension

1шт.

38

86629573

ANGLE

1шт.

39

87023419

BRACKET

1шт.

40

86000448

LATCH

Rubber

2шт.

41

9617869

BUMPER,28.4mm W x 31.8mm L x 4.8mm Thk

2шт.

42

86643533

BOX

2шт.

43

86551339

DIVIDER

4шт.

44

86618572

GUIDE

Wire Style

6шт.

44

86637283

GUIDE

Formed Style

2шт.

Optional

1шт.

45

9820171

BRACKET

2шт.

46

29840

SPRING,Compression, 11.91mm OD x 25.4mm L

4шт.

47

165109

DECAL

Lube Fitting

3шт.

49

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

50

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

5шт.

51

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

3шт.

52

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

4шт.

55

844-6020

BOLT,Hvy Hex, M6 x 20mm, Cl 8.8

4шт.

56

905-8016

BOLT,Hex Flg, M8 x 16mm

6шт.

57

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

61

9706703

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 20mm, Cl 8.8, Full Thd

8шт.

62

412327

CARRIAGE BOLT,Short Sq Nk, M6 x 1 x 40mm, Full Thd, Cl 8.8

4шт.

63

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

1шт.

65

281020

SELF-TAP SCREW,Pan HD, #8 - 18 x 3/4"

1шт.

70

495-21019

WASHER,#8

1шт.

71

495-21031

WASHER,1/4"

12шт.

74

492-11010

LOCK WASHER,#10

6шт.

75

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

4шт.

76

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

6шт.

77

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

10шт.

78

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

14шт.

80

225-14110

NUT,#10-24

4шт.

84

825-2406

FLANGE NUT,M6 x 1, Cl 8.8

6шт.

85

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

7шт.

86

825-5148

SERRATED NUT,M8, Flg Ser

6шт.

87

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

2шт.

91

832-46406

NUT,M6 x 1, Cl 8

8шт.

92

832-46408

NUT,M8 x 1.25, Cl 8

1шт.

93

832-46412

NUT,M12 x 1.75, Cl 8

6шт.
