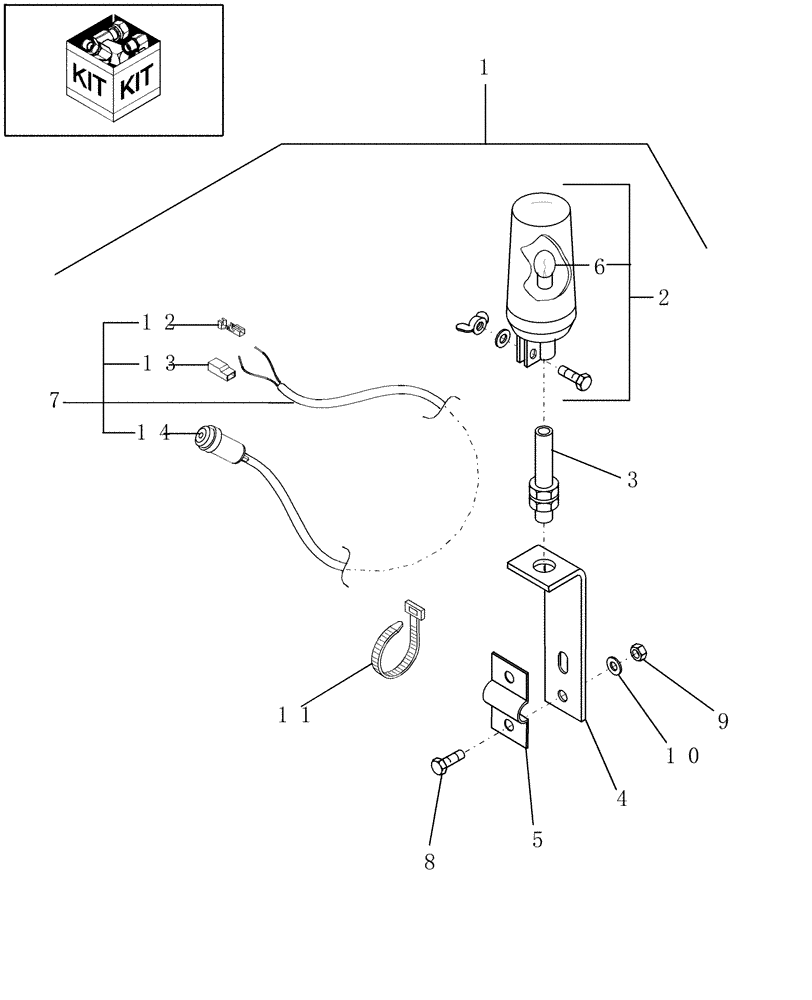

Запчасти Case IH RBX462 (18.06) - ROTATING BEACON KIT (18) - ACCESSORIES

1

87027251

DIA KIT, HARVESTER

Rotating Beacon, Includes: Installation Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

9513421

BEACON

1шт.

3

9513422

BASE

Socket

1шт.

4

87024644

ANGLE

RBX452

1шт.

4

87024646

ANGLE

RBX462

1шт.

5

87024645

CLAMP

RBX452

1шт.

5

87024647

CLAMP

RBX462

1шт.

6

442227

BULB

12V, 55W

1шт.

7

87032480

HARNESS

1шт.

8

844-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

9

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

2шт.

10

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

11

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

20шт.

12

441167

TERMINAL CONNECTOR,Tin, 2.5 - 4.0mm

Male, 2.5-4

2шт.

13

441159

CONTACT HOUSING,Female, 1 Pole

Insulator

2шт.

14

86508819

POWER SOCKET

Male, Single Pole

1шт.
