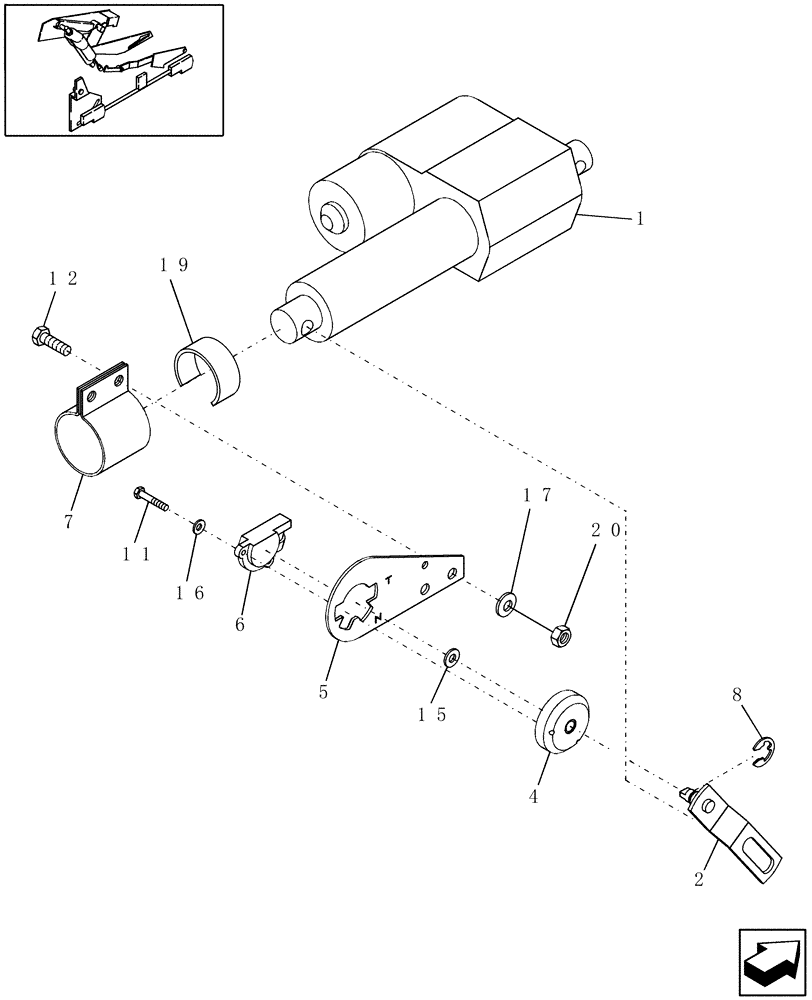

Запчасти Case IH RBX462 (15.80) - NET ACTUATOR (15) - KNOTTER /WRAPPER

1

86634125

ELECTRIC MOTOR

1шт.

1

86634125R

REMAN-ELECTRIC ACTUATOR

Reman for New PN 86634125

1шт.

1

86634125C

CORE-ELECTRIC ACTUATOR

Return Number

1шт.

2

84056960

SUPPORT

1шт.

4

86643172

ASSEMBLY

& Bushing

1шт.

5

86616587

PLATE

1шт.

6

86977396

POTENTIOMETER,3000 Ohm, 16 VDC

1шт.

7

84056957

CLAMP

1шт.

8

86000439

SNAP RING,0.288" ID x 0.66" OD x 0.037" Thk, External

1шт.

11

614-4020

BOLT,Hex, M4 x 0.7 x 20mm, Cl 8.8, Full Thd

2шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

2шт.

15

86613601

WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk

Urethane

1шт.

16

493-41020

LOCK WASHER,Ext Tooth, #10

2шт.

17

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

2шт.

19

PL

PROCURE LOCALLY

Shim, 1.5" x 4" x .010" Tk.

1шт.

20

825-1408

NUT,M8, Cl 8

2шт.
