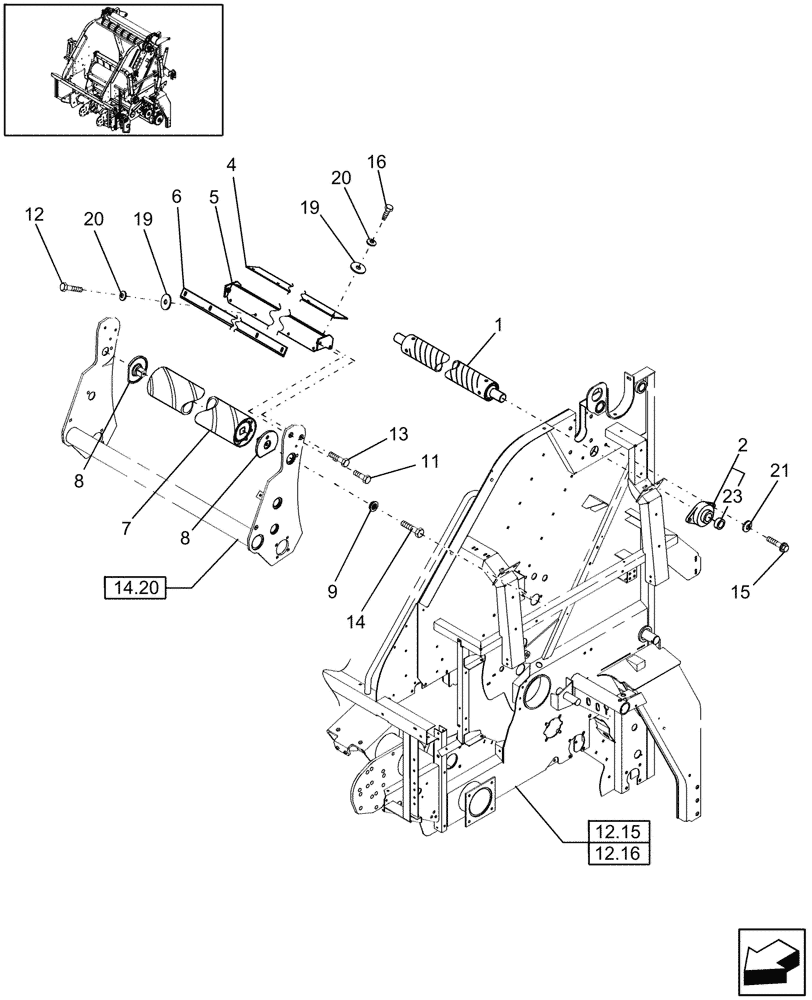

Запчасти Case IH RBX462 (14.50) - FOLLOWER ROLL, LOOP & BACKWRAP ROLL (14) - BALE CHAMBER

1

86610003

ROLLER,101.8mm OD x 1389mm L

Backwrap, Rubber

1шт.

2

86590751

BEARING ASSY,40mm ID

Incl 23

2шт.

4

9848760

BELT,127.00 mm W x 1140.00 mm L

1шт.

Prior to P.I.N. HBJ039495 for RBX462

1шт.

Prior to P.I.N. HBJ039410 for RBX452

1шт.

4

87385929

RUBBER STRIP,1140mm L x 112mm W x 7.5mm Thk

1140 x 89

1шт.

P.I.N. HBJ039411 & After for RBX452

1шт.

P.I.N. HBJ039496 & After for RBX462

1шт.

5

86979982

ANGLE

1шт.

6

9845575

SCRAPER BLADE

1шт.

Prior to P.I.N. HBJ039495 for RBX462

1шт.

Prior to P.I.N. HBJ039410 for RBX452

1шт.

6

86626880

SCRAPER BLADE

1шт.

P.I.N. HBJ039411 & After for RBX452

1шт.

P.I.N. HBJ039496 & After for RBX462

1шт.

7

86565880

ROLLER

Sledge Follower, Incl 22

1шт.

8

86553395

SUPPORT

2шт.

9

87030468

HUB

2шт.

11

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

12

844-8020

BOLT,Hvy Hex, M8 x 20mm, Cl 8.8

8шт.

13

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

14

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

15

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

16

280519

SELF-TAP SCREW,Hex, 5/16" - 12 x 1"

8шт.

19

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

Special

8шт.

20

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

21

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

4шт.

22

86553396

BEARING ASSY,30.23mm ID x 90mm OD x 30.2mm W, SQUARE BORE

Incl with 1

2шт.

Not Illustrated

1шт.

23

563733

COLLAR

Lock

2шт.
