Запчасти Case IH RBX462 (14.11) - MAIN FRAME & ROLLS (14) - BALE CHAMBER

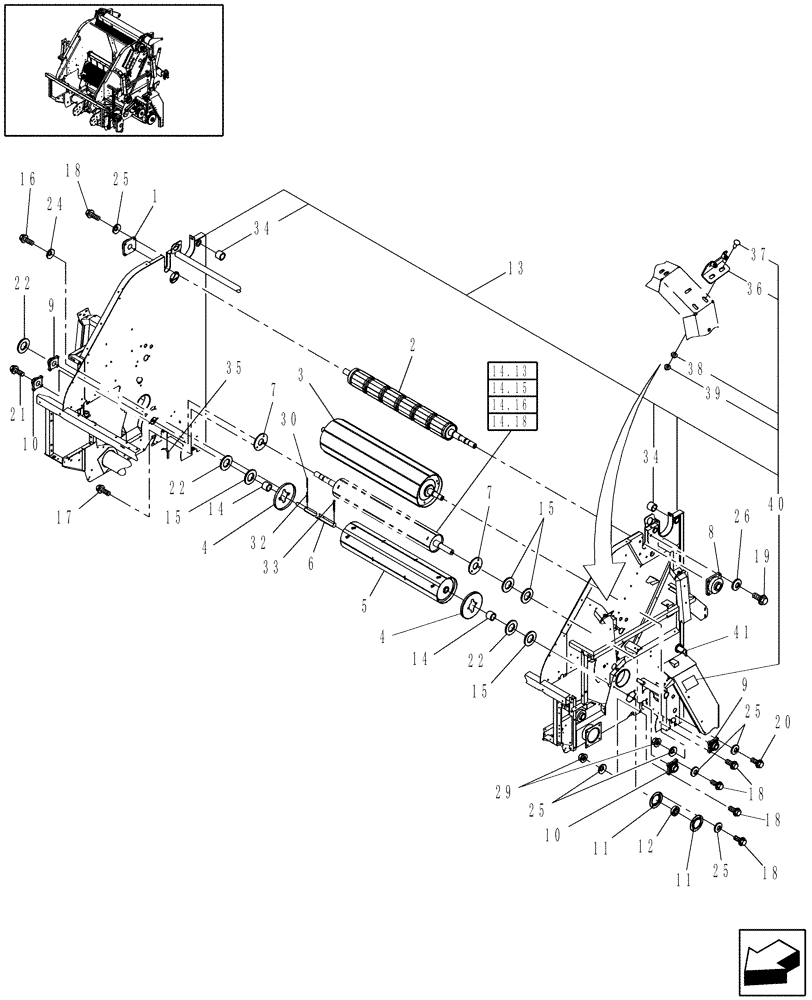

Схема запчастей Case IH RBX462 - (14.11) - MAIN FRAME & ROLLS (14) - BALE CHAMBER
14.16
38
15
4
18
18
18
14
25
4
34
35
10
22
39
2
9
24
3
10
25
13
25
5
14.15
29
15
37
41
22
32
14.18
1
25
34
7
14
12
33
21
19
14.13
11
36
7
16
26
40
11
9
20
30
18
17
15
8
6
22

Артикул

Название

Примечание

Количество

1

86609558

BEARING ASSY,45mm ID

1шт.

2

87027869

ROLLER

Drive

1шт.

3

87660299

FEED ROLLER

Floor, Includes: Round Rods

1шт.

4

86628106

SHIELD

2шт.

5

87374660

FEED ROLLER

Fixed Dimple, Includes: Square Rods

1шт.

6

86611130

SHAFT

1шт.

7

86636760

RING

2шт.

8

86590752

BEARING ASSY

1шт.

9

86590753

BEARING ASSY

2шт.

10

86610638

BEARING ASSY,45mm ID

2шт.

11

86837676

FLANGED BEARING

4шт.

12

286909

BALL BEARING,38.11mm Hex x 84.99mm OD x 30mm W

1-1/2" Hex Bore

2шт.

13

87016738

FRAME ASSY

Main, North America, Includes: Decals

1шт.

13

87016740

FRAME ASSY

Main, Europe & R.O.W., Includes: Decals

1шт.

14

86622263

HUB

2шт.

15

86619043

WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk

Plated

1шт.

16

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

17

274247

BOLT,Hex Flg, M10 x 16mm, Stainless

4шт.

18

614-12035

BOLT,Hex, M12 x 1.75 x 35mm, Cl 8.8, Full Thd

26шт.

19

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

4шт.

20

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

8шт.

21

614-12040

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

2шт.

22

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

.060" Thk

1шт.

24

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

25

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

28шт.

26

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

4шт.

29

829-2412

FLANGE NUT,M12 x 1.75, Flg, Cl 10

4шт.

30

84024216

LOCK PIN,5mm OD x 50mm L, Slotted

1шт.

Install Ref. 30 Inside Ref. 32

1шт.

32

412689

LOCK PIN,8mm OD x 50mm L, Slotted

1шт.

33

432-1232

COTTER PIN,3/16" OD x 2" L

1шт.

34

86514470

BUSHING,35.13mm ID x 41.38mm OD x 50.04mm L

2шт.

35

87039466

STRIPPER

2шт.

P.I.N. HBJ0005706 & After

1шт.

Welding Required

1шт.

36

87037410

HINGE

Lower, Square-Shaped

4шт.

P.I.N. HBJ039360 & After

1шт.

37

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

8шт.

P.I.N. HBJ039360 & After

1шт.

38

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

P.I.N. HBJ039360 & After

1шт.

39

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

8шт.

P.I.N. HBJ039360 & After

1шт.

40

86631518

DANGER DECAL

English

2шт.

P.I.N. HBJ039360 & After

1шт.

40

86632801

DECAL

DANGER, French

2шт.

P.I.N. HBJ039360 & After

1шт.

41

86636753

PIN

Tailgate Latch Pivot

1шт.

Welding Required

1шт.

Выбрано товаров: 49
