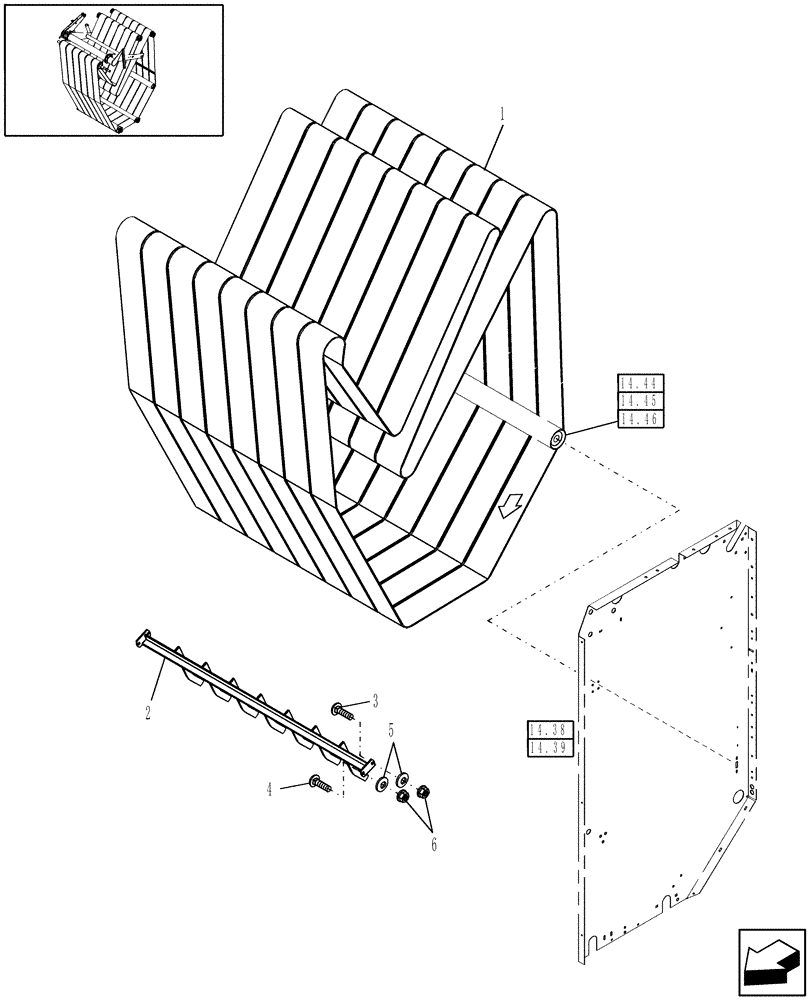

Запчасти Case IH RBX462 (14.08) - ENDLESS CHEVRON BELT (14) - BALE CHAMBER

1

87032888

BELT,7.00" W x 420.50" L

Endless, Chevron, RBX462

6шт.

1

87032888

BELT,7.00" W x 420.50" L

Endless, Chevron, RBX562

8шт.

2

86637506

GUIDE

Belt, Optional, RBX462

1шт.

3

86977995

GUIDE

Belt, Front, Optionall, RBX562

1шт.

3

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

2шт.

4

811-10060

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 60mm, Cl 8.8

2шт.

5

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

6

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

4шт.
