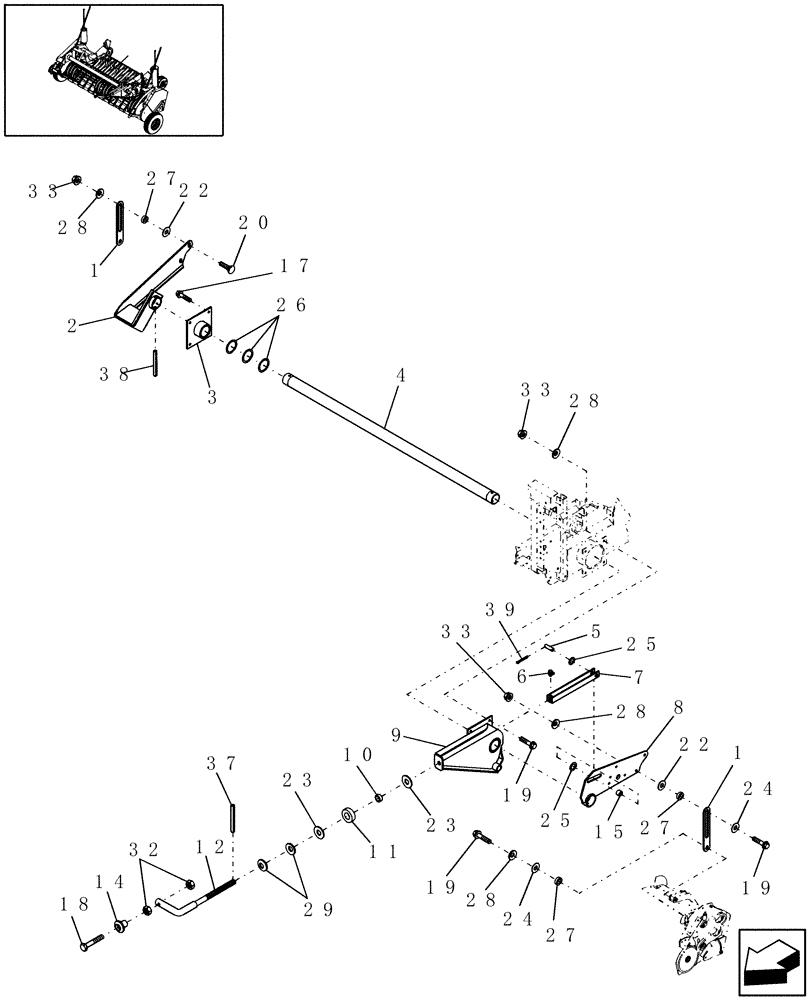

Запчасти Case IH RBX462 (13.825) - PICKUP LIFT, STUFFER FEEDER, NORTH AMERICA (13) - FEEDER

1

86620532

STRAP

2шт.

2

86620297

ARM

1шт.

3

86620245

MOUNTING PARTS

1шт.

4

86620247

TUBE,60.50 mm OD x 1577.30 mm L

1шт.

5

86634564

PIN

1шт.

6

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1шт.

7

86620166

LINK

1шт.

8

86620277

ARM

1шт.

9

86620230

MOUNTING PARTS

1шт.

10

86636652

SPACER

1шт.

11

90999

SPACER,25.65mm ID x 50.8mm OD x 15.88mm L

1шт.

12

87024156

THREADED ROD

Crank Handle

1шт.

14

33781

KNOB

1шт.

15

86636631

HUB

1шт.

17

844-10025

BOLT,Hex, M10 x 25mm, Cl 8.8

4шт.

18

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

19

844-10030

BOLT,Hvy Hex, M10 x 30mm, Cl 8.8

7шт.

20

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

1шт.

22

235126

WASHER,10.3mm ID x 38mm OD x 1.7mm Thk

Special

2шт.

23

56867

WASHER

Special, Hardened

2шт.

24

213404

SPACER,10.3mm ID x 38.1mm OD x 5.2mm OAL

3/16" x 13/32" ID x 1-1/2" OD

1шт.

25

249100

WASHER,0.78" ID x 1.25" OD x 0.06" Thk

Special

1шт.

26

122257

WASHER,61.9mm ID x 77.79mm OD x 1.2mm Thk

2-3/8"

3шт.

27

87020910

SPACER,10.4mm ID x 19mm OD x 8.9mm Thk

4шт.

28

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

12шт.

29

322359

BELLEVILLE WASHER,M20 Bolt Size x 40mm OD x 3.2mm Thk

2шт.

32

425-106

NUT,3/8"-16, Cl 5

2шт.

33

825-2410

FLANGE NUT,M10 x 1.5, Flg, Cl 8

12шт.

37

280315

GROOVED PIN,4.76mm OD x 25.4mm L

1шт.

38

86544809

LOCK PIN,9.53mm OD x 76.2mm L, Slotted

2шт.

39

32-1220

COTTER PIN,3/16" x 1 1/4"

2шт.
