Запчасти Case IH RBX462 (12.15) - MAIN FRAME & DRIVE, LH, ROTOR (12) - MAIN FRAME

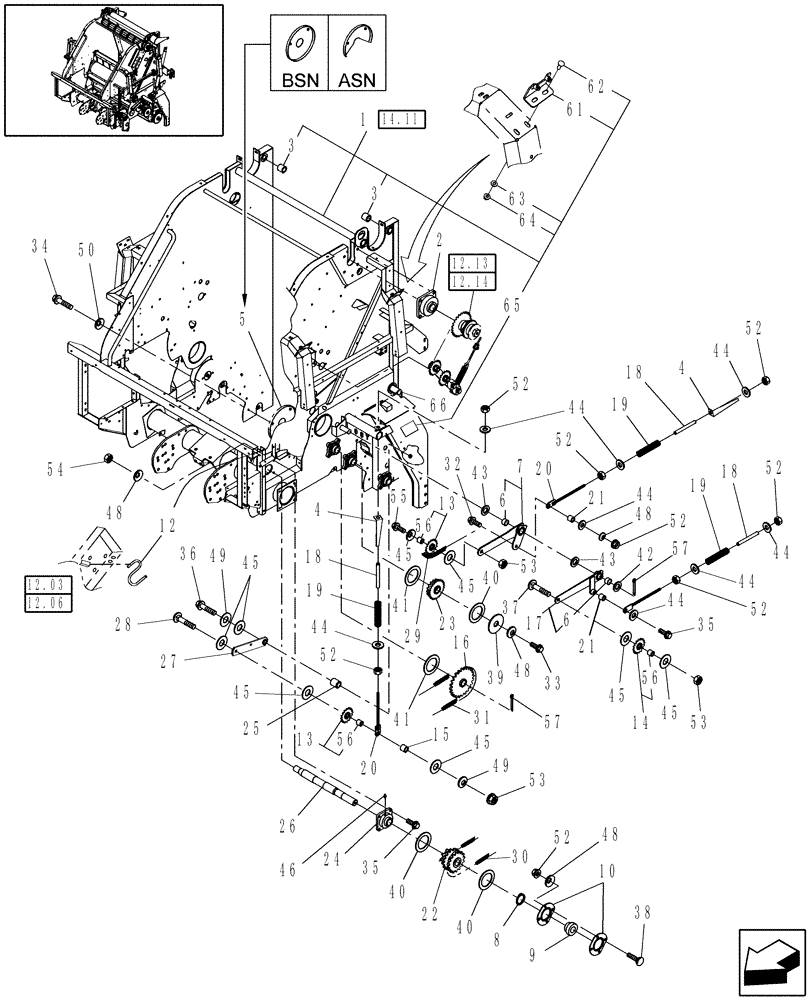

Схема запчастей Case IH RBX462 - (12.15) - MAIN FRAME & DRIVE, LH, ROTOR (12) - MAIN FRAME
52
45
2
62
27
21
6
13
49
13
24
52
29
45
50
45
41
12.03
32
56
45
37
34
53
39
16
1
43
38
57
53
44
57
17
4
31
18
10
48
18
21
44
20
22
23
35
49
5
44
3
9
56
41
52
45
18
19
40
54
45
30
52
45
64
19
65
61
53
28
48
43
35
48
4
52
12.13
12
52
6
40
52
42
3
63
7
48
26
44
55
44
40
25
8
56
44
14
66
12.06
36
46
20
12.14
33
44
52
14.11
19
15

Артикул

Название

Примечание

Количество

1

87016738

FRAME ASSY

Main, North America, Includes: Decals

1шт.

1

87016740

FRAME ASSY

Main, Europe & R.O.W., Includes: Decals

1шт.

2

86590752

BEARING ASSY

1шт.

3

86514470

BUSHING,35.13mm ID x 41.38mm OD x 50.04mm L

2шт.

4

86643093

INDICATOR

2шт.

5

86629150

DISC

2шт.

Prior to P.I.N. HBJ0005714

1шт.

5

87040530

DISC

2шт.

P.I.N. HBJ0005715 & After

1шт.

6

27639

BUSHING,31.83mm ID x 38.19mm OD x 25.4mm L

2шт.

7

86632214

ARM

Inner, Includes: Ref. 6

1шт.

8

100-16175

SNAP RING,#175, Ext

1шт.

9

412441

ROLLER BEARING,40mm ID x 80mm OD x 21mm W, Round Bore

& Collar

1шт.

10

86548973

FLANGE

2шт.

12

115680

HOOK

1шт.

13

NS

NOT SERVICED

SPROCKET 13T, Plastic, Production Only {87050058}

2шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

13

66614

SPROCKET,RC80, 13T

13T, Steel, Service Only, Includes: Bearing 144819C91

2шт.

Steel Service Sprocket (66614) & Plastic Production Sprocket are Interchangable.

1шт.

14

87017554

DRIVEN SPROCKET

12T

1шт.

15

86529376

SPACER

1шт.

16

86610108

SPROCKET

25 T, RC 80

1шт.

17

86632217

LIFT ARM

Outer

1шт.

18

86637258

TUBE,19.05 mm OD x 228.60 mm L

3шт.

19

86618710

SPRING,1-3/8" OD x 8-5/8" L

Compression, 8-5/8" L

3шт.

20

86633971

BOLT,M12 x 1.75 x 377.5mm L

Linkage, M12 x 1.75 Threaded

3шт.

21

45455

SPACER,13.5mm ID x 25.4mm OD x 9.5mm Thk

17/32" ID x 1" OD x 3/8"

2шт.

22

86610107

SPROCKET

Triple, 18T/RC 80,13T/RC 80,14T/RC100

1шт.

23

86610110

SPROCKET

Double, 17T/RC 80, 20T/RC 100

1шт.

24

86609558

BEARING ASSY,45mm ID

1шт.

25

86614030

SPACER

30mm

1шт.

26

86629575

SHAFT

1шт.

27

86611436

ARM

1шт.

28

814-16070

BOLT,Hex, M16 x 2 x 70mm, Cl 8.8

1шт.

29

86549269

CHAIN,RC80, 64 Links x 25.4mm = 1625.6mm

Roller, RC 80, 64 Pitches, Includes: Ref. 58

1шт.

30

86562829

CHAIN,100, 67 Links x 31.75mm = 2127.25mm

Roller, RC 100, 67 Pitches, Includes: Ref. 59 & 60

1шт.

31

86611455

CHAIN,80P, 67 Links x 25.4mm = 1701.8mm

RC 80, 67 Total Pitches, Includes: Ref. 51 & 58

1шт.

32

811-12040

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 40mm, Cl 8.8

1шт.

33

844-12030

BOLT,Hvy Hex, M12 x 30mm, Cl 8.8

1шт.

34

844-10020

BOLT,Hvy Hex, M10 x 20mm, Cl 8.8

4шт.

35

844-12045

BOLT,Hvy Hex, M12 x 45mm, Cl 8.8

5шт.

36

9804272

BOLT,Hex, M16 x 50mm, Cl 8.8, Full Thd

1шт.

37

811-16060

CARRIAGE BOLT,Sht Sq Nk, M16 x 2 x 60mm, Cl 8.8

1шт.

38

335890

CARRIAGE BOLT,Sq Nk, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

39

694478

WASHER,13.5mm ID x 57.15mm OD x 4.8mm Thk

Special, Hardened

1шт.

40

58821

WASHER,45.24mm ID x 56.36mm OD x 1.65mm Thk

Special

1шт.

41

86619043

WASHER,45.2mm ID x 60.3mm OD x 3.68mm Thk

1шт.

42

27696

WASHER,1.281" ID x 2" OD x .060" Thk

Special

1шт.

43

142656

WASHER,33.35mm ID x 47.63mm OD x 3.43mm Thk

1-1/4"

1шт.

44

80700

WASHER,0.56" ID x 1.38" OD x 0.11" Thk

8шт.

45

495-11066

WASHER,5/8", SAE

1шт.

46

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1шт.

47

140020

WASHER,17.5mm ID x 30mm OD x 3mm Thk

1шт.

48

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

10шт.

49

140048

BELLEVILLE WASHER,M16 Bolt Size x 32mm OD x 2.8mm Thk

1шт.

50

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

4шт.

51

86977428

CONNECTING LINK

Offset

1шт.

Not Illustrated

1шт.

52

825-1412

NUT,M12, Cl 8

16шт.

53

832-46416

NUT,M16 x 2, Cl 8

3шт.

55

9804273

BOLT,Hex, M16 x 60mm, Cl 8.8

3шт.

56

144819C91

BEARING

1шт.

57

432-1232

COTTER PIN,3/16" OD x 2" L

2шт.

58

9620569

CONNECTING LINK,RC80, 1 Link x 25.4mm = 25.4mm L

1шт.

Not Illustrated

1шт.

59

86977432

LINK,31.75mm Pitch

Offset

1шт.

Not Illustrated

1шт.

60

86595263

LINK,31.75mm Pitch

1шт.

Not Illustrated

1шт.

61

87037410

HINGE

Lower, Square-Shaped

4шт.

P.I.N. HBJ039360 & After

1шт.

62

308761

CARRIAGE BOLT,M8 x 1.25 x 25mm, Cl 8.8

8шт.

P.I.N. HBJ039360 & After

1шт.

63

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

P.I.N. HBJ039360 & After

1шт.

64

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

8шт.

P.I.N. HBJ039360 & After

1шт.

65

86631518

DANGER DECAL

English

2шт.

P.I.N. HBJ039360 & After

1шт.

65

86632801

DECAL

DANGER, French

2шт.

P.I.N. HBJ039360 & After

1шт.

66

86636753

PIN

Tailgate Latch Pivot

1шт.

Welding Required

1шт.

Выбрано товаров: 83
