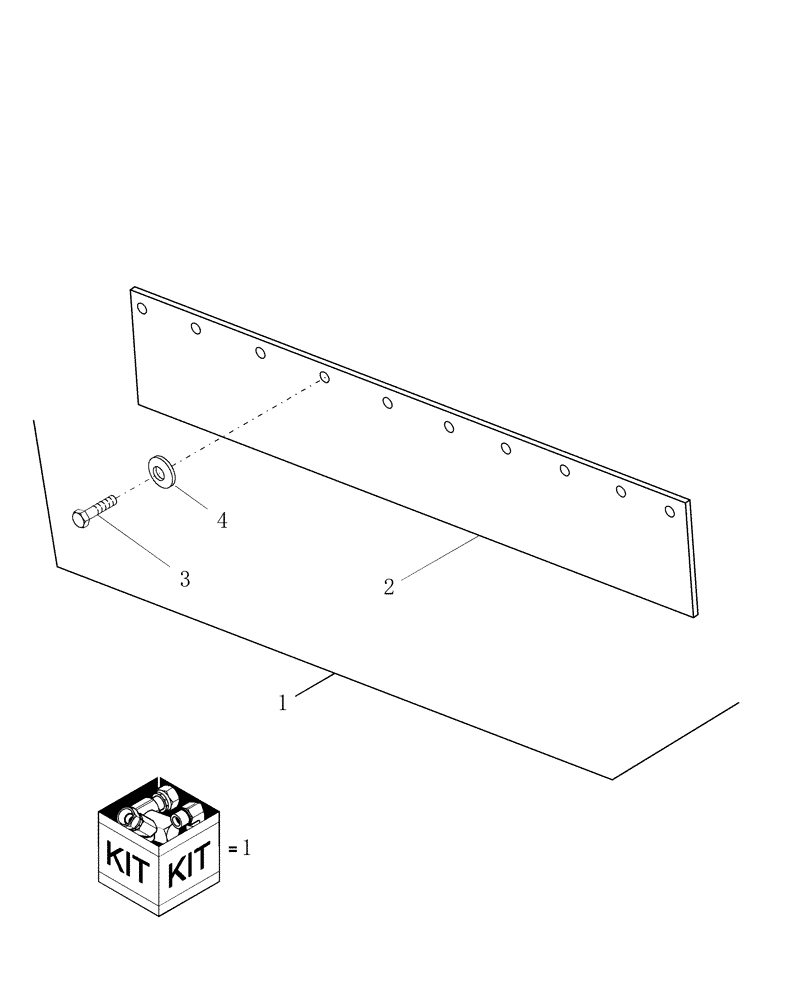

Запчасти Case IH RBX461 (094) - TRASH BAFFLE KIT (88) - ACCESSORIES

1

86618701

KIT

Trash Baffle, Includes: Ref. 2 - 4 & Instructions

1шт.

Refer to Installation Instructions for Correct Assembly Procedure

1шт.

2

86548820

BELT,178.00 mm W x 1520.00 mm L

Trash Baffle

1шт.

3

614-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8, Full Thd

10шт.

4

322

WASHER,8.73mm ID x 42.07mm OD x 3.43mm Thk

10шт.
