Запчасти Case IH RBX461 (084) - WIDE PICKUP, FEEDER CLUTCH (88) - ACCESSORIES

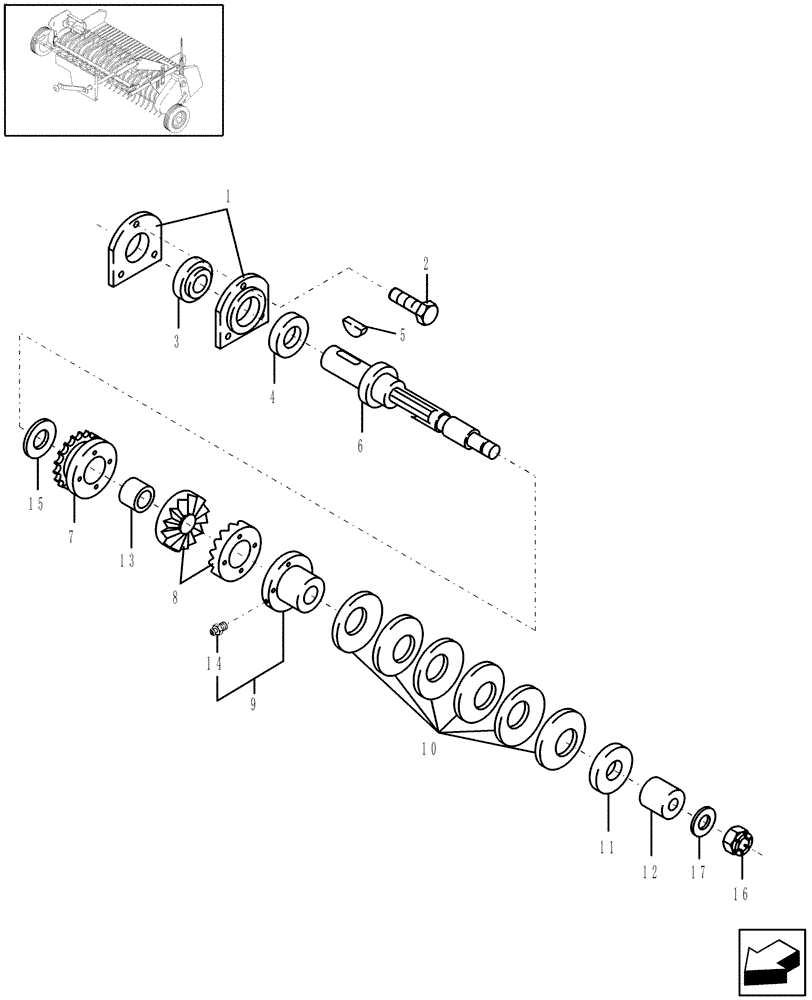

Схема запчастей Case IH RBX461 - (084) - WIDE PICKUP, FEEDER CLUTCH (88) - ACCESSORIES
14
7
3
11
5
17
12
8
13
2
1
4
16
10
15
9
6

Артикул

Название

Примечание

Количество

1

86635012

FLANGE

Bearing

2шт.

2

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

3шт.

3

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

1шт.

4

517645R11

COLLAR

Locking, Includes: Set Screw

1шт.

5

126-33

WOODRUFF KEY,#D, 5/16" x 1 1/4"

1шт.

6

86543306

SHAFT

1шт.

7

86637255

SPROCKET ASSY.

Includes: Ref. 7A

1шт.

8

714379

CLUTCH

Jaw

2шт.

9

86637169

HUB

1шт.

10

9822385

BELLEVILLE WASHER,52mm ID x 100mm OD x 3.3mm Thk

6шт.

11

166490

WASHER,51.6mm ID x 76.2mm OD x 3.68mm Thk

Hardened, 2"

1шт.

12

9845592

RING

1шт.

13

46962

BUSHING,2" ID x 2.13" OD x 1.25" L

1шт.

14

88775

LUBE NIPPLE,1/4"-28

1шт.

15

86567296

WASHER

Nylon, M100

1шт.

16

280215

SLOTTED NUT,1 1/8"-12, G5

1шт.

17

26558

WASHER,28.5mm ID x 45.2mm OD x 1.7mm Thk

1-3/4" OD

1шт.

Выбрано товаров: 17
