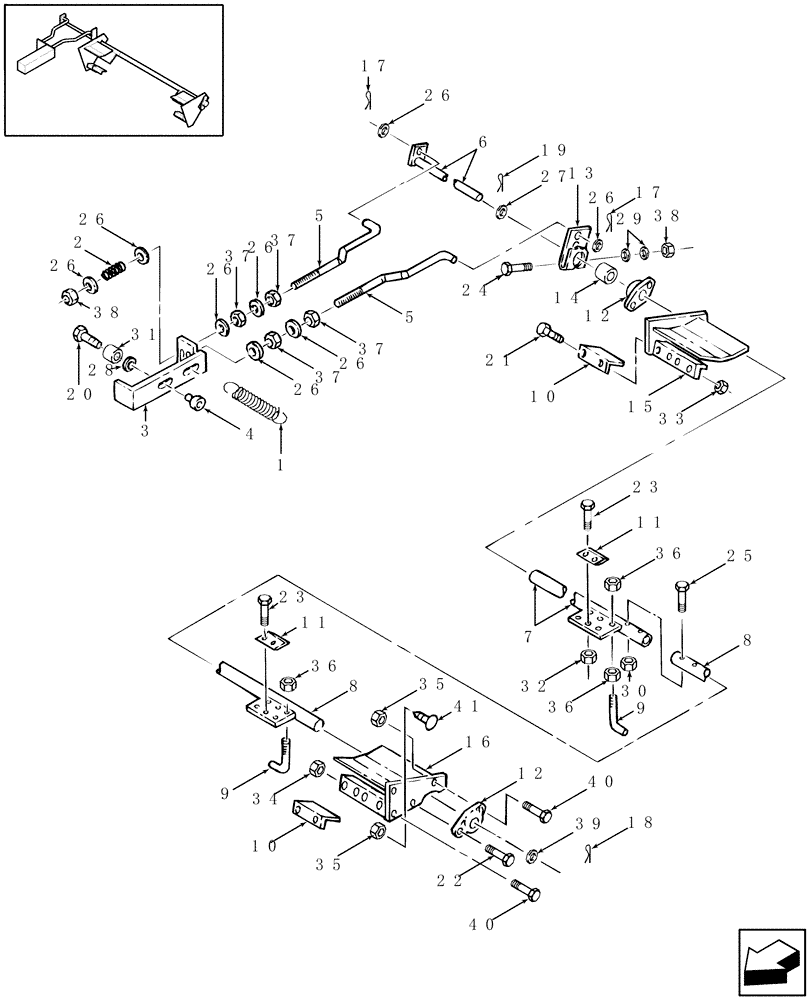

Запчасти Case IH RBX461 (069) - TWINE CUT-OFF (68) - TYING/WRAPPING

1

86559592

SPRING,Extension, 0.99" OD x 6-1/4" L

Extension

1шт.

2

42622

SPRING

1-1/2" Lg.

1шт.

3

86636790

PLATE

Electric Wrapper Only

1шт.

4

9848747

SPACER

1шт.

5

86636646

ROD

2шт.

6

86636764

SHAFT

1шт.

7

86636765

TUBE

Includes: (2) Ref. 7A

1шт.

7a

617768

BUSHING

Nylon

2шт.

8

86636770

TUBE

1шт.

9

623796

ROD

L Bolt

2шт.

10

86636771

ANGLE

2шт.

11

617945

KNIFE SECTION

Twine Cutting

2шт.

12

608566

NYLON BEARING,26.56 mm ID x 14 mm

Bearing

2шт.

13

86636634

CLAMP

1шт.

14

86636638

HUB

1шт.

15

86628312

ANGLE

RH

1шт.

16

86628311

ANGLE

LH

1шт.

17

432-812

COTTER PIN,3/4" OAL x 1/8" W

2шт.

18

432-824

COTTER PIN,1/8" x 1 1/2"

1шт.

19

394818

COTTER PIN,M5 x 25

1шт.

20

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

1шт.

21

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

22

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

1шт.

23

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

2шт.

24

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

1шт.

25

461-33120

HEX SOC SCREW,5/16"-18 x 1 1/4"

1шт.

26

495-21044

WASHER,3/8"

8шт.

27

495-21069

WASHER,5/8"

1шт.

28

58225

WASHER,10.32mm ID x 31.8mm OD x 3.45mm Thk

Special, 1-1/4" OD

1шт.

29

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

1шт.

30

280736

NUT,5/16"-18, GC

1шт.

31

86631586

SPACER,9.8mm ID x 12.7mm OD x 16.76mm L

1шт.

32

825-5146

SERRATED NUT,M6, Flg Ser

1шт.

33

825-5148

SERRATED NUT,M8, Flg Ser

1шт.

34

825-51410

FLANGE NUT,M10, Flg Ser

1шт.

35

832-46410

NUT,M10 x 1.5, Cl 8

2шт.

36

425-105

NUT,5/16"-18, G5

3шт.

37

425-106

NUT,3/8"-16, Cl 5

4шт.

38

232-4146

NUT,3/8"-16, GC

2шт.

39

26402

WASHER,25.8mm ID x 38.1mm OD x 1.7mm Thk

(.060" Thk, 1-1/2" OD)

1шт.

40

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

41

905-10025

BOLT,Hex Flg, M10 x 25mm

1шт.
