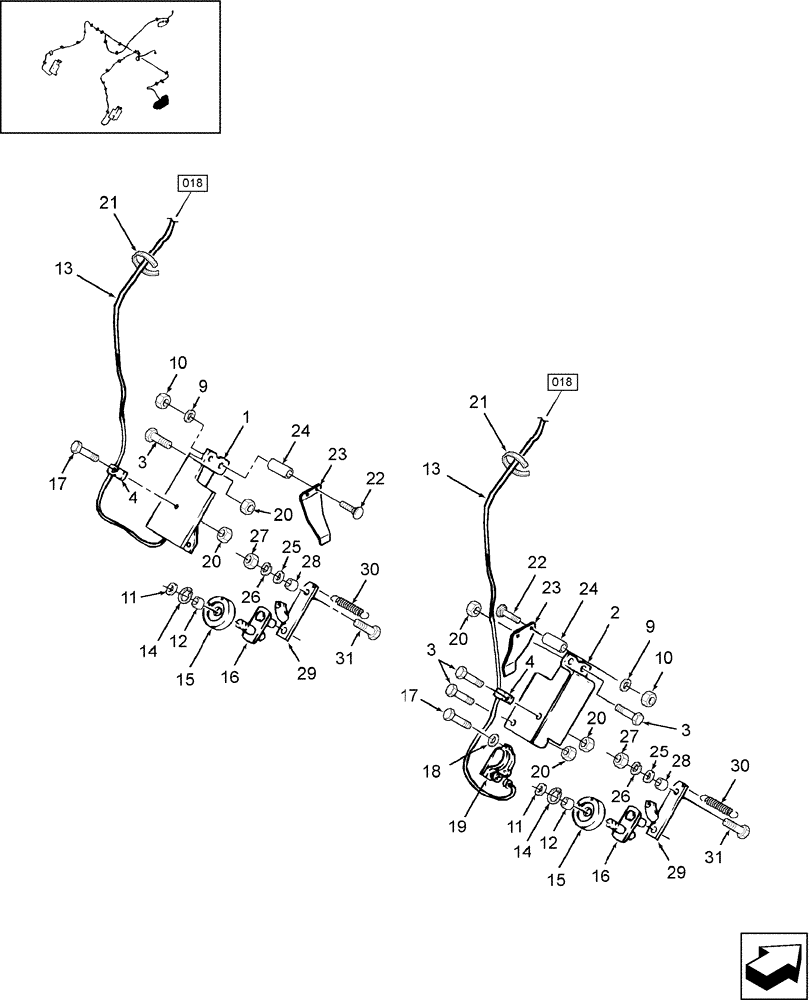

Запчасти Case IH RBX461 (019[1]) - ELECTRIC TWINE WRAP, BALE SHAPE SENSORS (68) - TYING/WRAPPING

1

86506979

SHIELD

LH

1шт.

2

86511226

SHIELD

RH

1шт.

3

905-8016

BOLT,Hex Flg, M8 x 16mm

7шт.

4

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

3шт.

5

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

6

892-11010

LOCK WASHER,M10

2шт.

7

134580

WIRE CLAMP,6.3mm, Coat, 10.3mm Bolt Hole, J Type

2шт.

8

425-105

NUT,5/16"-18, G5

1шт.

9

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

10

425-105

NUT,5/16"-18, G5

4шт.

11

86613601

WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk

Urethane

2шт.

12

86509761

BUSHING

2шт.

13

86624226

HARNESS

Twine Only, Refer to Fig. 033

1шт.

14

100-3437

SNAP RING,#37, Ext

2шт.

15

86509329

MOUNTING PLATE

Includes: Ref. 40

2шт.

16

86619565

SUPPORT

2шт.

17

614-4020

BOLT,Hex, M4 x 0.7 x 20mm, Cl 8.8, Full Thd

8шт.

18

493-41020

LOCK WASHER,Ext Tooth, #10

8шт.

19

86500902

POTENTIOMETER,3000 Ohm, 16 VDC

Bale Shape Sensing

2шт.

20

825-5148

SERRATED NUT,M8, Flg Ser

8шт.

21

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

1шт.

22

433-548

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3", Gr 5

4шт.

23

86637389

SPRING

Bale Shape

2шт.

24

718782

SPACER

4шт.

25

495-21031

WASHER,1/4"

2шт.

26

492-11031

LOCK WASHER,5/16"

4шт.

27

825-1408

NUT,M8, Cl 8

6шт.

28

177822

SPACER,8.33mm ID x 12.7mm OD x 4.32mm Thk

21/64" ID x .500" OD x .170" Lg.

2шт.

29

86637391

ARM

2шт.

30

217465

SPRING

Extension

2шт.

31

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

4шт.
