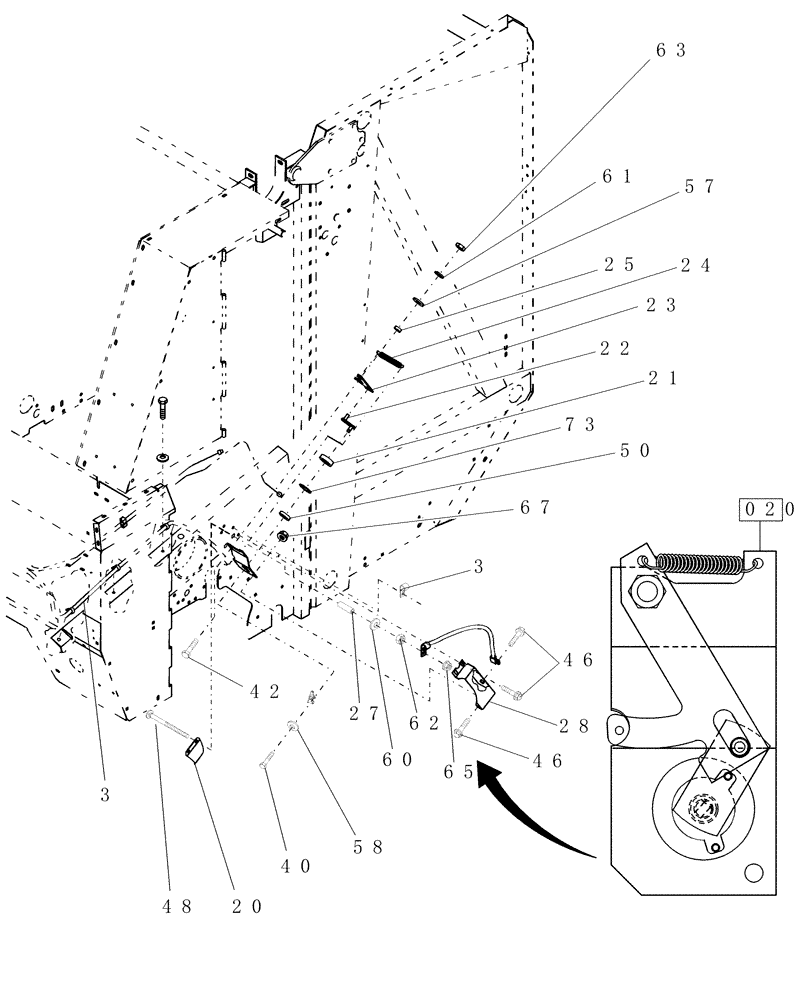

Запчасти Case IH RBX461 (018[2]) - ELECTRIC TWINE WRAP, LH (68) - TYING/WRAPPING

3

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

7шт.

20

86637389

SPRING

Bale Shape

2шт.

21

86509329

MOUNTING PLATE

2шт.

22

86619565

SUPPORT

2шт.

23

86637391

ARM

2шт.

24

217465

SPRING

Extension

2шт.

25

177822

SPACER,8.33mm ID x 12.7mm OD x 4.32mm Thk

21/64" ID x .500" OD x .170" Lg.

2шт.

27

718782

SPACER

4шт.

28

86506979

SHIELD

LH

1шт.

40

614-4020

BOLT,Hex, M4 x 0.7 x 20mm, Cl 8.8, Full Thd

4шт.

42

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

6шт.

46

905-8016

BOLT,Hex Flg, M8 x 16mm

6шт.

48

433-548

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3", Gr 5

4шт.

50

86613601

WASHER,14.88mm ID x 28.69mm OD x 7.35mm Thk

Urethane

2шт.

57

495-21038

WASHER,5/16"

2шт.

58

493-41020

LOCK WASHER,Ext Tooth, #10

4шт.

60

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

8шт.

61

492-11031

LOCK WASHER,5/16"

2шт.

62

425-105

NUT,5/16"-18, G5

4шт.

63

825-1408

NUT,M8, Cl 8

4шт.

65

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

1шт.

67

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

73

100-3437

SNAP RING,#37, Ext

2шт.
