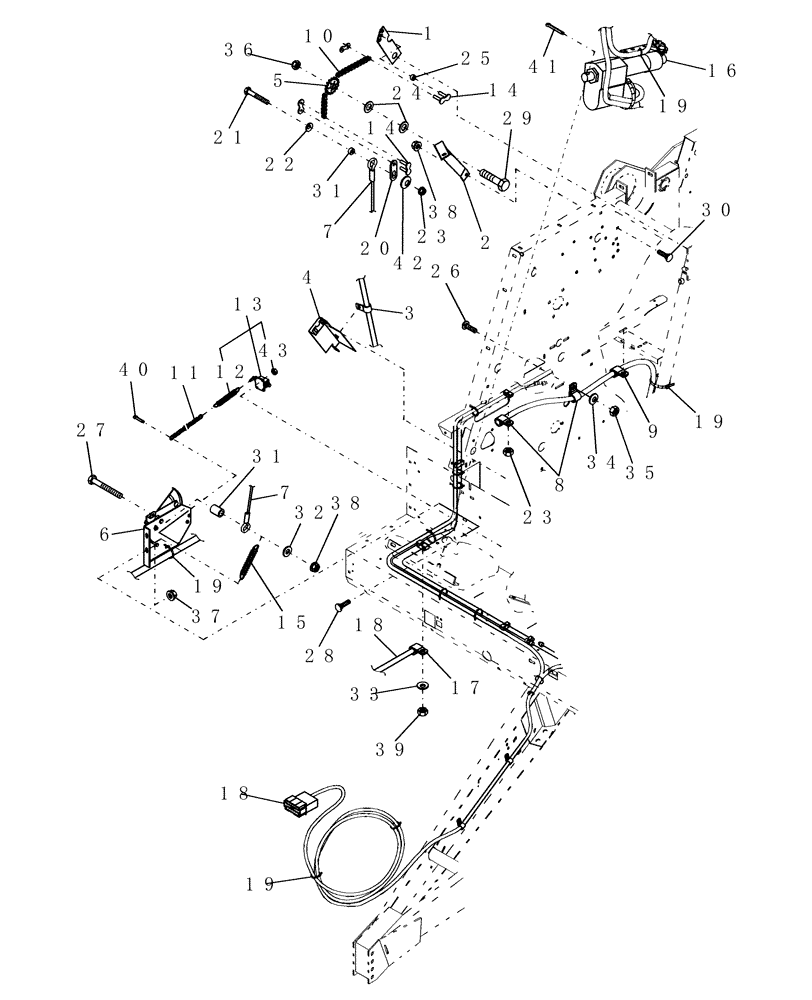

Запчасти Case IH RBX461 (018[1]) - ELECTRIC TWINE WRAP, RH (68) - TYING/WRAPPING

1

86978158

BAR

1шт.

2

86978159

BRACKET

1шт.

3

515-2279

CLAMP,5/16", Insul, 5/16" Bolt

1шт.

4

86511226

SHIELD

RH

1шт.

5

103243

DRIVEN SPROCKET

Idler, 18T

1шт.

6

NSS

NOT SOLD SEPARAT

Electric Twine Wrap Switch, Refer to Fig. 020

1шт.

Order Components

1шт.

7

86977382

CABLE ASSY.

1шт.

8

515-2195

CLAMP,3/8", Insul, 1/4" Bolt

2шт.

9

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

1шт.

10

56364

CHAIN

Includes: Ref. 14

1шт.

11

197559

CHAIN,9" L

#16, 9" L

1шт.

12

197717

SPRING

1шт.

13

86608973

BALE COUNTER

Includes: Spring & (2) #5 Nuts

1шт.

14

NSS

NOT SOLD SEPARAT

Connector Link, 2040, Included W/ Ref. 10

1шт.

15

32306

SPRING

1шт.

16

NSS

NOT SOLD SEPARAT

Actuator, Electric Twine Wrap, Refer to Fig. 018-3

1шт.

Order Components

1шт.

17

515-23143

CLAMP,9/16", Insul, 3/8" Bolt

1шт.

18

86624226

HARNESS

Wire, Main

1шт.

19

263117

CABLE TIE,292.1mm L, Nylon, Black

CABLE STRAP

20шт.

20

86836922

LINK CHAIN

Connector

1шт.

21

814-6030

BOLT,Hex, M6 x 1 x 30mm, Cl 8.8

1шт.

22

76028

WASHER,9/32" x 1" x .06" Thk

1шт.

23

825-5146

SERRATED NUT,M6, Flg Ser

1шт.

24

495-21069

WASHER,5/8"

2шт.

25

86636763

HUB

1шт.

26

811-6016

CARRIAGE BOLT,Sht Sq Nk, M6 x 1 x 16mm, Cl 8.8

1шт.

27

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

28

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

2шт.

29

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

1шт.

30

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

1шт.

31

696365

SPACER

1шт.

32

495-21044

WASHER,3/8"

1шт.

33

495-11028

WASHER,1/4", SAE

1шт.

34

492-11025

LOCK WASHER,1/4"

1шт.

35

825-1406

NUT,M6, Cl 8

1шт.

36

231-41410

NUT,5/8"-11, GB

1шт.

37

825-5148

SERRATED NUT,M8, Flg Ser

4шт.

38

825-51410

FLANGE NUT,M10, Flg Ser

3шт.

39

832-46406

NUT,M6 x 1, Cl 8

1шт.

40

432-88

COTTER PIN,1/8" x 1/2"

1шт.

41

432-816

COTTER PIN,1/8" x 1"

3шт.

42

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

1шт.
