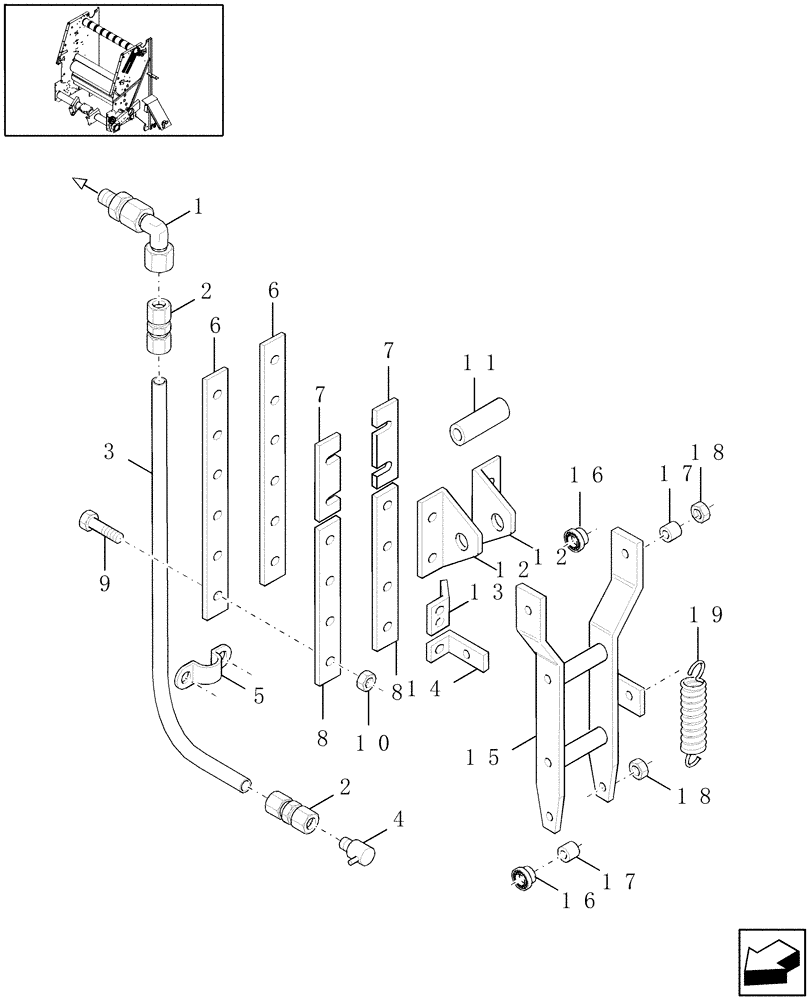

Запчасти Case IH RBX461 (026) - DECLUTCH (62) - PRESSING - BALE FORMATION

1

691873

ELBOW,90 Degree Elbow, 1/8" Male NPT x 1/8" Female NPT

Swivel, 90°

1шт.

2

11787

FITTING,3/8"-24 Fem x 1/8" NPT

Includes: 13362 Sleeve & 13367 Nut

2шт.

3

9846836

PLASTIC-RUBBER TUBE,3.58mm ID x 1000mm L

1шт.

4

86050275

LUBE NIPPLE

Straight, 1/8"

1шт.

5

515-2163

WIRE CLAMP,1/8", Insul, 1/4" Bolt

1шт.

6

86636874

BAR

2шт.

7

86636889

SHIM

1шт.

8

86636784

BAR

2шт.

9

811-10040

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8

12шт.

9

811-10050

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 50mm, Cl 8.8

1шт.

10

825-51410

FLANGE NUT,M10, Flg Ser

12шт.

11

86636660

TUBE,0.75" OD x 4.50" L

1шт.

12

86636785

ANGLE

2шт.

13

86636875

BRACKET

1шт.

14

86636797

ANGLE

1шт.

15

86636981

FORK

1шт.

16

86617019

CAM FOLLOWER

4шт.

17

86636890

SPACER

4шт.

18

280474

NUT,7/16"-20, GC

4шт.

19

86559592

SPRING,Extension, 0.99" OD x 6-1/4" L

Extension

2шт.
