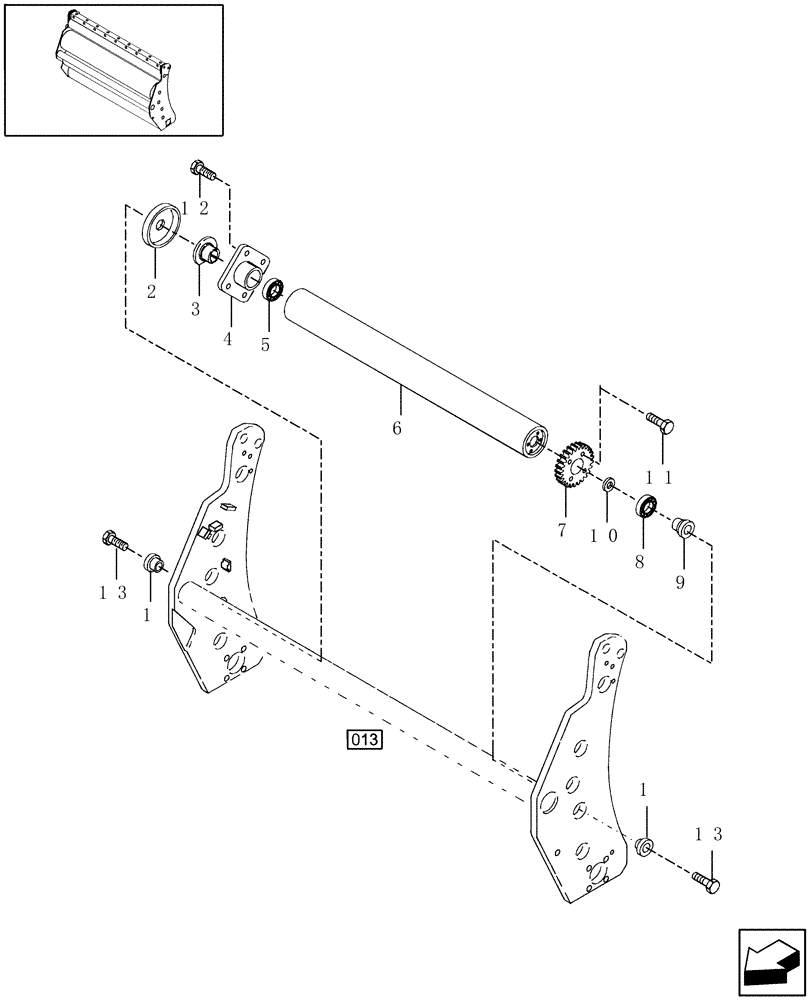

Запчасти Case IH RBX461 (023) - MIDDLE ROLLER (62) - PRESSING - BALE FORMATION

1

87030468

HUB

2шт.

2

86628107

SHIELD

1шт.

3

9806396

SUPPORT

1шт.

4

86636892

FLANGE

Includes: Ref. 5

1шт.

Bearing & Housing are Select-Fit, Components are N.S.S.

1шт.

5

NSS

NOT SOLD SEPARAT

To Service Bearing, Order Ref. 4

1шт.

6

86637006

ROLLER

Middle

1шт.

7

86614686

GEAR

Roll, 24T, Includes: Ref. 8

1шт.

Bearing & Gear are Select-Fit, Components are N.S.S.

1шт.

8

NSS

NOT SOLD SEPARAT

Bearing

1шт.

9

9803325

SUPPORT

1шт.

10

100-11177

SNAP RING,#177, Ext

1шт.

11

61-33128

HEX SOC SCREW,5/16"-18 x 1 3/4"

Except Silage Special

1шт.

11

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

Required for Silage Special

1шт.

12

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

1шт.

13

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

2шт.
