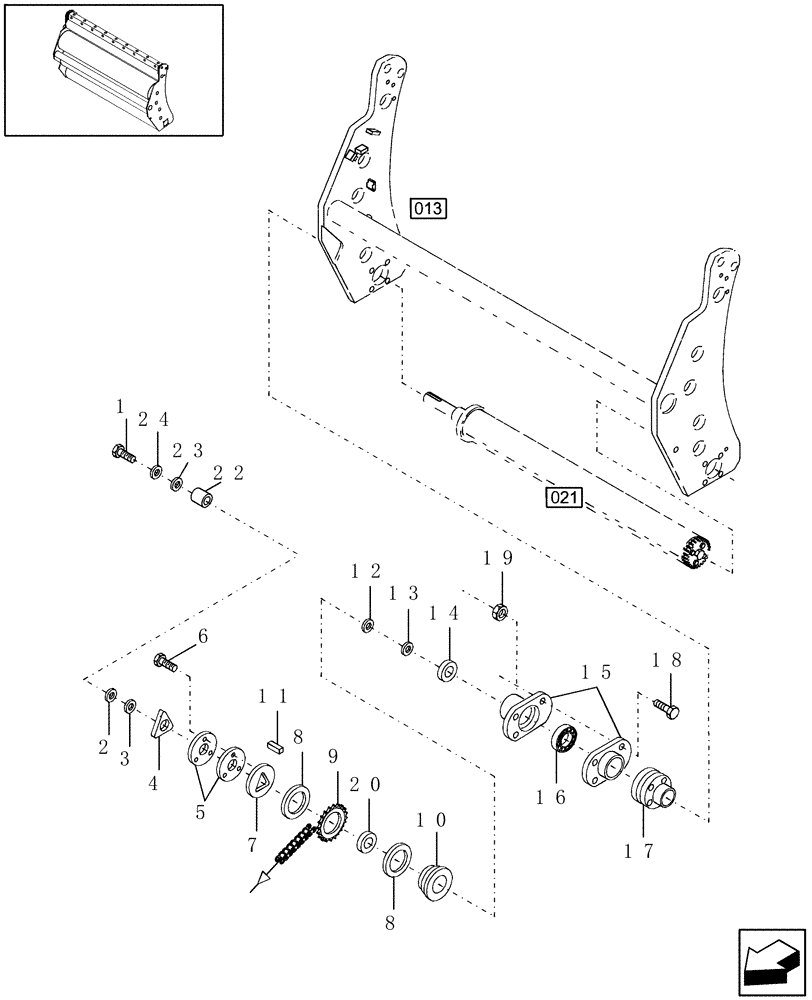

Запчасти Case IH RBX461 (022) - PIVOT ROLLER, CLUTCH & DRIVE (62) - PRESSING - BALE FORMATION

1

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

1шт.

2

492-11044

LOCK WASHER,7/16"

1шт.

3

694478

WASHER,13.5mm ID x 57.15mm OD x 4.8mm Thk

Hardened, 1/2"

1шт.

4

86636168

BRACKET

1шт.

5

121092

BELLEVILLE WASHER,35mm ID x 117.5mm OD x 3.5mm Thk

2шт.

6

409-7612

BOLT,3/8"-16 x 1.09" OAL

3шт.

7

86627129

CLUTCH PLATE

1шт.

8

127434

DISC,77.7mm ID x 146mm OD x 3.56mm Thk

Friction

2шт.

9

86536055

DRIVEN SPROCKET

31T, Includes: Ref. 25

1шт.

10

86636779

HUB

Clutch

1шт.

11

126-124

WOODRUFF KEY,#15, 1/4" x 1", HT

1шт.

12

86627126

WASHER,29.18mm ID x 51.56mm OD x 2.03mm Thk

2" OD

1шт.

13

633743

SPACER

1шт.

14

455112R11

COLLAR

Includes: Set Screw

1шт.

15

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

2шт.

16

664073R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

1шт.

17

86636673

HUB

RH

1шт.

18

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

19

492-11056

LOCK WASHER,9/16"

4шт.

22

86636900

SPACER

Twine Wrap Only

1шт.

23

673

WASHER,29mm ID x 41mm OD x 1.52mm Thk

Twine Wrap Only

1шт.

24

694478

WASHER,13.5mm ID x 57.15mm OD x 4.8mm Thk

Hardened, 1/2"

1шт.

25

49686

BUSHING,76mm ID x 82.68mm OD x 7.62mm L

1шт.
