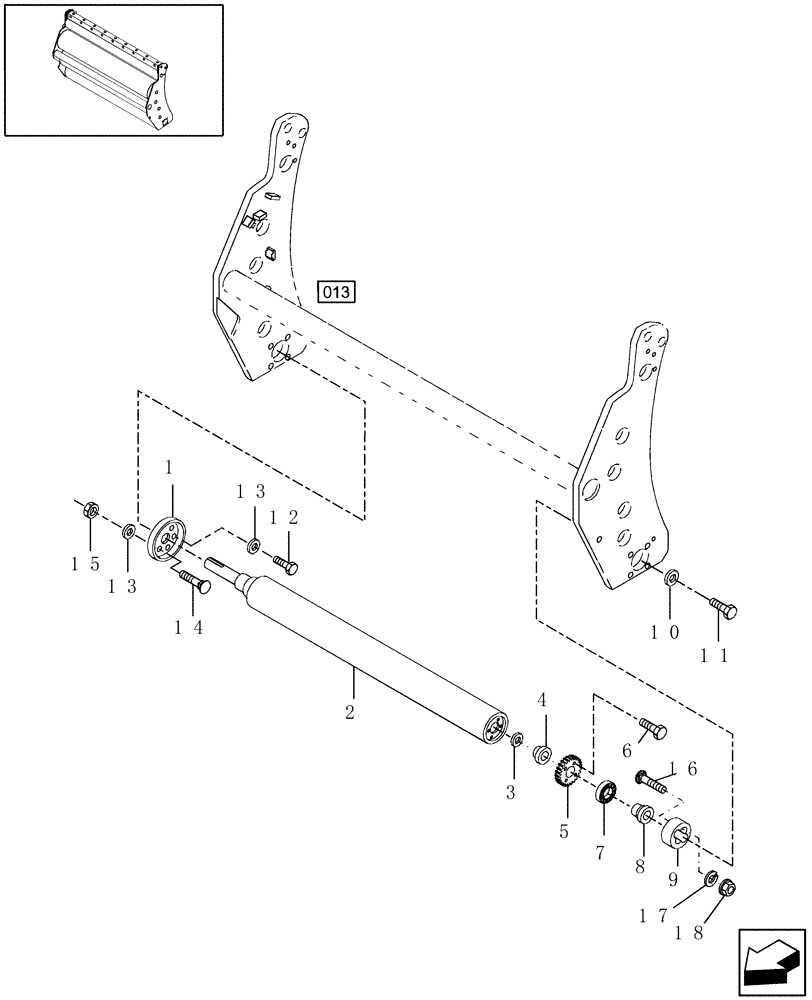

Запчасти Case IH RBX461 (021) - PIVOT ROLLER (62) - PRESSING - BALE FORMATION

1

86628106

SHIELD

1шт.

2

86637005

ROLLER

1шт.

3

100-11177

SNAP RING,#177, Ext

1шт.

4

9803325

SUPPORT

1шт.

5

86614686

GEAR

Roll, 24T, Includes: Ref. 7

1шт.

Bearing & Gear are Select-Fit, Components are N.S.S.

1шт.

6

61-33128

HEX SOC SCREW,5/16"-18 x 1 3/4"

All Units Except Silage Special

8шт.

6

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

HH, G5, 1/2"-13 x 2-1/2"

8шт.

7

NSS

NOT SOLD SEPARAT

Bearing

1шт.

Bearing & Gear are Select-Fit, Components are N.S.S.

1шт.

8

9803325

SUPPORT

1шт.

9

86636786

HUB

LH

1шт.

10

492-11056

LOCK WASHER,9/16"

1шт.

11

814-12060

BOLT,Hex, M12 x 1.75 x 60mm, Cl 8.8

1шт.

12

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

2шт.

13

492-11044

LOCK WASHER,7/16"

4шт.

14

811-10040

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 40mm, Cl 8.8

2шт.

15

825-1410

NUT,M10, Cl 8

2шт.

16

419-2620

PLOW BOLT,#3, 3/8" - 16 x 1 1/4", Gr 5

4шт.

17

492-11038

LOCK WASHER,3/8"

4шт.

18

232-4148

NUT,1/2"-13, GC

4шт.
