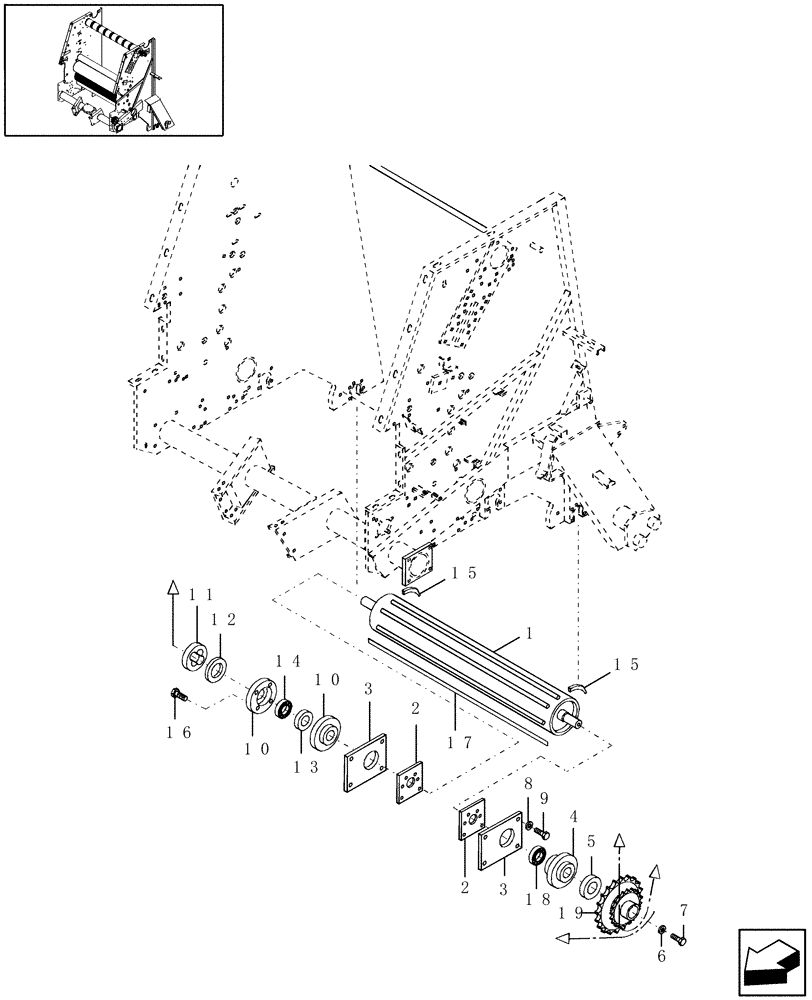

Запчасти Case IH RBX461 (020) - FLOOR ROLLER (62) - PRESSING - BALE FORMATION

1

86637240

ROLLER

Floor

1шт.

2

86636645

PLATE

Wear

2шт.

3

86637215

PLATE

2шт.

4

86636676

BEARING ASSY

Includes: Ref. 18

1шт.

Bearing & Housing are Select-Fit, Components are N.S.S.

1шт.

5

455112R11

COLLAR

Includes: Setscrew

1шт.

6

692300

WASHER,13.5mm ID x 50.8mm OD x 7.37mm Thk

2" OD x 3/16" Thk

1шт.

7

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

8

492-11044

LOCK WASHER,7/16"

4шт.

9

814-10060

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

10

86635012

FLANGE

Bearing

2шт.

11

86637012

RING

1шт.

12

86635211

RING

1шт.

13

517645R11

COLLAR

Locking, Includes: Set Screw

1шт.

14

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

1шт.

15

86637198

HALF-DISC

2шт.

16

614-16040

BOLT,Hex, M16 x 2 x 40mm, Cl 8.8, Full Thd

1шт.

17

9840158

KIT

Floor Roller Traction Tape, 3" x 44"

1шт.

18

NSS

NOT SOLD SEPARAT

1шт.

Bearing & Housing are Select-Fit, Components are N.S.S.

1шт.

19

86637270

DRIVEN SPROCKET

Wide Pickup

1шт.
