Запчасти Case IH RBX461 (016) - STARTER ROLLER (62) - PRESSING - BALE FORMATION

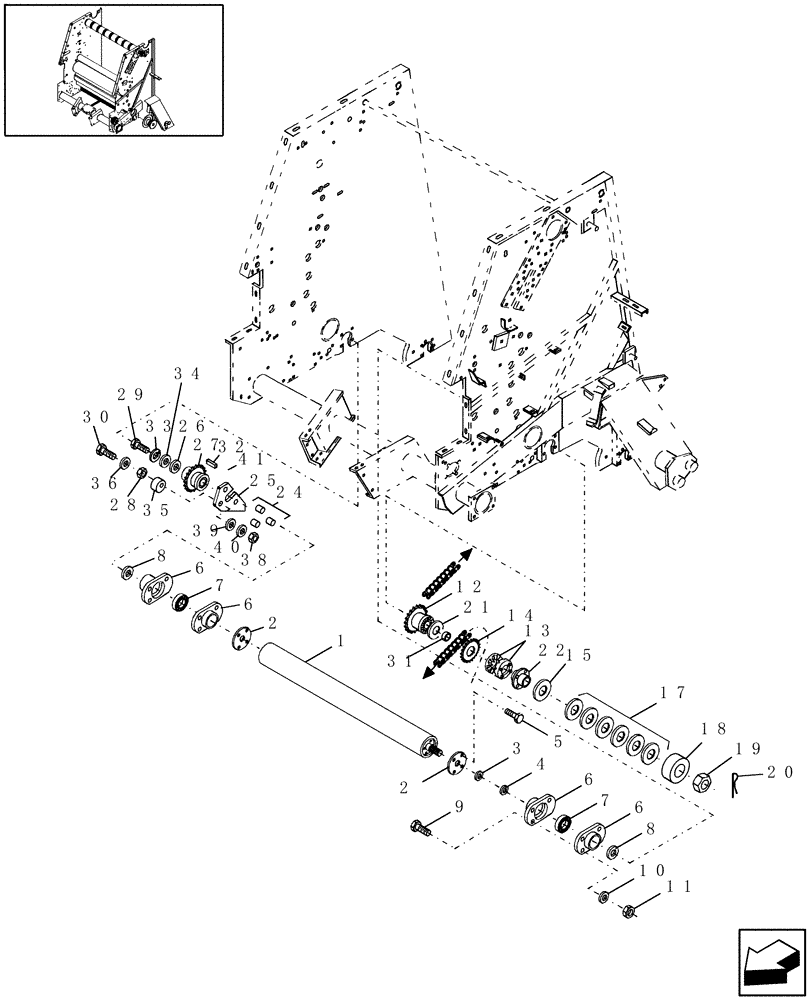

Схема запчастей Case IH RBX461 - (016) - STARTER ROLLER (62) - PRESSING - BALE FORMATION
29
6
12
15
27
35
22
13
11
26
36
8
2
7
6
25
17
41
10
38
9
20
39
32
40
14
8
2
5
6
19
33
4
18
3
1
24
31
28
6
7
21
30
34

Артикул

Название

Примечание

Количество

1

86637278

ROLLER

Starter

1шт.

2

86636760

RING

2шт.

3

86636675

WASHER,40mm ID x 51.2mm OD x 4mm Thk

Radiused

1шт.

4

196010

SHIM,.036" Thk

1шт.

5

274247

BOLT,Hex Flg, M10 x 16mm, Stainless

4шт.

6

86620027

FLANGED BEARING,80.02mm ID x 147.6mm OD x 4mm Thk

4шт.

7

664073R92

BALL BEARING,38.1mm ID x 80mm OD x 21mm W

2шт.

8

455112R11

COLLAR

Includes: Setscrew

2шт.

9

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

10

492-11056

LOCK WASHER,9/16"

4шт.

11

829-1412

NUT,M12, Cl 10.9

2шт.

12

86637256

DRIVING SPROCKET

1шт.

13

714379

CLUTCH

Jaw

2шт.

14

86637392

DRIVEN SPROCKET

20T, Includes Ref. 31

1шт.

15

263422

WASHER,53.18mm ID x 90.42mm OD x 1.52mm Thk

1шт.

16

166490

WASHER,51.6mm ID x 76.2mm OD x 3.68mm Thk

2", Heat Treated

1шт.

17

9822385

BELLEVILLE WASHER,52mm ID x 100mm OD x 3.3mm Thk

6шт.

18

86637290

SEALING RING COLLAR

1шт.

19

281042

SLOTTED NUT,1"-8

G2

1шт.

20

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

21

66849

WASHER,51.59mm ID x 76.2mm OD x 3.17mm Thk

Nylon, 2"

1шт.

22

86637257

HUB

1шт.

24

54055

SPACER

3шт.

25

86637253

SUPPORT

1шт.

26

694478

WASHER,13.5mm ID x 57.15mm OD x 4.8mm Thk

1/2", Heat Treated

1шт.

27

86637244

DRIVEN SPROCKET

22T

1шт.

28

86637167

WASHER,61.2mm ID x 71.8mm OD x 2.7mm Thk

2-13/16" OD, Heat Treated

2шт.

29

814-10040

BOLT,Hex, M10 x 1.5 x 40mm, Cl 8.8

1шт.

492-11044

LOCK WASHER,7/16"

1шт.

30

814-12070

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

3шт.

31

46962

BUSHING,2" ID x 2.13" OD x 1.25" L

1шт.

32

126-47

WOODRUFF KEY,#28, 5/16" x 2 1/8"

1шт.

33

492-11044

LOCK WASHER,7/16"

1шт.

34

26312

WASHER

1-1/2" OD

1шт.

35

86514717

IDLER WHEEL

1шт.

36

495-21044

WASHER,3/8"

1шт.

37

80679

LOCK WASHER,1/20.507 CST ZND

1шт.

38

829-1412

NUT,M12, Cl 10.9

1шт.

39

86611730

WASHER,38.9mm ID x 60.3mm OD x 3.68mm Thk

2-3/8" OD

1шт.

40

25494

WASHER,38.9mm ID x 50.8mm OD x 1.5mm Thk

2" OD

1шт.

Выбрано товаров: 40
