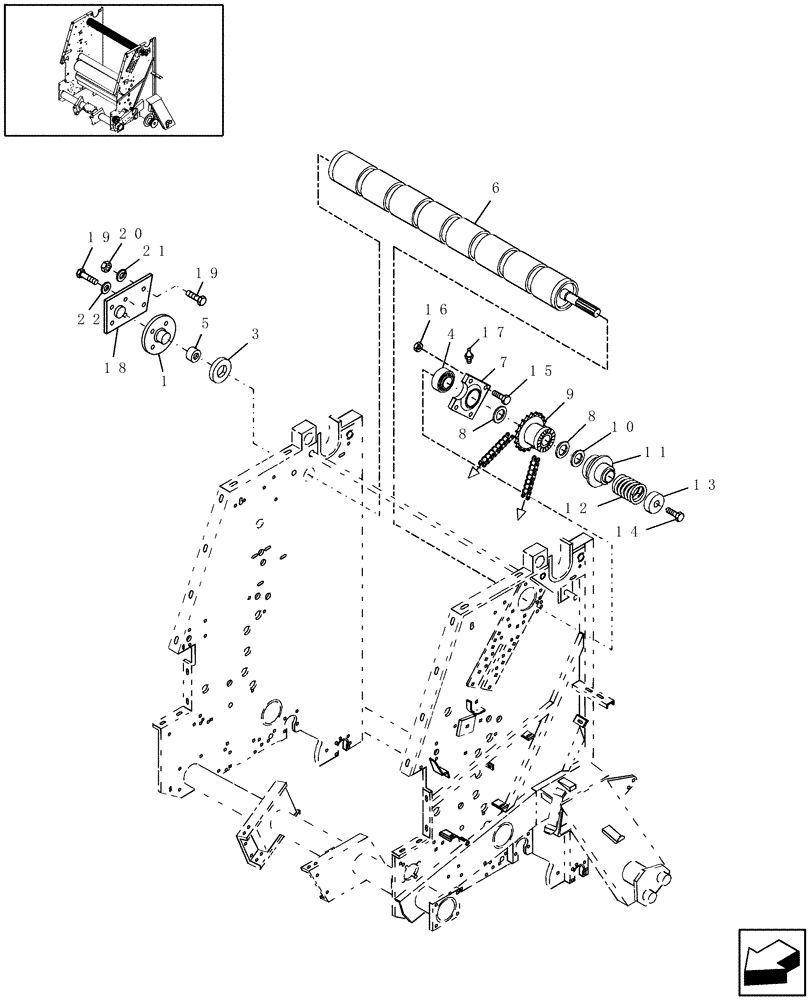

Запчасти Case IH RBX461 (015) - DRIVE ROLLER (62) - PRESSING - BALE FORMATION

1

86542445

SUPPORT

1шт.

3

9848489

BEARING ASSY,73 mm ID x 132.1976 mm OD x 38.10 mm, Round Bore

Includes: Ref. 5

1шт.

4

NSS

NOT SOLD SEPARAT

1шт.

Bearing & Housing are Select-Fit, Components are N.S.S.

1шт.

5

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

1шт.

6

86574943

ROLLER

Drive, Includes: Ref. 5

1шт.

7

9801709

FLANGE,106 mm ID x 154.5 mm OD x 46.5 mm

Includes: Ref. 4

1шт.

Bearing & Housing are Select-Fit, Components are N.S.S.

1шт.

8

9808110

WASHER,46mm ID x 60mm OD x 1.64mm Thk

Hardened, M45

2шт.

9

87032323

SPROCKET

Half & Sprocket, 22T

1шт.

10

100-11162

SNAP RING,#162, Ext

1шт.

11

87028608

CLUTCH

Half

1шт.

12

86640119

SPRING,Compression, 2.438" OD x 4.5" L

1шт.

13

9829364

CAP COVER

1шт.

14

9849862

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

HH, Drilled, G5, 1/2"-13 x 1-1/2"

1шт.

15

811-10030

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 30mm, Cl 8.8

2шт.

16

825-1410

NUT,M10, Cl 8

2шт.

17

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

1шт.

18

86538519

PLATE

1шт.

19

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

6шт.

20

825-1410

NUT,M10, Cl 8

2шт.

21

140045

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

2шт.

22

145788

WASHER,10.32mm ID x 22.23mm OD x 3.5mm Thk

Hardened, 3/8"

4шт.
