(014) - SLEDGE FOLLOWER ROLLER

Запчасти Case IH RBX461 (014) - SLEDGE FOLLOWER ROLLER (62) - PRESSING - BALE FORMATION

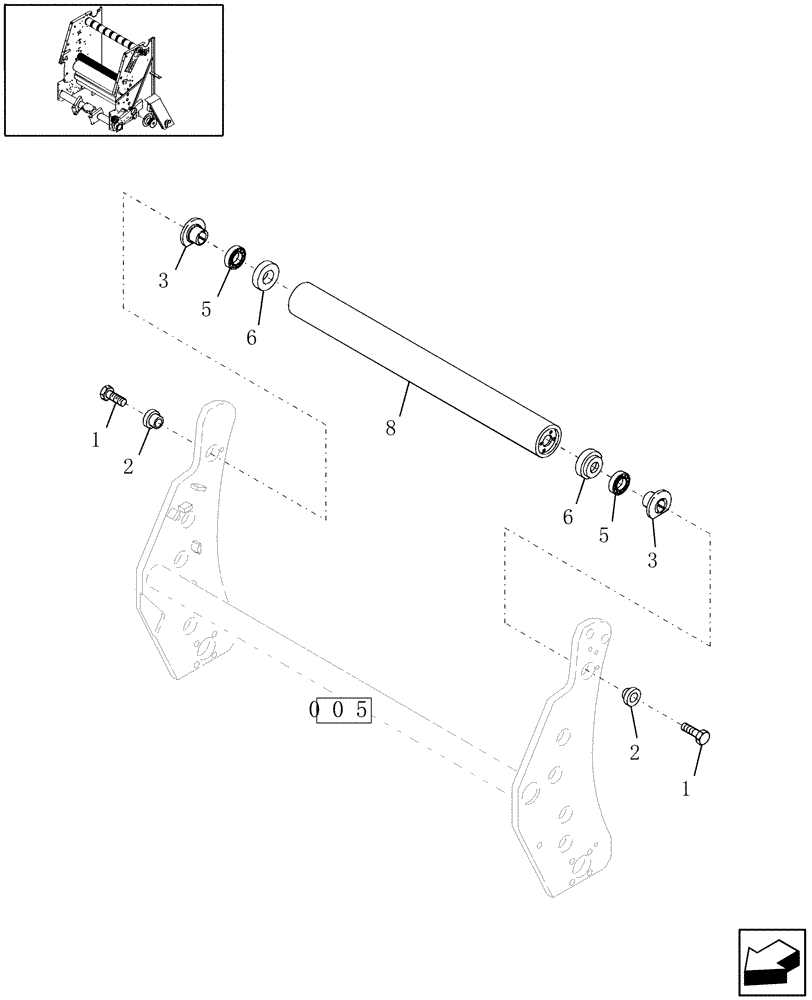

Схема запчастей Case IH RBX461 - (014) - SLEDGE FOLLOWER ROLLER (62) - PRESSING - BALE FORMATION
5
005
3
1
3
5
6
6
2
1
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

827-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

2шт.

2

87030468

HUB

2шт.

3

86553395

SUPPORT

2шт.

5

86548282

BALL BEARING,29.41mm ID x 90mm OD x 30.2mm W, Square Bore

2шт.

6

86553396

BEARING ASSY,30.23mm ID x 90mm OD x 30.2mm W, SQUARE BORE

Includes: Ref. 5

2шт.

8

86565877

ROLLER

5.56", Includes: (2) Ref. 6

1шт.
