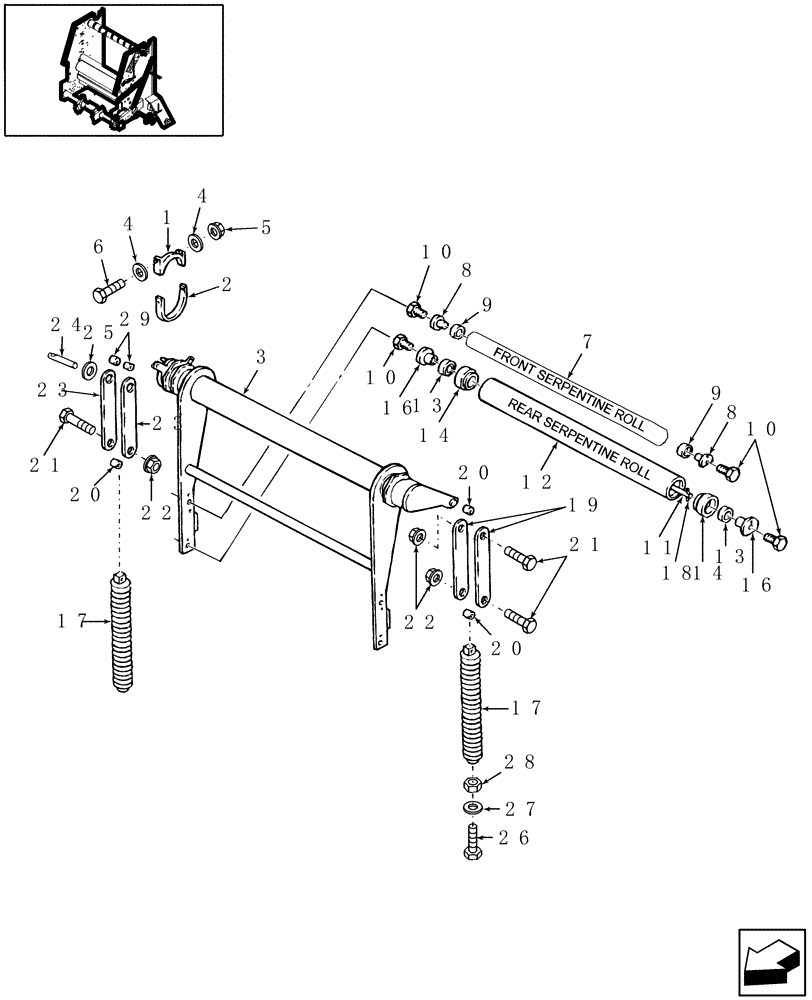

Запчасти Case IH RBX461 (012) - TAKE-UP ARM, SPRINGS & SERPENTINE ROLLER (62) - PRESSING - BALE FORMATION

1

86636552

BEARING CAP

1шт.

2

9617265

BAND

2шт.

3

86978168

ARM

Take Up

1шт.

4

86511324

WASHER,13mm ID x 24mm OD x 2.5mm Thk

8шт.

5

832-46412

NUT,M12 x 1.75, Cl 8

4шт.

6

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

4шт.

7

9842288

ROLLER,88.9mm OD x 1142mm L

3.50"

1шт.

7

86611236

ROLLER,101.6mm OD x 1142mm L

Rubber Covered for Silage

1шт.

8

86516321

SUPPORT

2шт.

9

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

4шт.

10

86627635

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9

Cap, HH, CL8.8, M12 x 30, 6.5 Head Height

4шт.

11

9823372

SHAFT,1135mm L

Includes: (2) Ref. 18

1шт.

12

86500663

ROLLER,114.3mm OD x 1145mm L

4.50", Includes: Ref. 14

1шт.

14

86500662

BEARING ASSY

2шт.

13

8050825

BEARING, ROLLER, CYL,38.1 mm ID x 80 mm OD x 30.163 mm

2шт.

15

614-12030

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

16

86516322

SUPPORT

2шт.

17

NSS

NOT SOLD SEPARAT

Spring, Refer to Fig. 030

2шт.

18

838-5526

LOCK PIN,M5 x 26, Slotted

10шт.

19

86978164

LINK,520mm L

2шт.

20

86636659

SPACER,10.28mm ID x 15.85mm OD x 21.84mm L

3шт.

21

814-10050

BOLT,Hex, M10 x 1.5 x 50mm, Cl 8.8

3шт.

22

832-46410

NUT,M10 x 1.5, Cl 8

3шт.

23

86637229

LINK,489mm L

2шт.

24

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

25

495-11106

WASHER,1", SAE

2шт.

26

633038

THREADED ROD,3/4" - 10 x 11-1/2" L

2шт.

27

495-21081

WASHER,3/4"

2шт.

28

425-1012

NUT,3/4"-10, G5

2шт.

29

32406

SPACER,25.9mm ID x 31.5mm OD x 16.8mm L

2шт.
