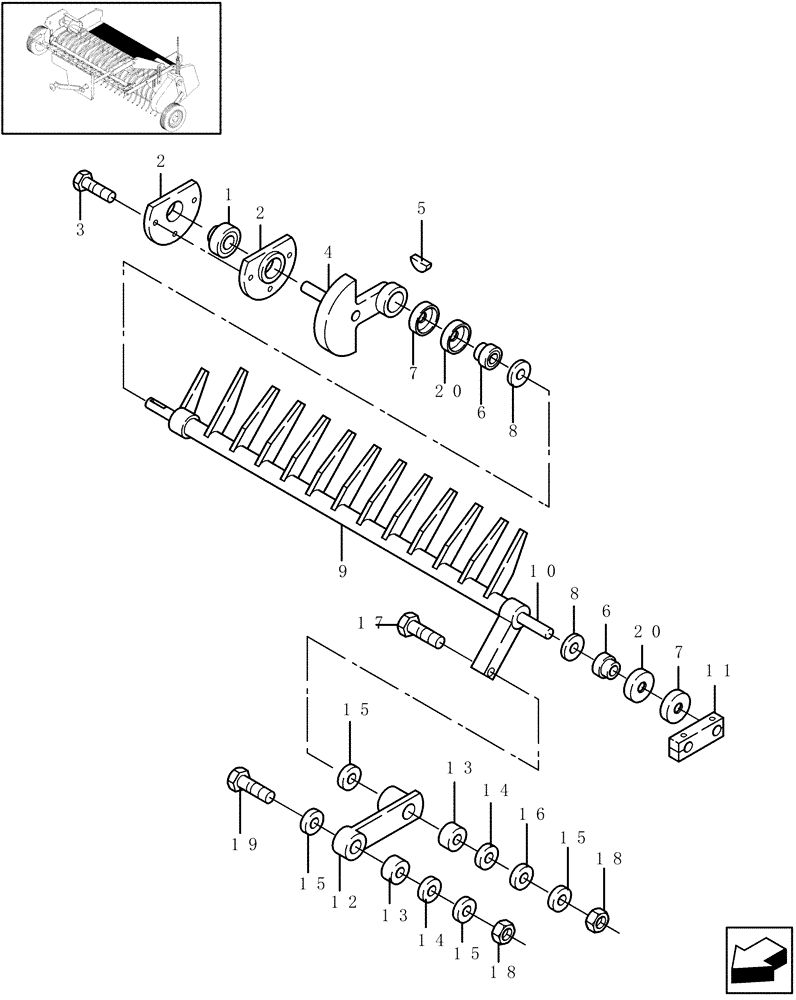

Запчасти Case IH RBX461 (083) - WIDE PICKUP, FEEDER (60) - PRODUCT FEEDING

1

617667R92

BALL BEARING,31.75mm ID x 62mm OD x 18mm W

1шт.

2

86636169

FLANGED BEARING

Bearing

2шт.

3

905-10020

BOLT,Hex Flg, M10 x 20mm

3шт.

4

86634610

COUNTERWEIGHT

1шт.

5

126-24

WOODRUFF KEY,#15, 1/4" x 1"

2шт.

6

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

2шт.

7

86636651

COVER

2шт.

8

178514

WASHER

Plastic, 1"

2шт.

9

86634561

FEEDER

1шт.

10

86509398

SHAFT

1шт.

11

86634609

ARM

1шт.

12

86634527

ARM

Includes: Ref. 13 & 14

1шт.

13

T39594

BALL BEARING,0.7505" ID x 1.7805" OD x 0.61"

2шт.

14

100-21175

SNAP RING,1.75", Int, #175

2шт.

15

87644323

SPACER,19.18mm ID x 28.54mm OD x 7.75mm Thk

4шт.

16

600083

WASHER,19.3mm ID x 28.7mm OD x 1.36mm Thk

1-1/4" OD

1шт.

17

413-1248

BOLT,Hex, 3/4" - 10 x 3", Gr 5

1шт.

18

232-41412

LOCK NUT,3/4"-10, GC

2шт.

19

413-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 5

1шт.

20

455102R21

COLLAR

1шт.
