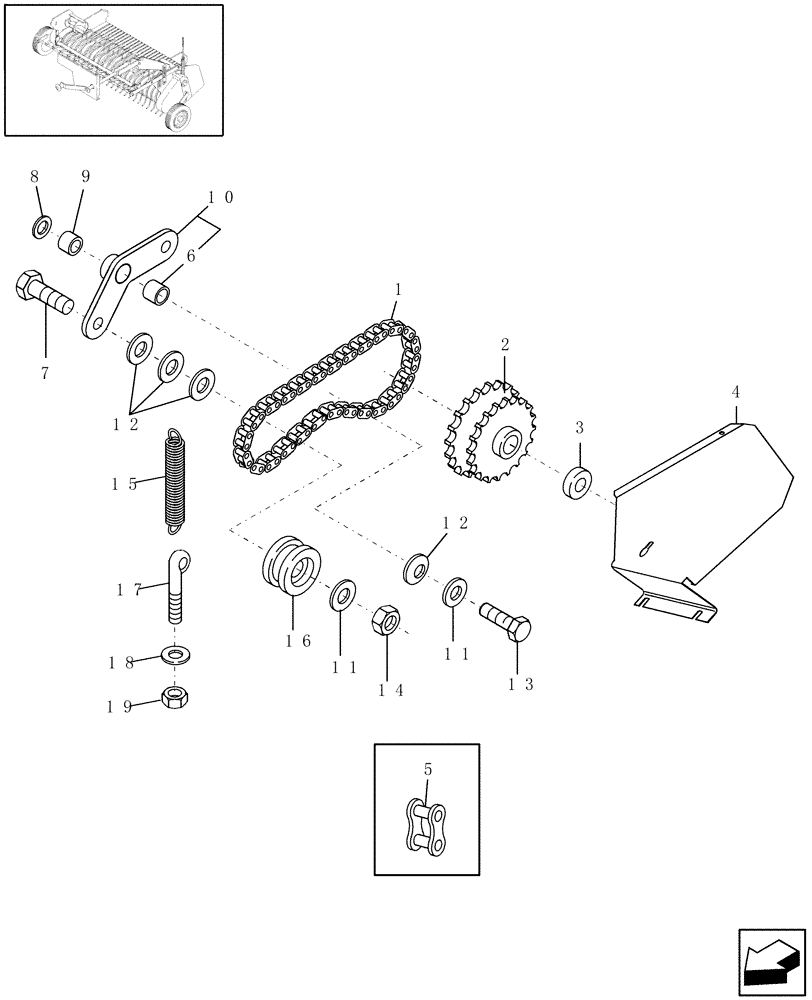

Запчасти Case IH RBX461 (081) - WIDE PICKUP, ROLLER CHAIN (60) - PRODUCT FEEDING

1

86549194

CHAIN,60, 62 Links x 19.05mm = 1181.1mm

#60, 3/4"-pitch, 62 Pitches, Chrome, Includes: (1) Ref. 5

1шт.

2

86637270

DRIVEN SPROCKET

1шт.

3

692300

WASHER,13.5mm ID x 50.8mm OD x 7.37mm Thk

2" OD x 3/16" Thk

1шт.

4

86619214

SHIELD

1шт.

5

86537477

LINK,19.05mm Pitch

RC60

1шт.

6

40293

BUSHING,19mm ID x 22.25mm OD x 25.4mm L

.752" ID x .875" OD x 1.000" Lg.

1шт.

6

87040968

BUSHING

.752" ID x .875" OD x .750" Lg.

1шт.

7

811-12060

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

1шт.

8

600083

WASHER,19.3mm ID x 28.7mm OD x 1.36mm Thk

1шт.

9

86631123

SPACER,12.95mm ID x 19.05mm OD x 27mm L

1-1/16" Lg

1шт.

10

86636654

ARM

1шт.

11

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

2шт.

12

495-11053

WASHER,1/2", SAE

4шт.

13

814-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 8.8

1шт.

14

829-1412

NUT,M12, Cl 10.9

1шт.

15

86566303

SPRING

1шт.

16

86550790

IDLER WHEEL,90mm OD

Chain

1шт.

17

616723

EYEBOLT

G2, 3/8"-16 x 5"

1шт.

18

9827956

WASHER,10.3mm ID x 25.4mm OD x 2.67mm Thk

1" OD, Heat Treated

1шт.

19

425-106

NUT,3/8"-16, Cl 5

1шт.
