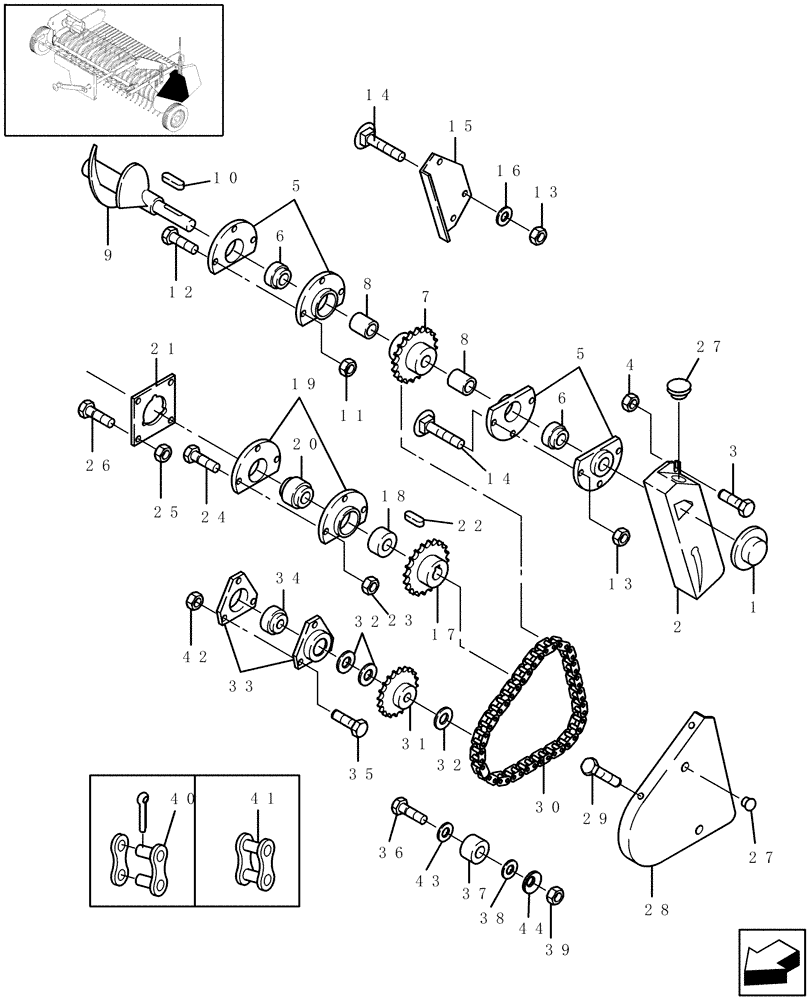

Запчасти Case IH RBX461 (079) - WIDE PICKUP, LH DRIVES (60) - PRODUCT FEEDING

1

86639836

COVER

1шт.

2

86634556

SUPPORT ASSY.

LH

1шт.

3

811-10020

CARRIAGE BOLT,Sht Sq Nk, M10 x 1.5 x 20mm, Cl 8.8

3шт.

4

825-51410

FLANGE NUT,M10, Flg Ser

3шт.

5

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

Bearing

4шт.

6

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

2шт.

7

86636650

DRIVEN SPROCKET

17T

1шт.

8

455102R21

COLLAR

2шт.

9

86636663

AUGER

LH

1шт.

10

86628576

KEY

1/4" Sq., x 1-1/4"

1шт.

11

825-5148

SERRATED NUT,M8, Flg Ser

3шт.

12

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

3шт.

14

811-8030

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 30mm, Cl 8.8

6шт.

15

86628306

FILLER

LH

1шт.

16

285072

WASHER,10.3mm ID x 22.2mm OD x 2.7mm Thk

(3/8")

1шт.

17

86637156

DRIVEN SPROCKET

22T

1шт.

18

455102R21

COLLAR

1шт.

19

86603075

FLANGE,Bearing, 52.01 mm ID x 95.3 mm OD x 8.7 mm

Bearing

2шт.

20

204807C91

BEARING ASSY,25.4mm ID x 52mm OD x 15mm W

1шт.

21

86636899

MOUNTING PLATE

1шт.

22

126-24

WOODRUFF KEY,#15, 1/4" x 1"

1шт.

23

825-5148

SERRATED NUT,M8, Flg Ser

3шт.

24

811-8020

CARRIAGE BOLT,Sht Sq Nk, M8 x 1.25 x 20mm, Cl 8.8

3шт.

25

825-51410

FLANGE NUT,M10, Flg Ser

4шт.

26

905-10020

BOLT,Hex Flg, M10 x 20mm

4шт.

27

87028747

PLUG

Plastic, for 1" Dia. Hole

1шт.

28

86619277

SHIELD

1шт.

29

381014

SCREW,Flng, M8 x 16mm

HWH, M8 x 1.25 x 16

4шт.

30

309046

CHAIN,#50, 96 Links x 15.88mm = 1524mm

RC50, 96 Pitches, Includes: (2) Ref. 41 & (1) 42472 Connector Link

1шт.

31

86637251

DRIVEN SPROCKET

44T

1шт.

32

9800957

WASHER,35.81mm ID x 50.8mm OD x 1.52mm Thk

1шт.

33

86620026

FLANGED BEARING

2шт.

34

121602

BALL BEARING,28.6mm Hex x 72mm OD x 37.7mm W

1шт.

35

905-10020

BOLT,Hex Flg, M10 x 20mm

3шт.

36

811-12060

CARRIAGE BOLT,Sht Sq Nk, M12 x 1.75 x 60mm, Cl 8.8

1шт.

495-21069

WASHER,5/8"

1шт.

37

86514717

IDLER WHEEL

Eccentric, Nylon

1шт.

38

140046

BELLEVILLE WASHER,M12 Bolt Size x 27mm OD x 1.8mm Thk

1шт.

39

829-1412

NUT,M12, Cl 10.9

1шт.

40

25194

CONNECTING LINK

RC50, Spring Clip Type

1шт.

41

25816

OFFSET LINK

RC50

1шт.

42

825-51410

FLANGE NUT,M10, Flg Ser

3шт.

43

495-21069

WASHER,5/8"

1шт.

44

29684

WASHER,13.5mm ID x 50.8mm OD x 5.52mm Thk

17/32" ID x 2" OD x 3/16" Thk

1шт.
